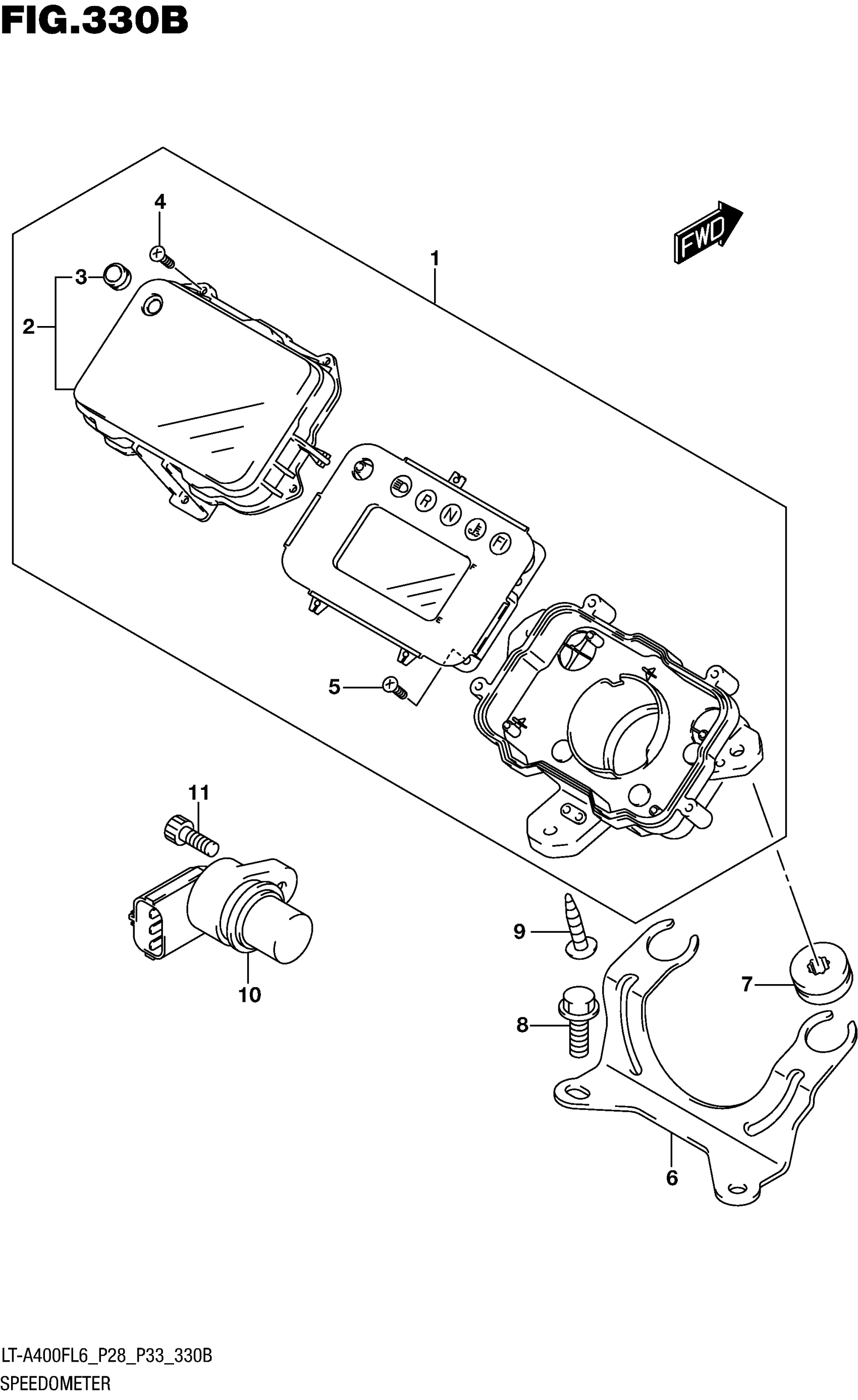

Suzuki LT-A400FL6 (2016) SPEEDOMETER (LT-A400FL6 P33) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-27HB0

$203.05

2

.CASE, UPPER

34150-27HA0

$99.38

3

..SWITCH, RUBBER

34124-03GE0

Unavailable

4

.SCREW (3X12)

34183-09F00

$1.79

5

.SCREW (3X12)

34184-27EE0

Unavailable

6

BRACKET,SPEEDOMETER

34162-27H00

$122.52

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

8

BOLT

01550-0616A

$1.97

9

SCREW

03541-0516A

$1.37

10

SENSOR,SPEED

34990-27H00

$154.52

11

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38
