2016 Suzuki LT-A400FL6 Front Lamp Housing Diagram

← All diagrams

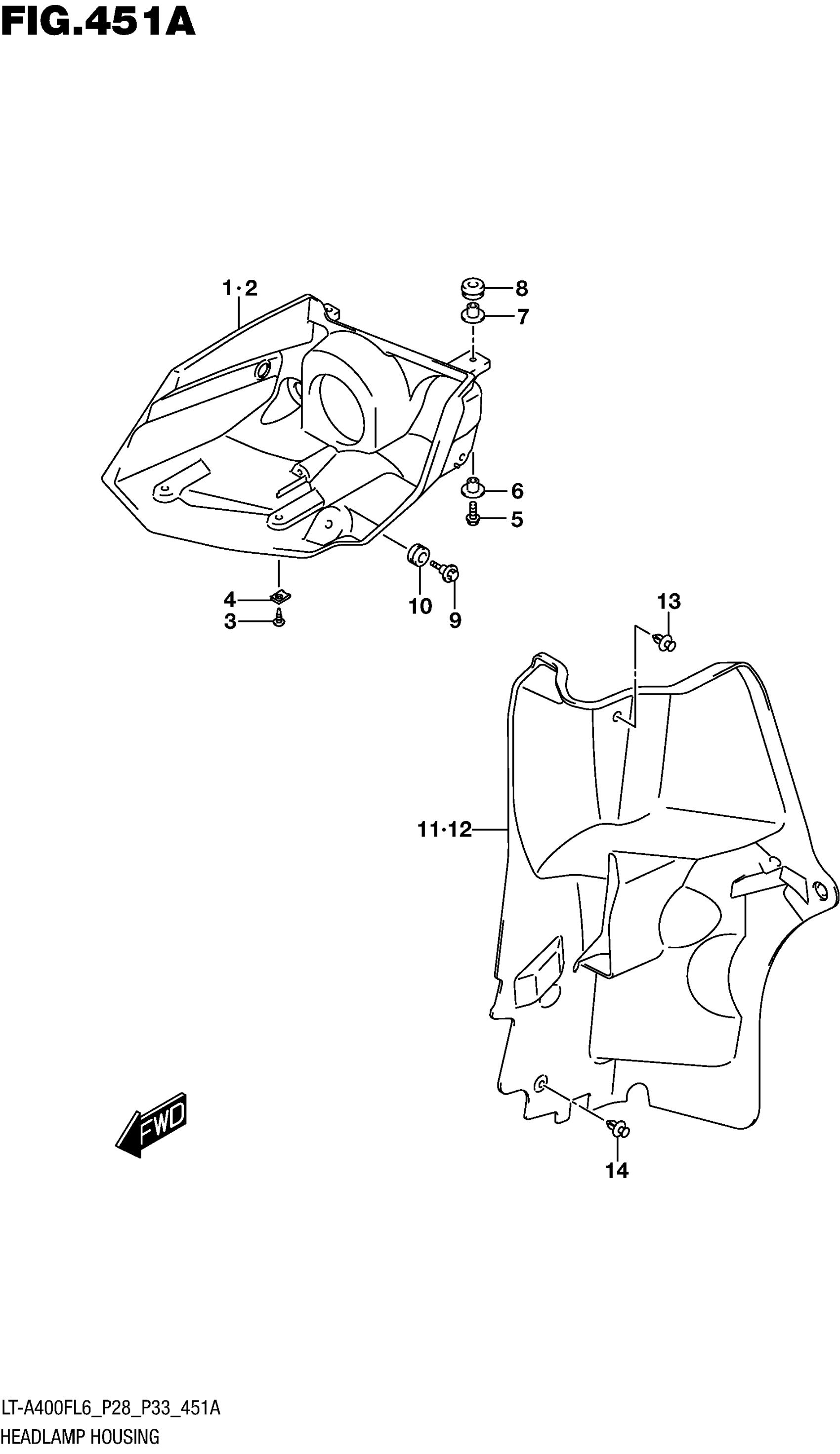

Find the part on the Front Lamp Housing diagram for your 2016 Suzuki LT-A400FL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A400FL6 Front Lamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING,FRONT LAMP,R (BLACK) This part replaces 53281-27H01-291.

53281-27H02-291

1
Out of stock

2

HOUSING,FRONT LAMP,L (BLACK) This part replaces 53284-27H01-291.

53284-27H02-291

1
Out of stock

3

SCREW

03541-0516A

6
Out of stock

4

NUT

09148-05038

6
Out of stock

5

BOLT

01550-0630A

2
Out of stock

6

WASHER

09169-06073

2
Out of stock

7

WASHER

09169-06074

2
Out of stock

8

CUSHION (11.5X32X12.2)

09320-11021

2
Out of stock

9

SCREW (6X22.5)

09139-06118

2
Out of stock

10

CUSHION

09320-10501

2
Out of stock

11

MUDFLAP,FENDER INNER,R This part replaces 53411-27H00.

53411-27H01

1
Out of stock

12

MUDFLAP,FENDER INNER,L This part replaces 53421-27H00.

53421-27H01

1
Out of stock

13

CLIP

09409-07333

2
Out of stock

14

CLIP

09409-08335

2
Out of stock
