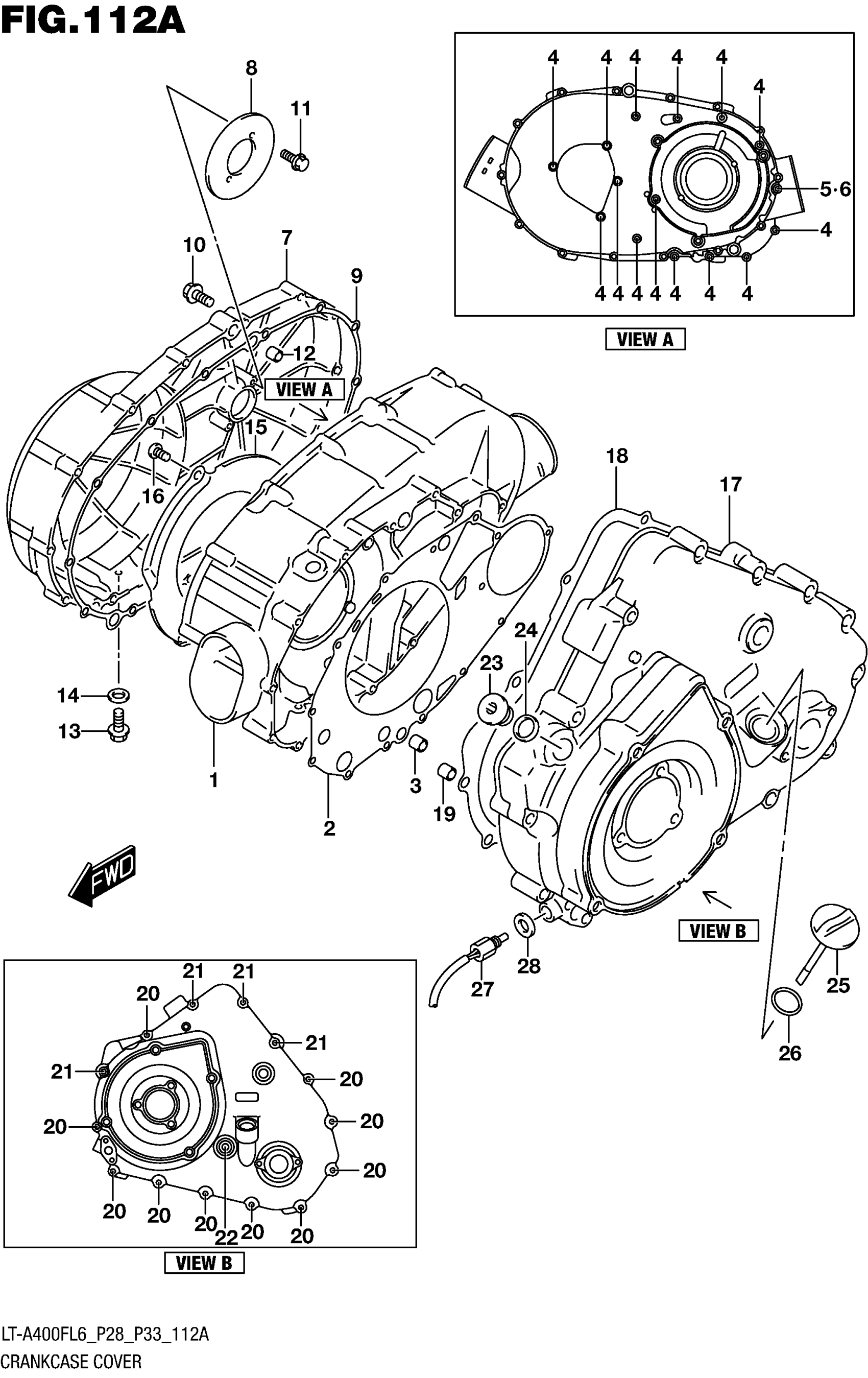

Suzuki LT-A400FL6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-38F00

$431.67

2

GASKET, CLUTCH COVER (NA)

11482-38F00

$21.96

3

PIN

04211-13189

$2.19

4

BOLT

01547-0640A

$2.32

5

BOLT

01547-0680A

$3.30

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

COVER,V-BELT

11371-27H00

$460.65

8

PLATE,V-BELT COVER

11372-27H00

Unavailable

9

GASKET, V-BELT COVER (NA)

11484-38F00

$49.89

10

BOLT

01547-0635A

$2.30

11

BOLT

01547-0616A

$2.03

12

PIN

04211-13189

$2.19

13

BOLT (8X12)

01550-0812A

$2.32

14

GASKET (8.2X16X1)

09168-08029

$2.32

15

PLATE,AIR INTAKE

11343-38F00

$13.85

16

SCREW

02112-0612A

$1.49

17

COVER, MAGNETO

11351-27H40

$368.05

18

GASKET, MAGNETO COVER (NA)

11483-27H00

$23.83

19

PIN

04211-13189

$2.19

20

BOLT

01547-0640A

$2.32

21

BOLT

01547-0650A

$2.46

22

BOLT (8X140)

09103-08040

$5.52

23

PLUG (16X8)

09248-16012

$4.64

24

GASKET (16X22X2)

09168-16002

$1.91

25

GAUGE,OIL LEVEL

11971-38F00

$9.78

26

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

27

SENSOR,ENGINE TEMP This part replaces 13640-32G00.

13640-32G01

$50.65

28

GASKET (8.2X14X1)

09168-08016

$1.65
