Partiron

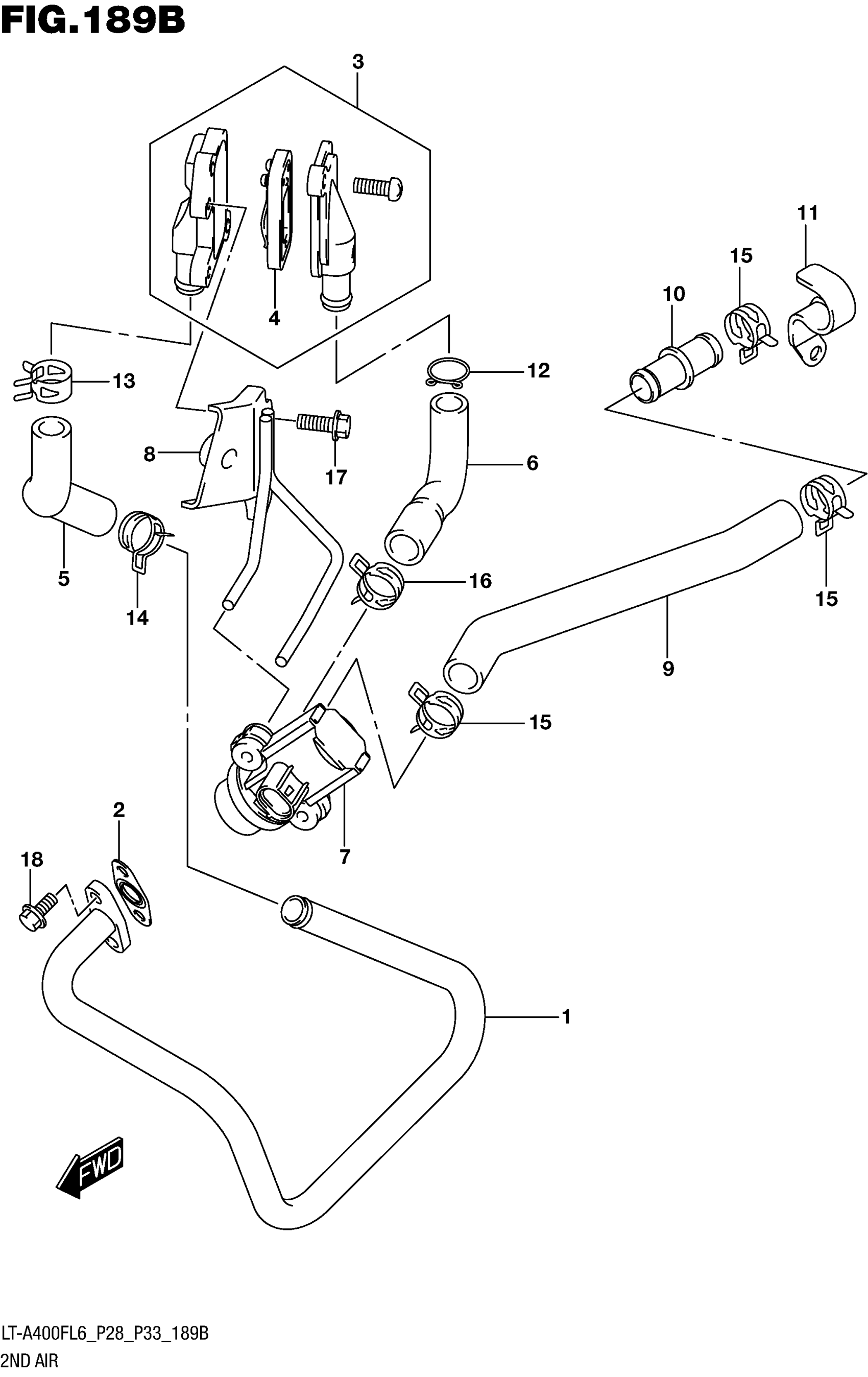

Suzuki LT-A400FL6 (2016) 2ND AIR (LT-A400FL6 P33) Diagram

#

Description
Price

1

PIPE COMP, 2ND AIR

18410-27H00

$57.32

2

GASKET, 2ND AIR PIPE

18441-27H00

$7.08

3

VALVE ASSY, 2ND AIR

18450-27H00

$60.30

4

.VALVE ASSY,2ND AIR REED

18450-06G00

$36.82

5

HOSE, 2ND AIR VALVE

18461-27H00

Unavailable

6

HOSE, 2ND AIR SWITCHING VALVE

18481-27H00

Unavailable

7

VALVE ASSY,AIR CUT

18510-29G50

$101.05

8

BRACKET COMP, 2ND AIR VALVE

18610-27H00

$24.38

9

HOSE, 2ND AIR CLEANER

18711-27H00

$13.55

10

JOINT, 2ND AIR CLEANER HOSE

18713-39G00

Unavailable

11

GUIDE, 2ND AIR CLEANER HOSE

18715-27H00

Unavailable

12

CLIP

09401-15101

$2.26

13

CLIP

09401-16403

$2.83

14

CLIP

09401-16407

$2.44

15

CLIP

09401-16407

$2.44

16

CLIP

09401-16407

$2.44

17

BOLT

01547-0612A

$2.03

18

BOLT

01547-0616A

$2.03
