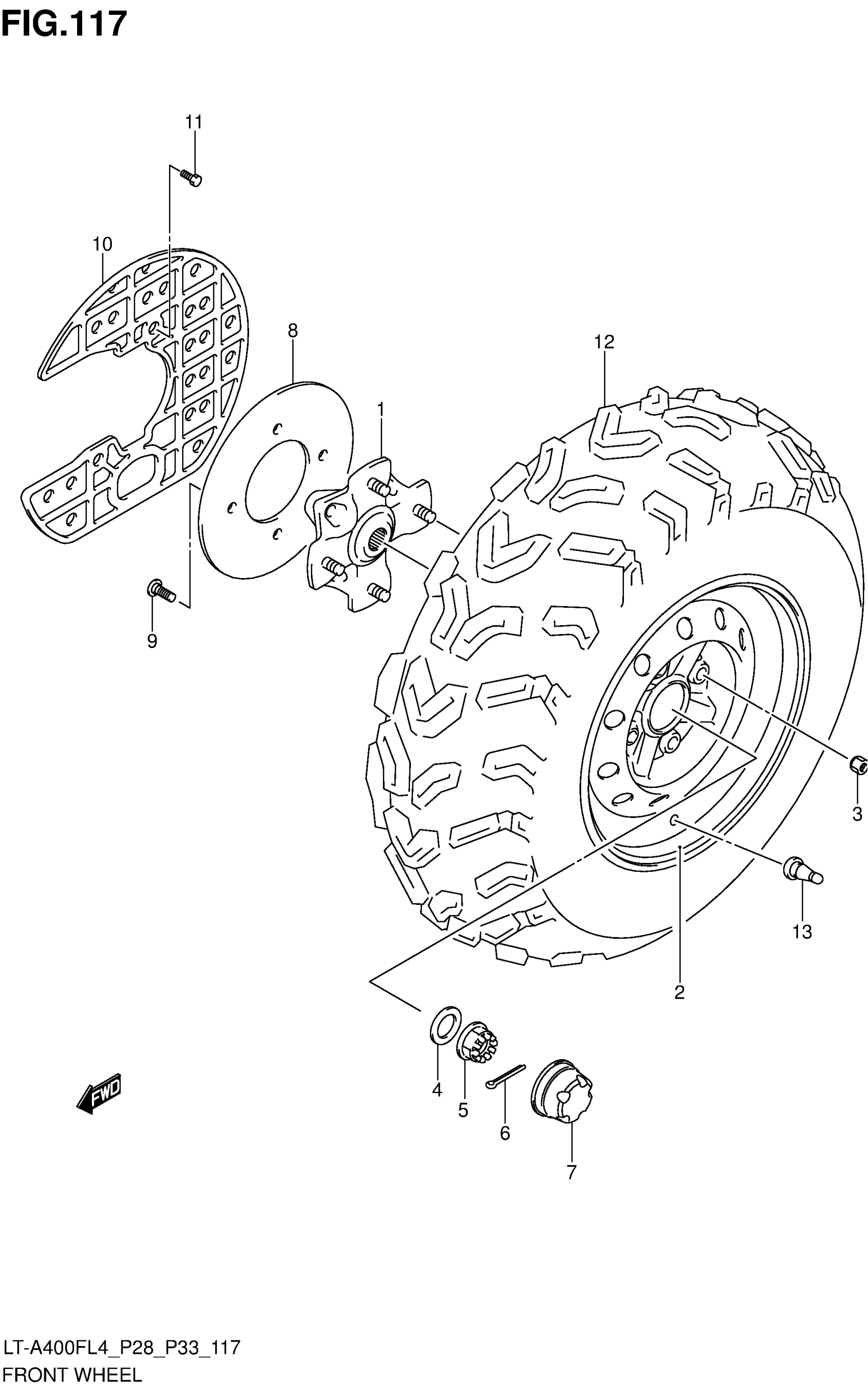

Suzuki LT-A400FL4 (2014) FRONT WHEEL (LT-A400FL4 P33) Diagram

#

Description
Price

1

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

$99.40

2

RIM, FRONT WHEEL (12X6.0AT) (BLACK)

55310-38F30-291

$181.39

3

NUT

09140-10021

$2.03

4

WASHER

09164-18004

$3.76

5

NUT

09141-18010

$10.11

6

COTTER PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

DISC,FRONT BRAKE

59211-38F20

$46.75

9

BOLT (8X21)

09106-08160

$3.57

10

COVER,FRONT DISC

59231-27H00

$36.63

11

SCREW (6X16)

09139-06158

$4.90

12

TIRE,FRONT (AT25X8-12) This part replaces 55110-38FC0.

55110-31G30

$300.50

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
