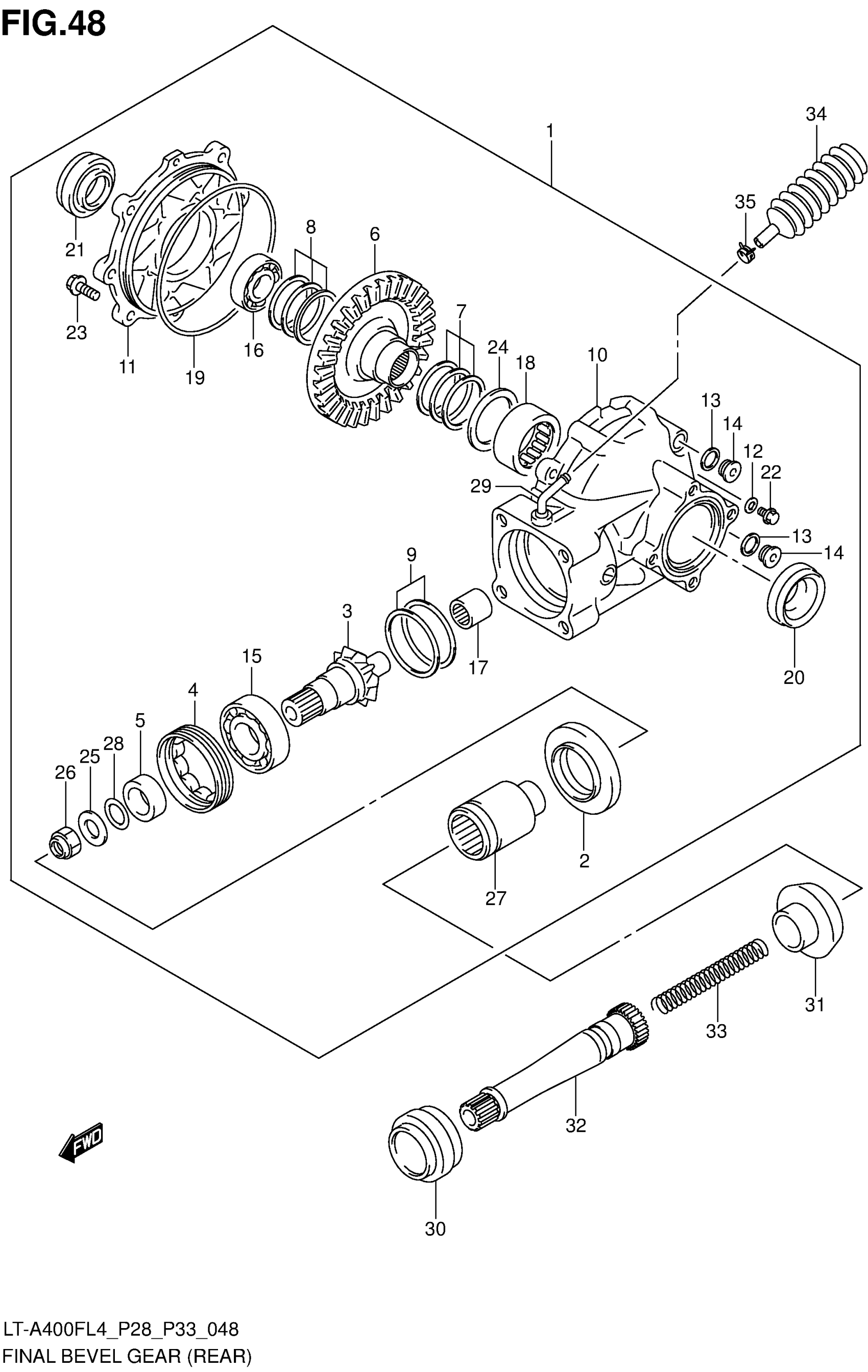

Suzuki LT-A400FL4 (2014) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL

27410-38F50

$1,706.95

2

SEAL, FINAL DRIVEN BRG OIL

27156-27H00

$33.73

3

GEAR, FINAL DRIVEN

27311-27HM0

$290.53

4

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

5

SPACER, REAR FINAL DRIVEN

27316-38FM0

$27.40

6

GEAR, FINAL DRIVEN

27321-27HM0

$348.92

7

SHIM SET, FINAL DRIVEN GEAR | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$15.27

8

SHIM SET, FINAL DRIVEN GEAR | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$15.00

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

10

CASE, RR FINAL GR

27450-27HM0

$684.15

11

CASE, RR FINAL DRIVEN, RH

27461-38FM0

Unavailable

12

GASKET (6.2X13X1.2)

09168-06018

$1.77

13

GASKET (16X22X2)

09168-16002

$1.91

14

PLUG (16X8)

09248-16012

$4.64

15

BEARING, FINAL DRIVEN GEAR

27405-38FN0

$86.82

16

BEARING, FINAL DRIVEN, RH

27405-38FP0

$113.25

17

BEARING, FINAL DRIVEN PILOT

27405-38FR0

$62.48

18

BEARING, FINAL DRIVEN, LH

27405-38FS0

$72.73

19

O RING, BEARING CASE, RH

27405-38FT0

$16.65

20

OIL SEAL (38X54X6)

09283-38009

$17.33

21

OIL SEAL (42X62X7)

09283-42011

$12.61

22

BOLT, OIL CHECK

27401-38FM0

$3.70

23

BOLT, RR FINAL GR

27401-38FN0

Unavailable

24

WASHER, FINAL DRIVEN, LH

27407-38FN0

$9.67

25

WASHER (16X30X3)

09160-16026

$5.00

26

NUT

09159-16003

$4.00

27

COUPLING, RR FINAL

27171-27HM0

$227.05

28

O RING, COUPLING

27405-27HM0

$41.63

29

UNION

09364-08009

$9.50

30

BOOT,RR PROP SHAFT This part replaces 27153-27H00.

27153-27H01

$4.60

31

BOOT,JOINT SHAFT This part replaces 27153-27H20.

27153-27H21

$10.73

32

SHAFT,REAR PROPELLER

27155-27H10

$62.59

33

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.98

34

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

35

CLIP

09401-08411

$1.78
