2013 Suzuki LT-A400FL3 Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2013 Suzuki LT-A400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

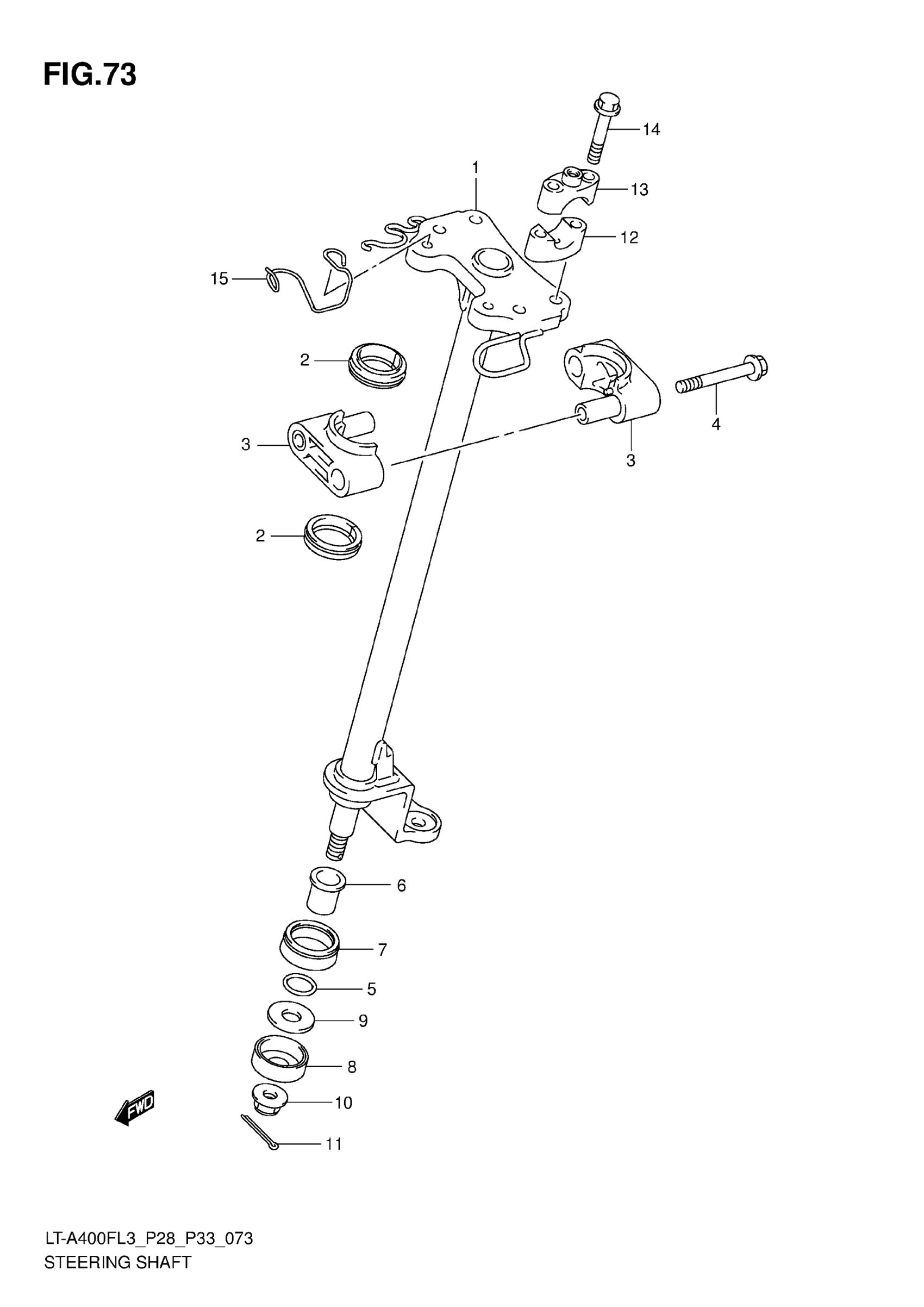

2013 Suzuki LT-A400FL3 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT STEERING This part replaces 51650-27H00.

51650-27H10

1
Out of stock

2

SEAL, STEERING SHAFT HLDR DUST

51678-24500

2
Out of stock

3

HOLDER,STEERING SHAFT

51670-24500

2
Out of stock

4

BOLT

01550-0875A

2
Out of stock

5

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

6

BUSH, STEERING SHAFT LOWER

51661-09F00

1
Out of stock

7

SEAL,DUST This part replaces 51662-05G00.

51662-05G01

1
Out of stock

8

SEAL,DUST This part replaces 51663-05G00.

51663-05G01

1
Out of stock

9

WASHER (12.5X30X3)

09160-12103

1
Out of stock

10

NUT

08319-3112B

1
Out of stock

11

COTTER PIN

04111-2020A

1
Out of stock

12

CLAMP, HANDLEBAR LOWER (BLACK)

56211-21G00-291

2
Out of stock

13

HOLDER, HANDLE (BLACK) This part replaces 56211-29900-291.

56211-29900

2
Out of stock

14

BOLT

01550-0850A

4
Out of stock

15

GUIDE, FRONT BRAKE HOSE NO.1

59243-38F00

1
Out of stock
