Description

Price

1

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

$94.63

2

RIM, FRONT WHEEL (12X6.0AT) (BLACK)

55310-38F30-291

$175.97

3

NUT

09140-10021

$2.09

4

WASHER

09164-18004

$3.49

5

NUT

09141-18010

$9.54

6

COTTER PIN

04111-4035A

$1.41

7

CAP,WHEEL CENTER

54725-09F01

$9.53

8

DISC,FRONT BRAKE

59211-38F20

$44.72

9

BOLT (8X21)

09106-08160

$3.32

10

COVER,FRONT DISC

59231-27H00

$41.35

11

SCREW (6X16)

09139-06158

$4.55

12

TIRE,FRONT (AT25X8-12) This part replaces 55110-38FC0.

55110-31G30

$331.18

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

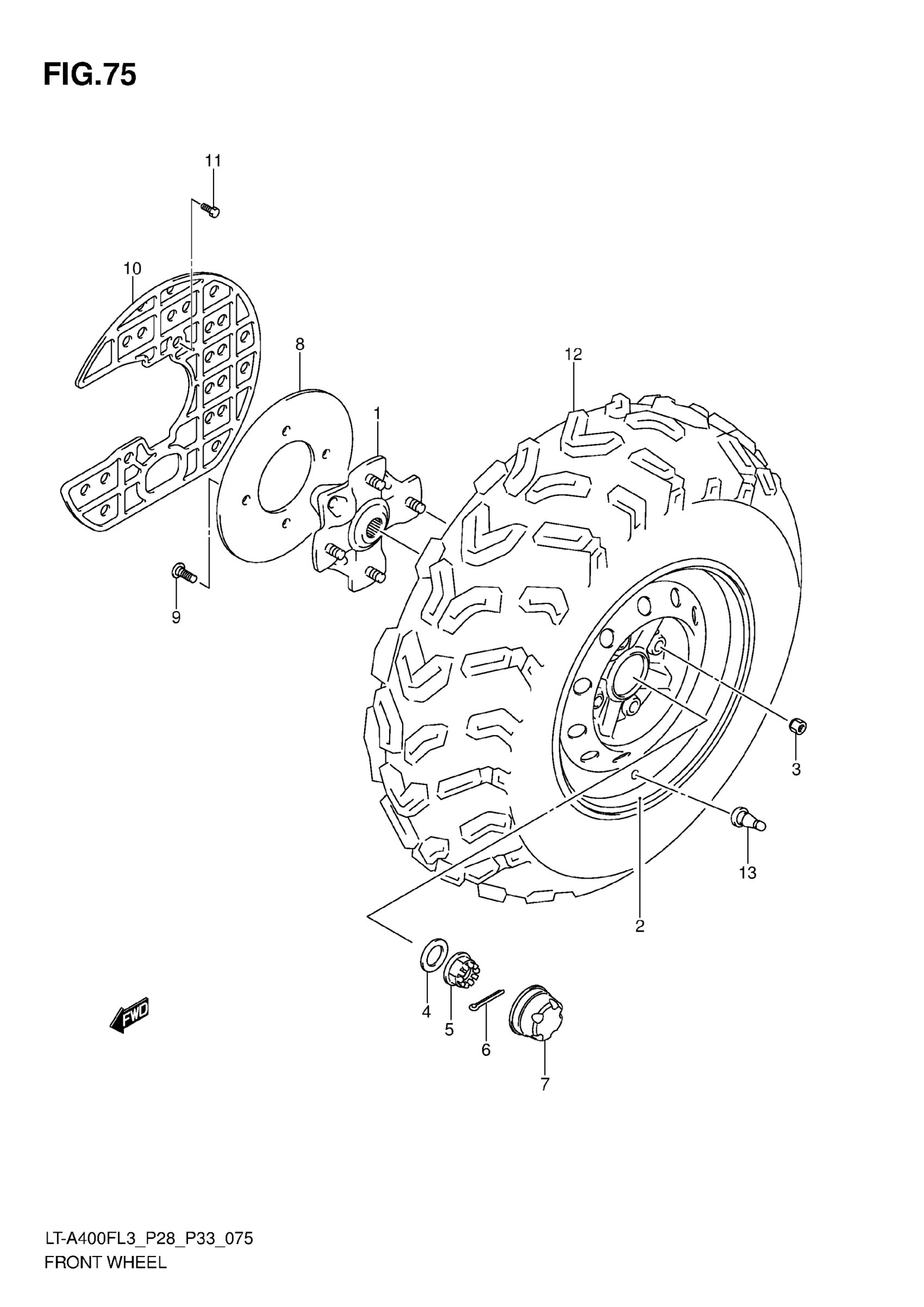

Suzuki LT-A400FL3 (2013) FRONT WHEEL Diagram
