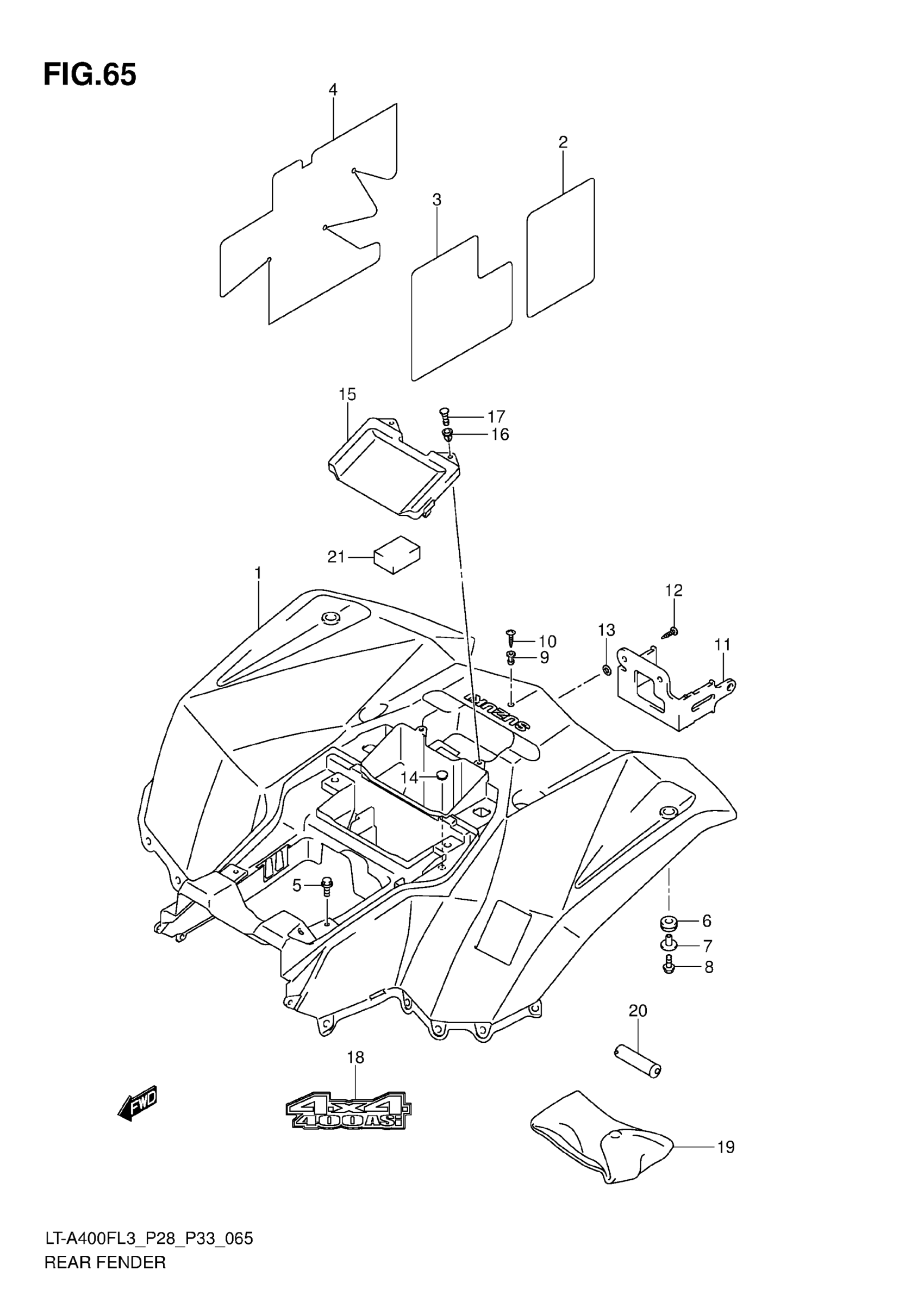

Suzuki LT-A400FL3 (2013) REAR FENDER (LT-A400FZL3 P33) Diagram

#

Description
Price

1

FENDER, REAR (CAMOUFLAGE)

63111-27H12-PHW

$671.13

2

SHIELD, REAR FENDER

63122-27H10

$14.47

3

SHIELD, REAR FENDER This part replaces 63123-27H10.

63123-27H20

$15.82

4

SHIELD, REAR FENDER

63124-27H10

$14.22

5

BOLT (6X16)

09116-06006

$1.86

6

CUSHION (11.5X32X12.2)

09320-11021

$4.17

7

WASHER

09169-06074

$7.95

8

BOLT

01550-0625A

$1.97

9

NUT

09159-05019

$7.14

10

SCREW

02142-0520B

$1.78

11

PLATE,CDI UNIT

47413-27H00

$10.96

12

RIVET

09229-04020

$2.66

13

WASHER

08322-0104A

$1.91

14

CAP (OD:16)

09250-08018

$3.34

15

COVER,REAR FENDER

63112-27H00

$35.80

16

GROMMET

09409-08329

$2.40

17

PLUNGER

09409-08330

$2.38

18

EMBLEM,RR FENDE This part replaces 68171-27HE0-JLJ.

68171-27HE1-JLJ

$12.53

19

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

20

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

21

CUSHION, TOOL

45146-31G10

$3.88
