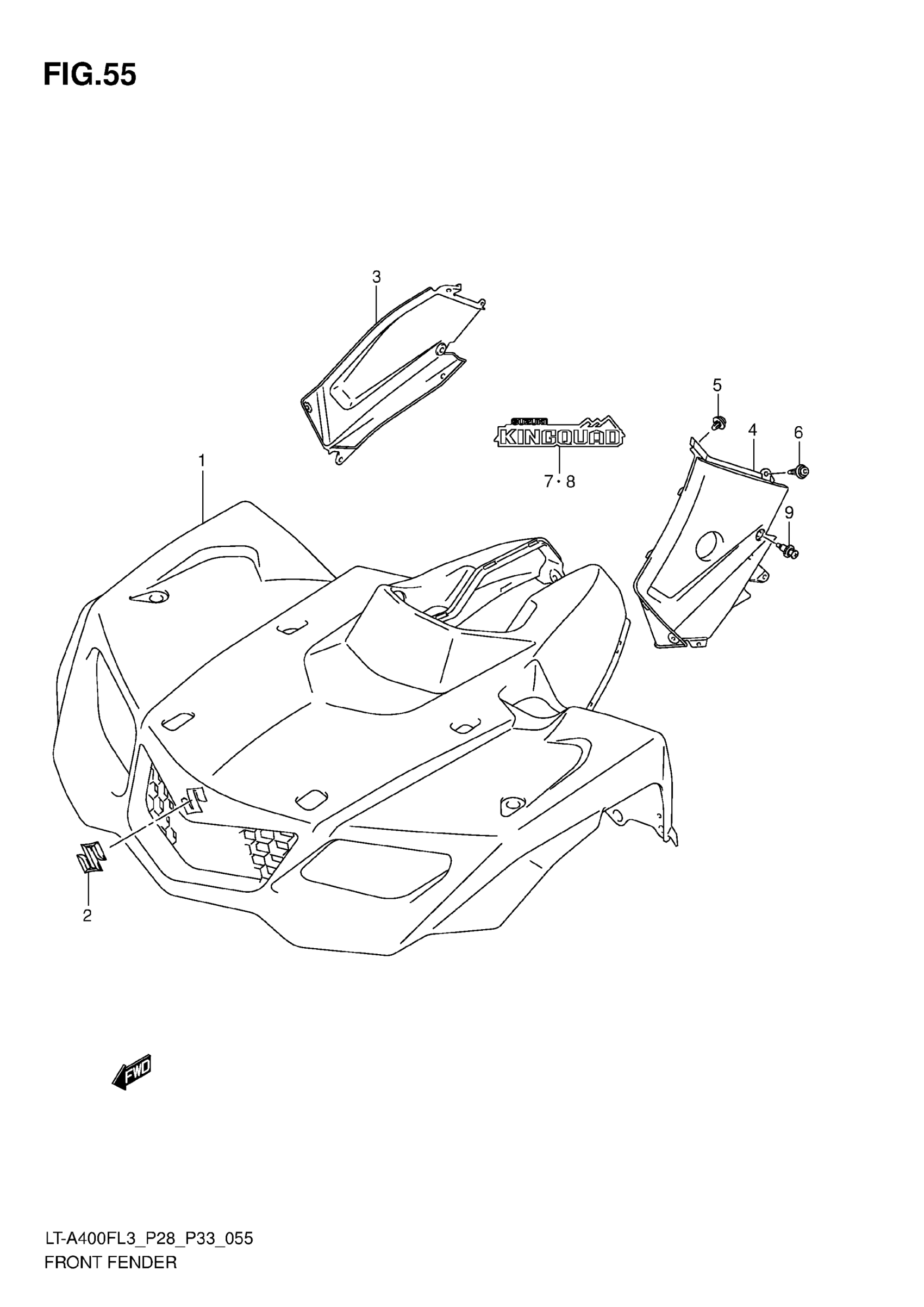

Suzuki LT-A400FL3 (2013) FRONT FENDER (LT-A400FL3 P33) Diagram

#

Description

Price

1

FENDER,FRONT (RED) This part replaces 53111-27H01-YT9.

53111-27H02-YT9

$343.08

1

FENDER,FRONT (GREEN) This part replaces 53111-27H01-YLG.

53111-27H02-YLG

$331.13

1

FENDER, FRONT (BLACK)

53111-27H01-YLZ

Unavailable

1

FENDER, FRONT (YELLOW)

53111-27H01-YU1

Unavailable

2

EMBLEM, "S"

68151-03G40

$17.03

3

COVER,SIDE,R (BLACK) This part replaces 53112-27H02-291.

53112-27H04-291

$52.96

4

COVER,SIDE,L (BLACK) This part replaces 53122-27H11-291.

53122-27H13-291

$48.62

5

CLIP

09409-07333

$2.31

6

CLIP

09409-08335

$2.47

7

EMBLEM,FR FENDE This part replaces 68151-27HA0-EFG.

68151-27HA1-EFG

$39.38

8

EMBLEM,FR FENDE This part replaces 68152-27HA0-EFG.

68152-27HA1-EFG

$39.38

9

CLIP

09409-10306

$3.04
