2012 Suzuki LT-A400FL2 Wiring Harness Diagram

← All diagrams

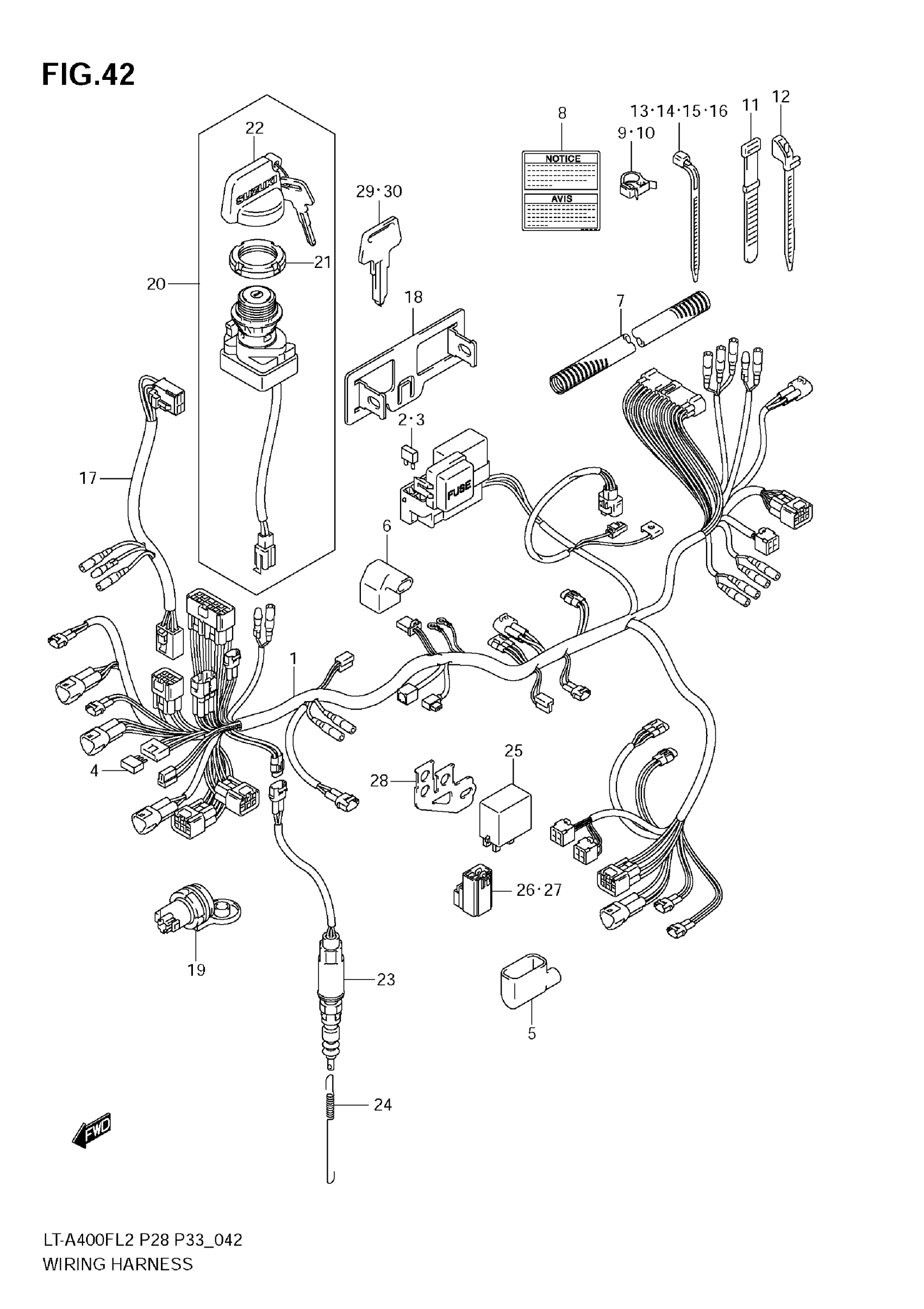

Find the part on the Wiring Harness diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A400FL2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING This part replaces 36610-27HE0.

36610-27HE2

1
Out of stock

2

FUSE (10A)

09481-10501

5
Out of stock

3

FUSE (15A)

09481-15501

1
Out of stock

4

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

5

PROTECTOR, WIRING HARNESS

36618-25H00

1
Out of stock

6

BOOT, CONNECTOR

36618-27H00

1
Out of stock

7

GUIDE,WIRING HARNESS

36619-27H00

1
Out of stock

8

LABEL, CAUTION MAX AMP

38852-03G20

—
Out of stock

9

CLAMP

09403-20403

1
Out of stock

10

CLAMP

09403-30403

1
Out of stock

11

CLAMP (L:120)

09407-12402

2
Out of stock

12

CLAMP

09407-12407

—
Out of stock

13

CLAMP (L:125)

09407-14403

7
Out of stock

14

CLAMP (L:165)

09407-18402

2
Out of stock

15

CLAMP (L:235)

09407-25401

3
Out of stock

16

CLAMP (L:95)

09407-11401

2
Out of stock

17

WIRE, FRONT BRAKE SW LEAD

36855-27H00

1
Out of stock

18

BRACKET,FUSE BOX

36744-38F00

1
Out of stock

19

TERMINAL,POWER SOURCE (12V,12

38850-03G10

1
Out of stock

20

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

1
Out of stock

21

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

22

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

23

SWITCH ASSY,STOP LAMP

37740-38F01

1
Out of stock

24

SPRING

09443-06016

1
Out of stock

25

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

26

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

1
Out of stock

27

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

1
Out of stock

28

BRACKET, RELAY

38741-27H10

1
Out of stock

29

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

30

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock
