2012 Suzuki LT-A400FL2 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

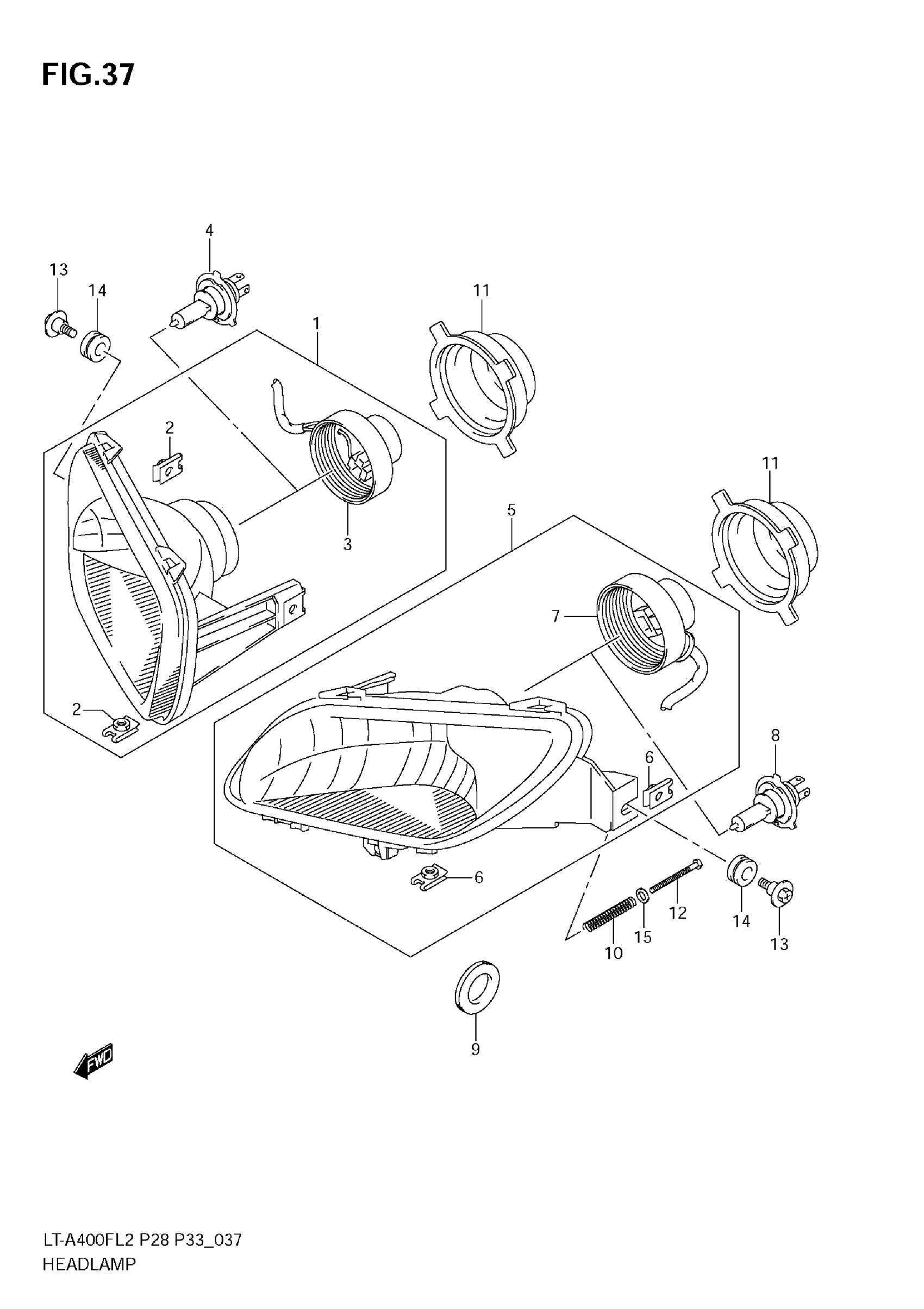

2012 Suzuki LT-A400FL2 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY RH This part replaces 35100-31G91-999.

35100-31G92-999

1
Out of stock

2

NUT (M6)

35157-31G90

2
Out of stock

3

CORD ASSY, RH

35171-31GM1

1
Out of stock

4

BULB (12V35/35W)

09471-12101

1
Out of stock

5

HEADLAMP ASSY LH This part replaces 35300-31G91-999.

35300-31G92-999

1
Out of stock

6

NUT (M6)

35157-31G90

2
Out of stock

7

CORD ASSY, LH

35171-31GH1

1
Out of stock

8

BULB (12V35/35W)

09471-12101

1
Out of stock

9

GROMMET

09308-07011

2
Out of stock

10

SPRING, HEADLAMP ADJUST

35154-31300

2
Out of stock

11

COVER,HEADLAMP HOUSING

35174-31G00

2
Out of stock

12

SCREW (4X50)

09125-04031

2
Out of stock

13

SCREW (6X22.5)

09139-06118

4
Out of stock

14

CUSHION

09320-10501

4
Out of stock

15

WASHER

08322-0104A

2
Out of stock
