2012 Suzuki LT-A400FL2 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

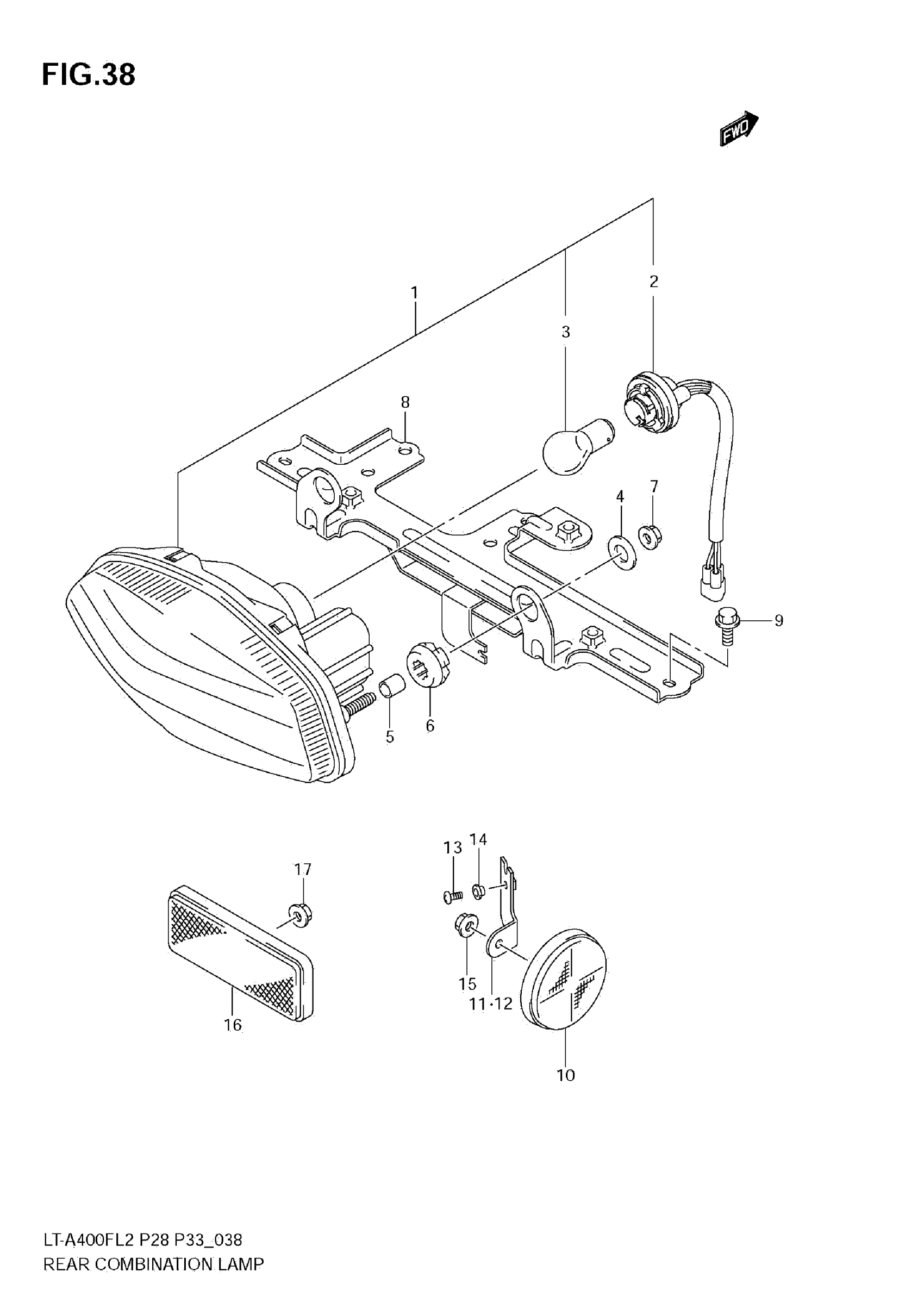

2012 Suzuki LT-A400FL2 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB

35710-31G00

1
Out of stock

2

SOCKET & BULB

35718-03G30

1
Out of stock

3

BULB (12V21/5W)

09471-12128

1
Out of stock

4

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

5

SPACER (6.5X9X10.5)

09180-06264

2
Out of stock

6

CUSHION

09320-09018

2
Out of stock

7

NUT

08316-1006A

2
Out of stock

8

BRACKET, REAR COMB LAMP

35720-27H30

1
Out of stock

9

BOLT

01550-0612A

2
Out of stock

10

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

11

BRACKET, REAR SIDE RR RH

35975-27H00

1
Out of stock

12

BRACKET, REARR SIDE RR LH

35976-27H00

1
Out of stock

13

SCREW (5X8)

09125-05073

2
Out of stock

14

WASHER

09169-06071

2
Out of stock

15

NUT

08316-1005B

2
Out of stock

16

REFLECTOR ASSY, REAR

35970-07F01

1
Out of stock

17

NUT

08316-1005B

1
Out of stock
