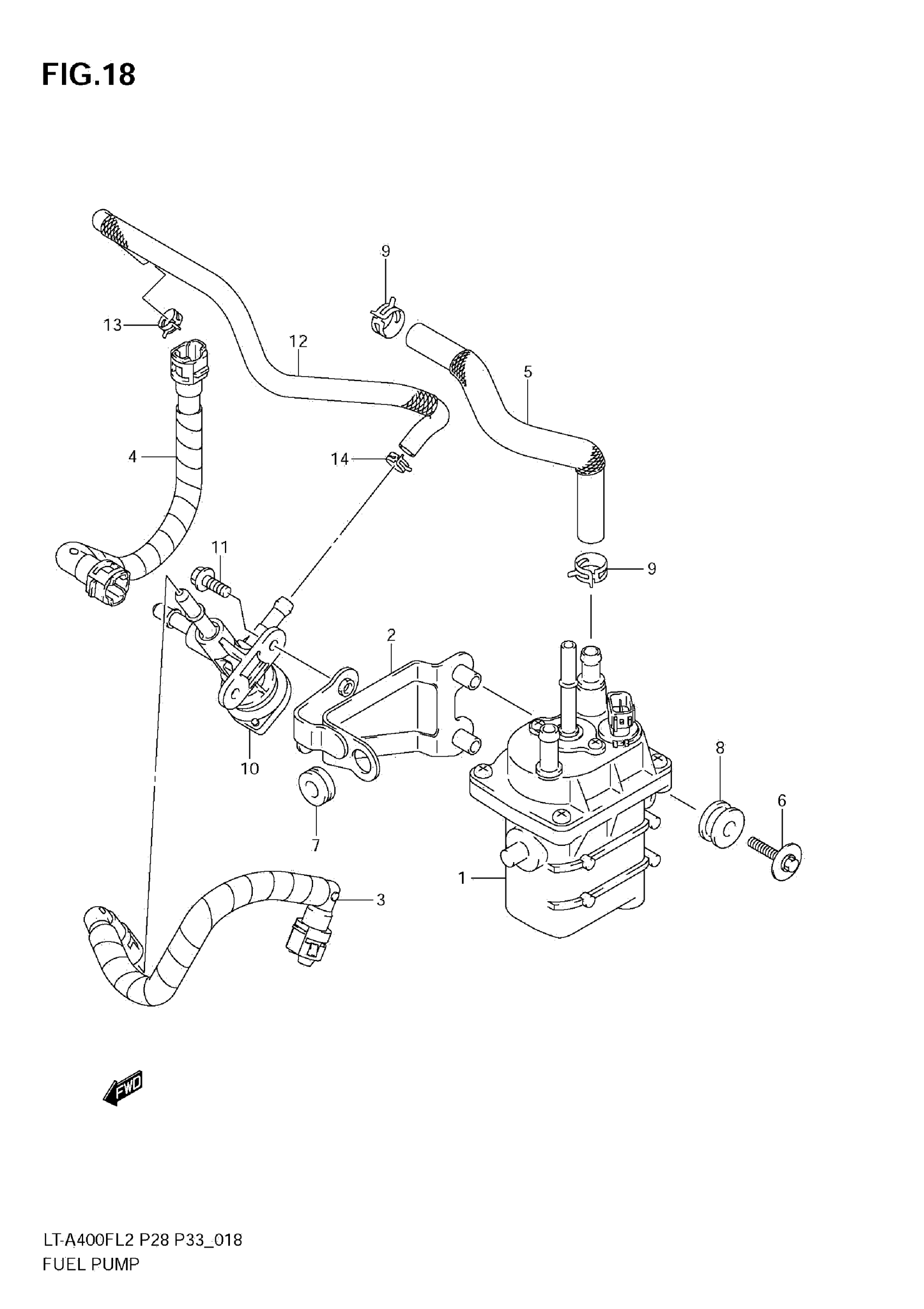

Suzuki LT-A400FL2 (2012) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-33H01.

15100-33H03

$421.70

2

BRACKET,FUEL PUMP

15310-27H00

$38.55

3

HOSE,FUEL NO.1 This part replaces 15810-27H01.

15810-27H03

$57.55

4

HOSE,FUEL NO.2 This part replaces 15820-27H01.

15820-27H03

$49.85

5

HOSE,FUEL NO.3 This part replaces 15831-27H00.

15831-27H01

$31.57

6

BOLT (6X25)

09116-06186

$2.61

7

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

8

CUSHION This part replaces 09320-10503.

09320-10076

$2.57

9

CLIP

09401-12410

$2.31

10

COCK ASSY,FUEL NO.2 This part replaces 44300-45G20.

44300-45G21

$236.65

11

BOLT

01547-0616A

$2.03

12

HOSE,FUEL RETURN This part replaces 15841-27H00.

15841-27H01

$38.17

13

CLIP (ID:11.1)

09401-11419

$3.08

14

CLIP

09401-13414

$2.62
