Find the part on the Cylinder Head diagram for your 2011 Suzuki LT-A400FL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

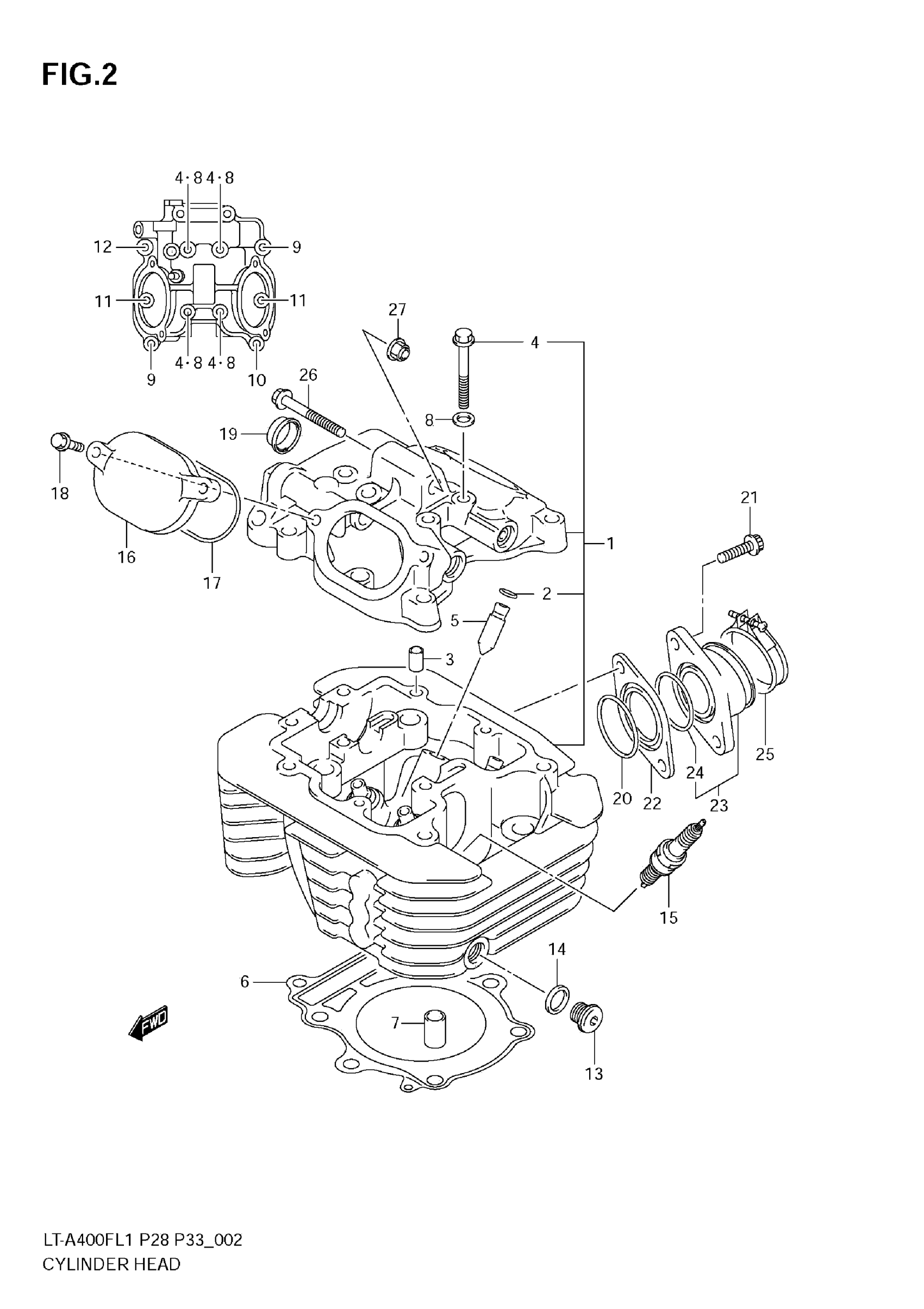

2011 Suzuki LT-A400FL1 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-27H10

1

$1,358.13

In stock

2

.RING (10X85)

09381-10004

4
Out of stock

3

PIN

09206-08001

2
Out of stock

4

BOLT (6X55)

09103-06102

4
Out of stock

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

6

GASKET, CYLINDER HEAD

11141-38F00

1
Out of stock

7

PIN

09206-13004

2
Out of stock

8

GASKET (5.8X13X1.2)

09168-06023

4
Out of stock

9

BOLT (6X35)

09103-06108

2
Out of stock

10

BOLT (6X39)

09103-06026

1
Out of stock

11

BOLT

01550-0625A

2
Out of stock

12

BOLT

01550-0630A

1
Out of stock

13

PLUG

09248-12004

1
Out of stock

14

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

15

SPARK PLUG (NGK,CR7E)

09482-00516

1

$6.17

In stock

15

1

$5.91

In stock

15

1

$6.17

In stock

15

1

$7.93

In stock

15

1

$6.43

In stock

15

1

$6.03

In stock

16

CAP,INSPECTION

11175-47D00

2
Out of stock

17

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

18

BOLT

01550-0620A

4
Out of stock

19

PLUG

09241-25007

1
Out of stock

21

SCREW

07120-0625A

2
Out of stock

22

INSULATOR, INTAKE PIPE This part replaces 13117-38F00.

13117-38F01

1
Out of stock

23

1

$60.85

In stock

24

O RING

13118-38F00

1
Out of stock

25

CLAMP

09402-54208

1
Out of stock

26

BOLT (8X60)

09103-08217

1
Out of stock

27

NUT

08319-3108A

1
Out of stock
