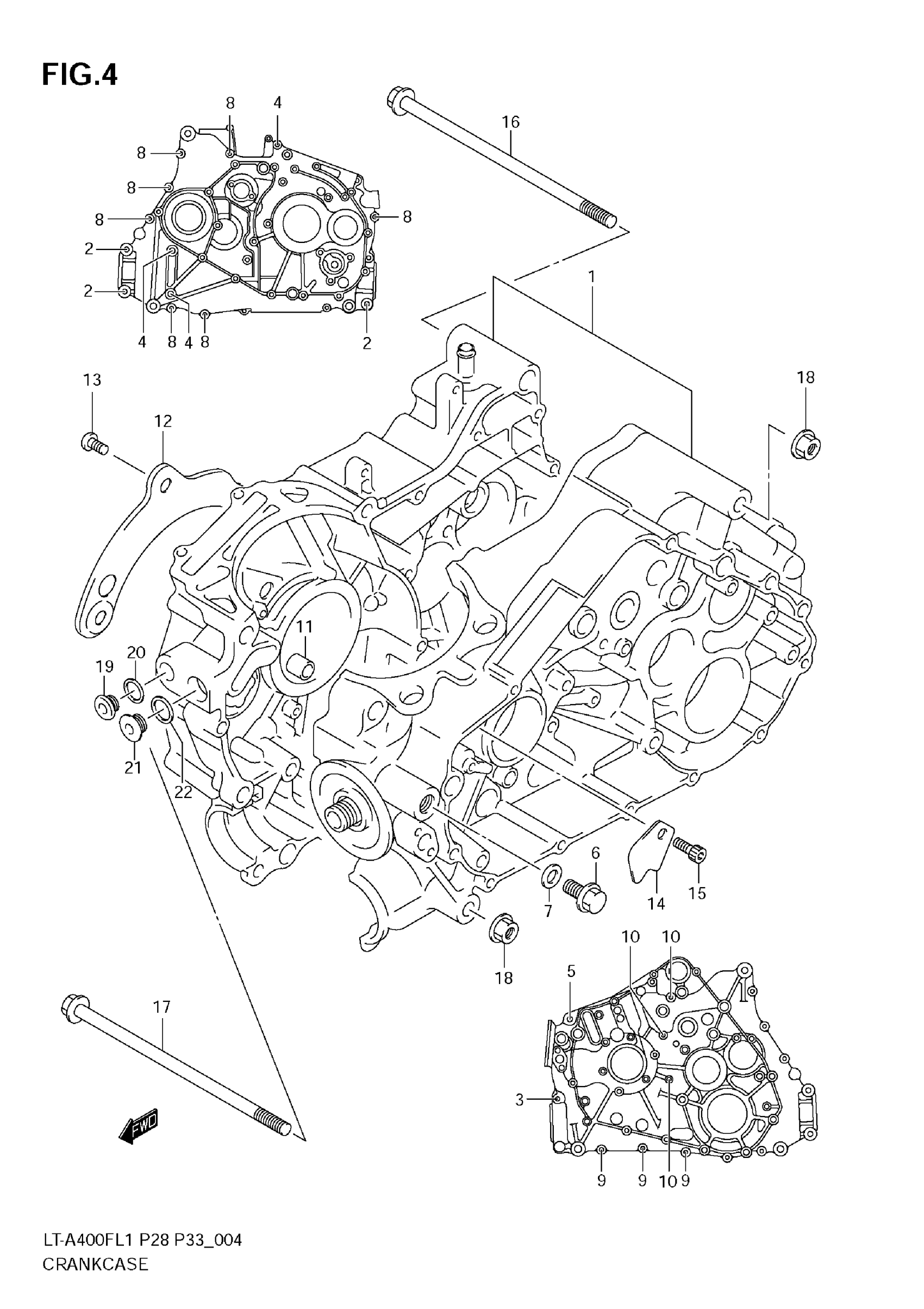

Suzuki LT-A400FL1 (2011) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-38812

Unavailable

2

BOLT (8X50)

09103-08081

$4.03

3

BOLT (8X50)

09103-08081

$4.03

4

BOLT (8X85)

09103-08300

Unavailable

5

BOLT (8X60)

09103-08217

$4.03

6

PLUG

09247-14015

$4.83

7

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

8

BOLT

01547-0645B

$2.73

9

BOLT

01547-0645B

$2.73

10

BOLT

01547-0670B

$3.01

11

PIN

04211-13189

$2.19

12

PLATE, OIL GUIDE

11317-38F00

Unavailable

13

SCREW

02112-0612B

$1.95

14

PLATE,OIL GUIDE,L

11323-38F00

Unavailable

15

BOLT

02112-0612B

$1.95

16

BOLT (10X195)

09103-10118

$11.91

17

BOLT (10X180)

11611-03G00

$24.82

18

NUT

09159-10115

$3.21

19

PLUG (16X8)

09248-16012

$4.19

20

GASKET (16X22X2)

09168-16002

$1.89

21

PLUG (18X8)

09248-18011

$7.98

22

GASKET (18X24X2)

09168-18009

$4.20
