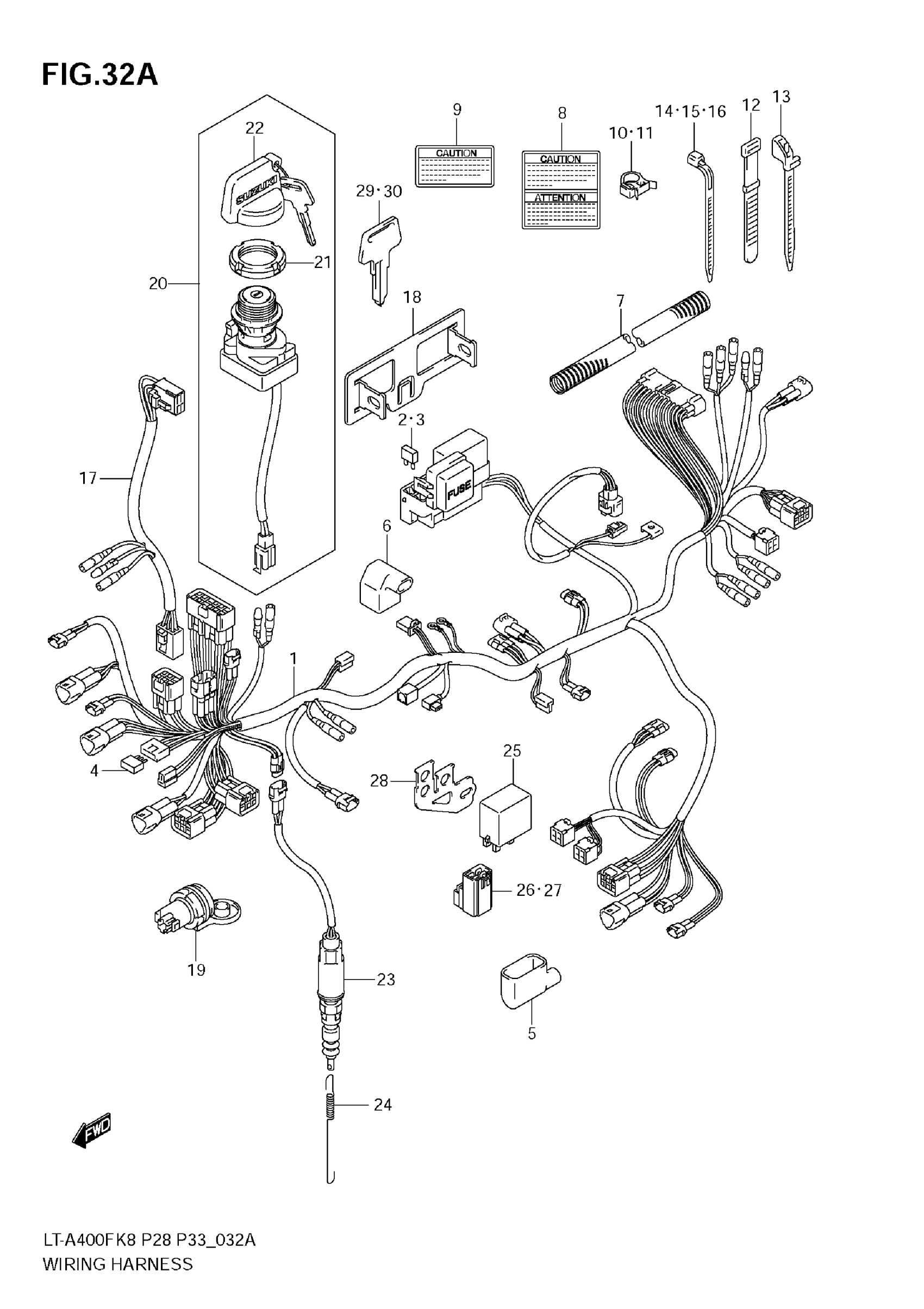

Suzuki LT-A400FK8 (2010) WIRING HARNESS (MODEL L0) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-27HE0.

36610-27HE2

$579.65

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

5

BOOT, ECU COUPLER

36618-25H00

$5.55

6

BOOT, CONNECTOR

36618-27H00

$1.64

7

GUIDE,WIRING HARNESS

36619-27H00

Unavailable

8

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

9

LABEL, CAUTION MAX AMP | E33

38852-09F30

Unavailable

10

CLAMP, WIRING HARNESS

09403-20403

$4.00

11

CLAMP, WIRING HARNESS

09403-30403

Unavailable

12

CLAMP (L:120)

09407-12402

$2.80

13

CLAMP (L:116)

09407-12407

Unavailable

14

CLAMP (L:125)

09407-14403

$2.24

15

CLAMP (L:165)

09407-18402

$2.21

16

CLAMP (L:235)

09407-25401

$4.21

17

WIRE, FRONT BRAKE SW

36855-27H00

$55.55

18

BRACKET,FUSE BOX

36744-38F00

$12.83

19

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$16.30

20

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$75.25

21

.NUT,IGNITION SWITCH

37112-24500

$12.60

22

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

23

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

24

SPRING, STOP LAMP

09443-06016

$3.58

25

RELAY,NEUTRAL START

38730-09F00

$42.62

26

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

$25.85

27

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

$25.85

28

BRACKET, RELAY

38741-27H10

Unavailable

29

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

30

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38
