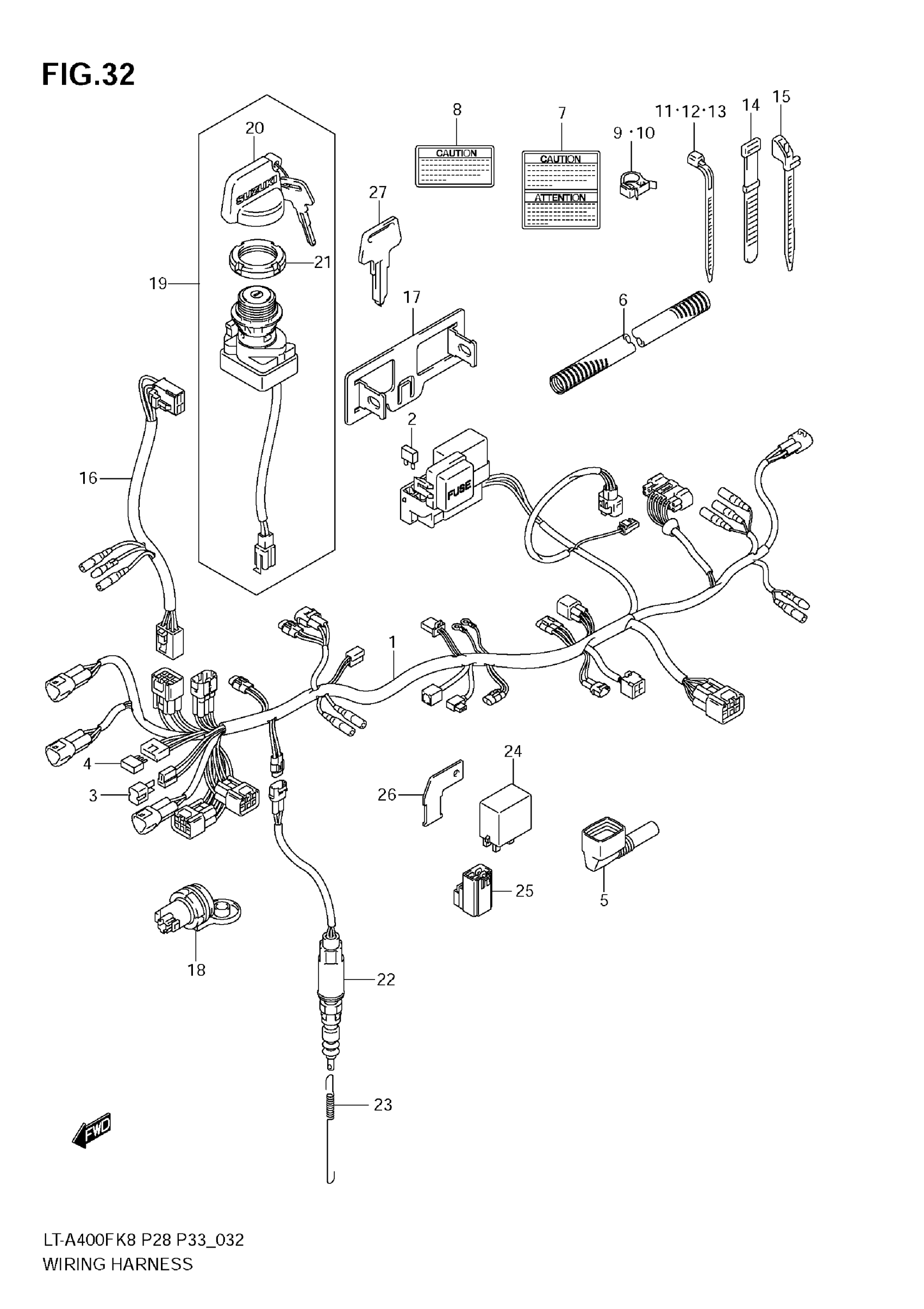

Suzuki LT-A400FK8 (2010) WIRING HARNESS (MODEL K8/K9) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-27H40.

36610-27H41

$458.52

2

FUSE (10A)

09481-10501

$2.07

3

RECTIFIER ASSY

32800-16A00

$21.12

4

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

5

BOOT, ECU COUPLER

36618-35F00

$11.37

6

GUIDE,WIRING HARNESS

36619-27H00

Unavailable

7

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

8

LABEL, CAUTION MAX AMP | E33

38852-09F30

Unavailable

9

CLAMP (D:20)

09403-20403

$4.00

10

CLAMP (D:25)

09403-25401

Unavailable

11

CLAMP (L:125)

09407-14403

$2.24

12

CLAMP (L:165)

09407-18402

$2.21

13

CLAMP (L:235)

09407-25401

$4.21

14

CLAMP (L:120)

09407-12402

$2.80

15

CLAMP

09407-12407

Unavailable

16

WIRE, FRONT BRAKE SW

36855-27H00

$55.55

17

BRACKET,FUSE BOX

36744-38F00

$12.83

18

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$16.30

19

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$75.25

20

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

21

.NUT,IGNITION SWITCH

37112-24500

$12.60

22

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

23

SPRING, STOP LAMP

09443-06016

$3.58

24

RELAY,NEUTRAL START

38730-09F00

$42.62

25

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

26

BRACKET, GEAR IN START

38741-09F00

Unavailable

27

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

27

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

27

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

27

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38
