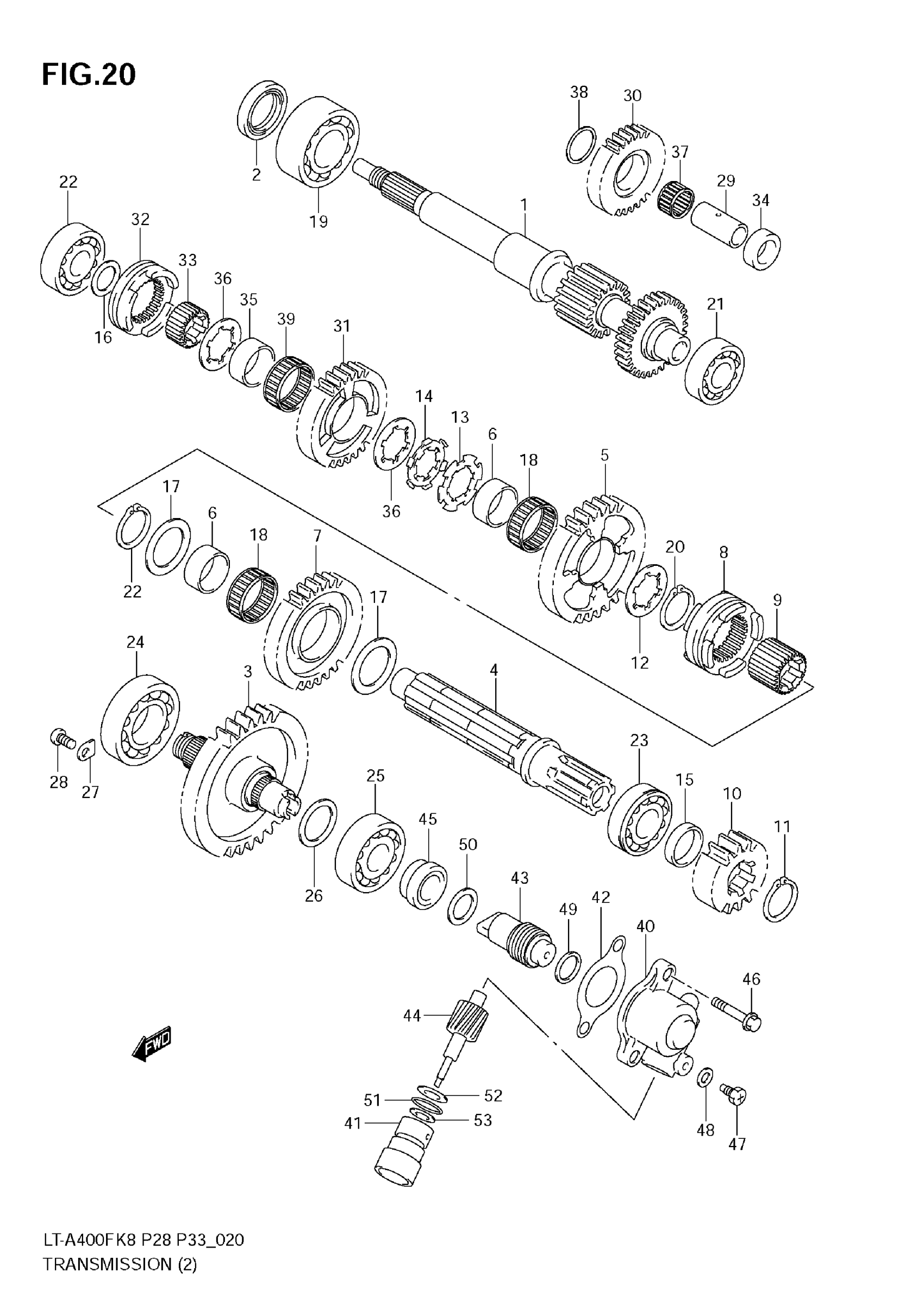

Suzuki LT-A400FK8 (2010) TRANSMISSION (2)(MODEL K8/K9) Diagram

#

Description
Price

1

SHAFT, DRIVE (NT:24/16)

29111-38F10

Unavailable

2

SEAL, DRIVE SHAFT

12281-87J00

$15.55

3

SHAFT, SUB T/M OUTPUT

29120-27H00

Unavailable

4

SHAFT,SUB T/M COUNTER

29131-27H00

Unavailable

5

GEAR, SUB T/M DRIVEN LOW | NT:40

29311-09F51

$181.83

6

BUSH, SUB T/M DRIVEN

29315-09F51

$28.08

7

GEAR, SUB T/M DRIVEN HIGH | NT:33

29321-09F51

$172.67

8

DOG, SUB T/M SELECT

29331-38F10

$84.32

9

SPACER, SUB T/M SELECT

29332-38F10

Unavailable

10

GEAR, SUB T/M DRIVE NO.2 | NT:19

29411-38F00

$77.92

11

CIRCLIP SUB DRIVE NO.2

08331-3125A

Unavailable

12

WASHER, DRIVEN GEAR LOW

09167-25017

$3.87

13

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

14

WASHER, LOCK

09169-25001

$2.70

15

SPACER (25X30X7)

09180-25097

$10.20

16

WASHER, SUB COUNTER R | 20X30X1

09181-20195

$2.60

17

WASHER, DRIVEN GEAR HIGH | 25X40X1.0

09181-25251

$3.87

18

BEARING, SUB T/M GEAR | 30X35X12

09263-30018

$22.25

19

BEARING, DRIVE SHAFT RH

08113-62060

$34.25

20

SNAP RING

09380-25003

$3.04

21

BEARING, DRIVE SHAFT LH | 20X47X14

09262-20069

$23.28

22

BEARING, SUB T/M COUNTER RH | 20X52X15

09262-20073

$23.28

23

BEARING, SUB T/M COUNTER LH | 25X52X15

09262-25003

$24.83

24

BEARING, SUB T/M OUTPUT | 35X72X17

09262-35038

$46.10

25

BEARING, SUB T/M OUTPUT LH | 20X52X15

09262-20073

$23.28

26

WASHER, SUB T/M DRIVEN | 20X34X1

09181-20251

$2.79

27

RETAINER, BEARING

24741-21A00

$2.81

28

SCREW, RETAINER (6X12)

09125-06110

$2.12

29

SHAFT,REVERSE IDLE

24551-38F00

Unavailable

30

GEAR, REVERSE IDLE (NT:28)

24561-27H00

Unavailable

31

GEAR, REVERSE DRIVEN (NT:34)

24571-27H00

Unavailable

32

DOG,REVERSE GR SELECT SLIDING

24581-27H00

Unavailable

33

SPACER, REVERSE SLIDING

24582-38F10

Unavailable

34

SPACER,REVERSE IDLE GEAR

24562-27H00

Unavailable

35

BUSH, REVERSE DRIVEN GEAR

29315-09F51

$28.08

36

WASHER, REVERSE DRIVEN GEAR

09167-25017

$3.87

37

BEARING, REVERSE IDLE GEAR | 20X24X13

09263-20060

$20.73

38

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

$2.60

39

BEARING, REVERSE DRIVEN GEAR | 30X35X12.8

09263-30018

$22.25

40

HOUSING, ODOMETER GEAR

26441-19B01

$63.48

41

SLEEVE

26442-19B00

$40.33

42

GASKET

26451-19B12

$4.72

43

GEAR, DRIVE (NT:9)

26461-38F00

Unavailable

44

GEAR, DRIVE (NT:15)

26471-38F00

$41.88

45

SPACER

26481-19B00

Unavailable

46

BOLT (6X20)

09103-06201

$2.64

47

BOLT (6X10)

09135-06501

$3.04

48

WASHER (6.2X11X1.2)

09168-06004

$1.49

49

WASHER (15X20X1.0)

09181-15111

$2.97

50

WASHER (17X24X1.0)

09181-17139

$3.07

51

O RING (D:1.9,ID:16.6)

09280-17004

$3.67

52

SEAL (5X12X8)

09283-05001

$11.58

53

WASHER

08211-08151

$2.06
