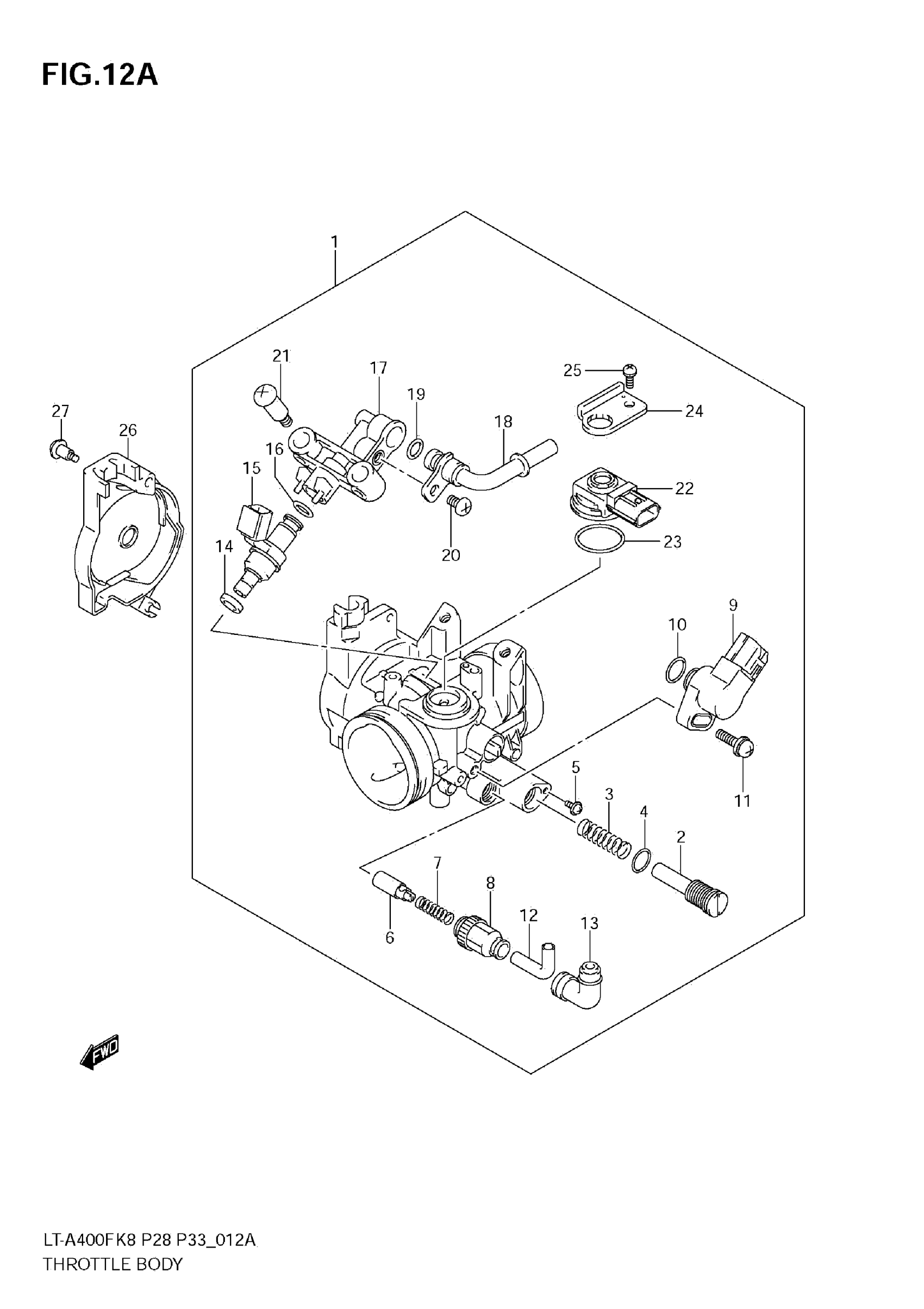

Suzuki LT-A400FK8 (2010) THROTTLE BODY (LT-A400FL0) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-27H00

Unavailable

2

SCREW

13269-14G00

Unavailable

3

SPRING

13271-14G00

Unavailable

4

O RING

13295-14G00

$3.37

5

SCREW

13601-14G00

$3.03

6

STARTER VALVE

13411-28H00

$41.68

7

SPRING

13271-45G00

$6.17

8

HOLDER, CABLE

13581-45G00

$3.62

9

SENSOR, THROTTLE This part replaces 13580-33H00.

13580-33H01

$259.07

10

O RING

13575-40F00

$4.09

11

SCREW

13605-40F00

$3.71

12

GUIDE, CABLE

13579-45G00

$12.72

13

CAP

13681-45G00

$5.67

14

.RING,SEAL

15722-21H00

$11.25

15

INJECTOR ASSY

15710-33H00

$310.93

16

.O-RING

15721-21H00

$9.09

17

PIPE, FUEL

13471-33H00

Unavailable

18

JOINT

13685-33H00

Unavailable

19

.O-RING

15721-24F00

$9.09

20

SCREW

13452-45G00

$3.58

21

SCREW

13601-45G00

$3.25

22

SENSOR, MAP

15620-05H00

$273.45

23

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

24

PLATE

15622-33H00

Unavailable

25

SCREW

02112-14087

$2.38

26

COVER

13484-45G00

$34.85

27

SCREW

13601-11F00

$2.93
