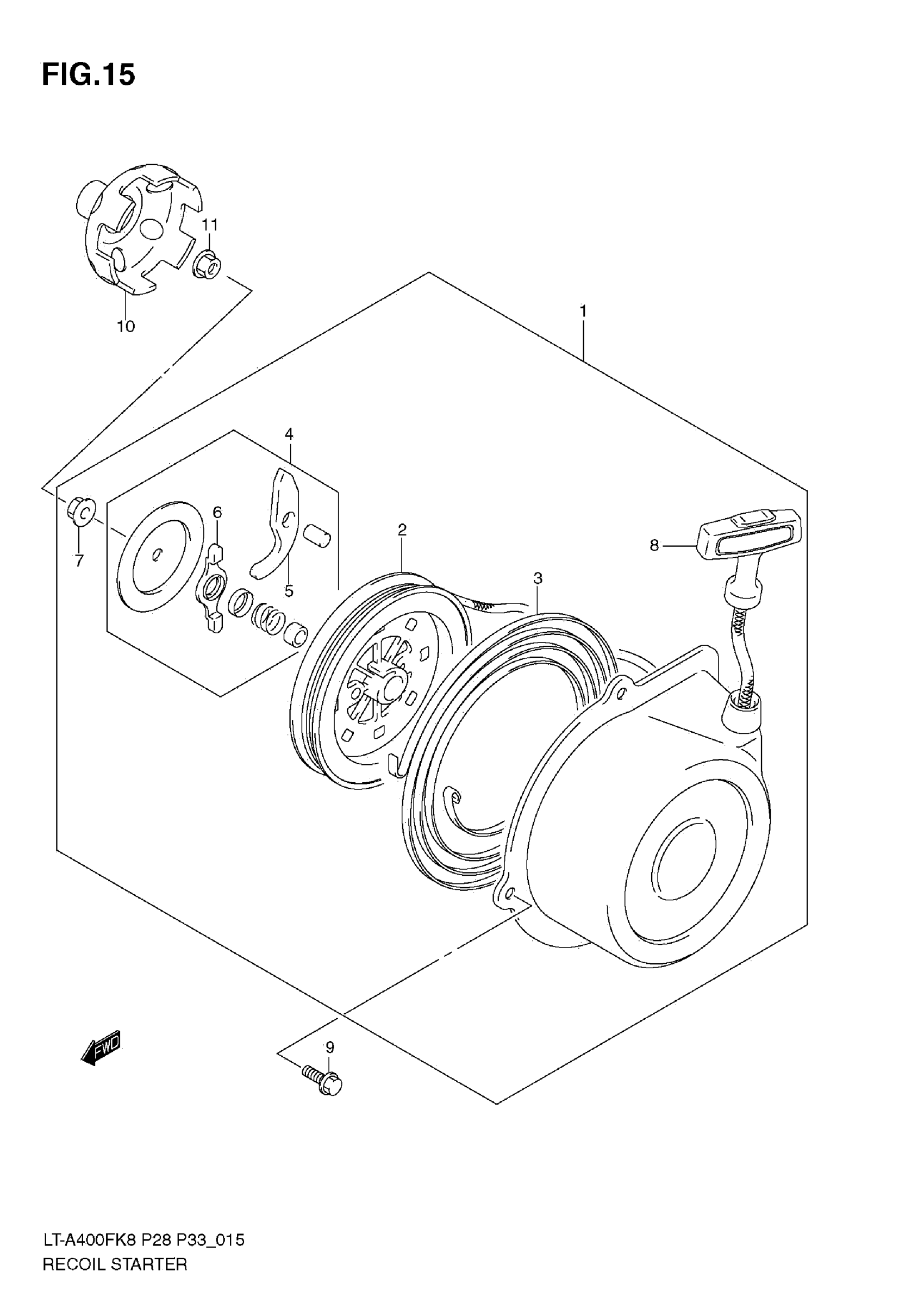

Suzuki LT-A400FK8 (2010) RECOIL STARTER (LT-A400FK8/FK9/FUL0) Diagram

#

Description
Price

1

STARTER ASSY,RECOIL

18100-24503

$225.42

2

REEL

18120-24500

$47.40

3

.SPRING,SPIRAL

18142-24400

$29.60

4

RATCHET SET

18130-24400

$16.96

5

RATCHET

18131-24411

$8.12

6

..GUIDE,RATCHET

18132-24400

$2.92

7

NUT

08316-1006B

$2.50

8

ROPE ASSY

18200-24501

$38.13

9

BOLT (6X12)

09103-06236

$2.69

10

CUP,STARTER

18410-09F02

$77.07

11

NUT

08316-1010B

$2.66
