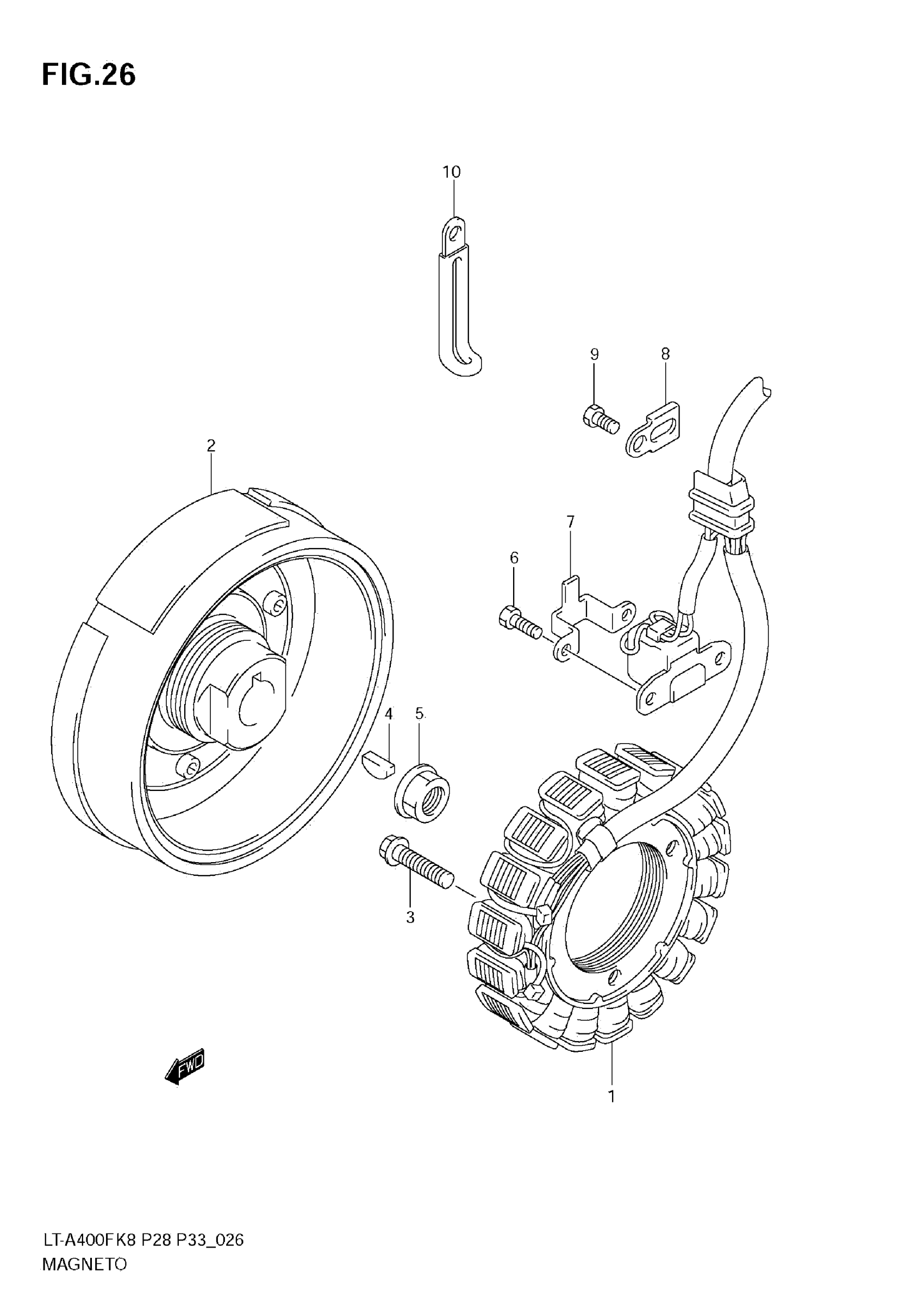

Suzuki LT-A400FK8 (2010) MAGNETO (MODEL K8/K9) Diagram

#

Description
Price

1

STATOR ASSY

32101-27H00

$843.10

2

ROTOR ASSY

32102-27H00

Unavailable

3

BOLT, MAGNETO

01547-0625B

$2.45

4

KEY, MAGNETO

08341-31059

$2.48

5

NUT, MAGNETO ROTOR

31792-18A00

$11.87

6

BOLT, SENSOR (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO NO.1

31497-45000

$1.92

8

CLAMP, MAGNETO NO.2

32371-32E00

$6.30

9

BOLT, CLAMP NO.2 (5X10)

09100-05019

$1.93

10

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
