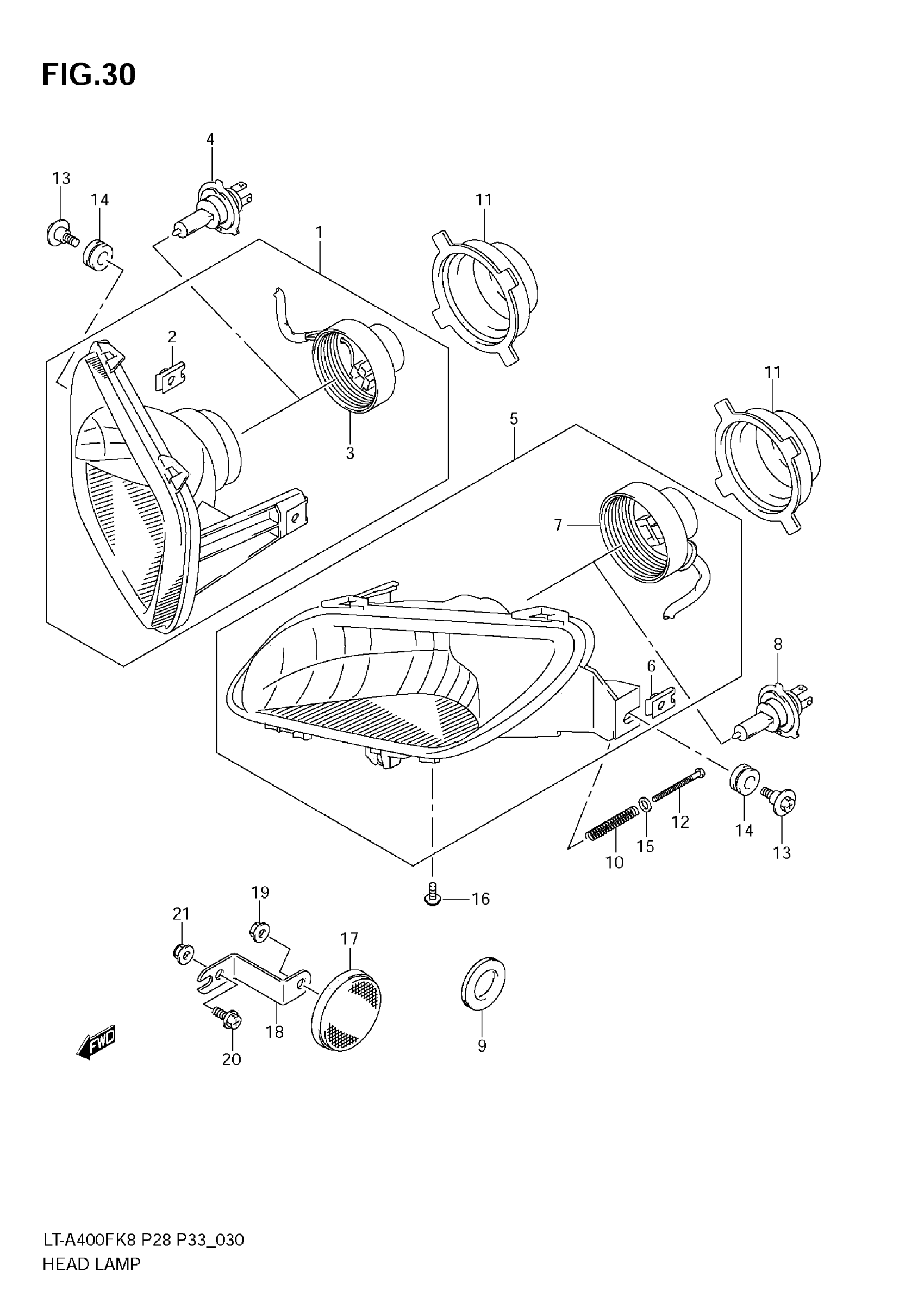

Suzuki LT-A400FK8 (2010) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY, R

35100-31G90-999

Unavailable

2

NUT (M6)

35157-31G90

$5.30

3

CORD ASSY, R

35171-31GM1

$30.10

4

BULB (12V35/35W,HS1)

09471-12101

$64.80

5

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

35300-31G92-999

$102.70

6

NUT (M6)

35157-31G90

$5.30

7

CORD ASSY, L

35171-31GH1

$38.48

8

BULB (12V35/35W,HS1)

09471-12101

$64.80

9

GROMMET

09308-07011

$2.62

10

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

12

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

$2.28

13

SCREW, HEADLAMP | 6X22.5

09139-06118

$3.25

14

CUSHION

09320-10501

$6.23

15

WASHER, HEADLAMP

08322-0104A

$1.91

16

SCREW (5X16)

09136-05046

$2.45

17

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

$15.23

18

BRACKET,FRONT SIDE RR | E28

35956-27H00

$9.12

19

NUT, FR SIDE RR | E28

08316-1005B

$2.50

20

SCREW, FR SIDE RR BRKT | E28

02162-0516B

$2.53

21

NUT, FR SIDE RR BRKT | E28

08319-3105B

$3.55
