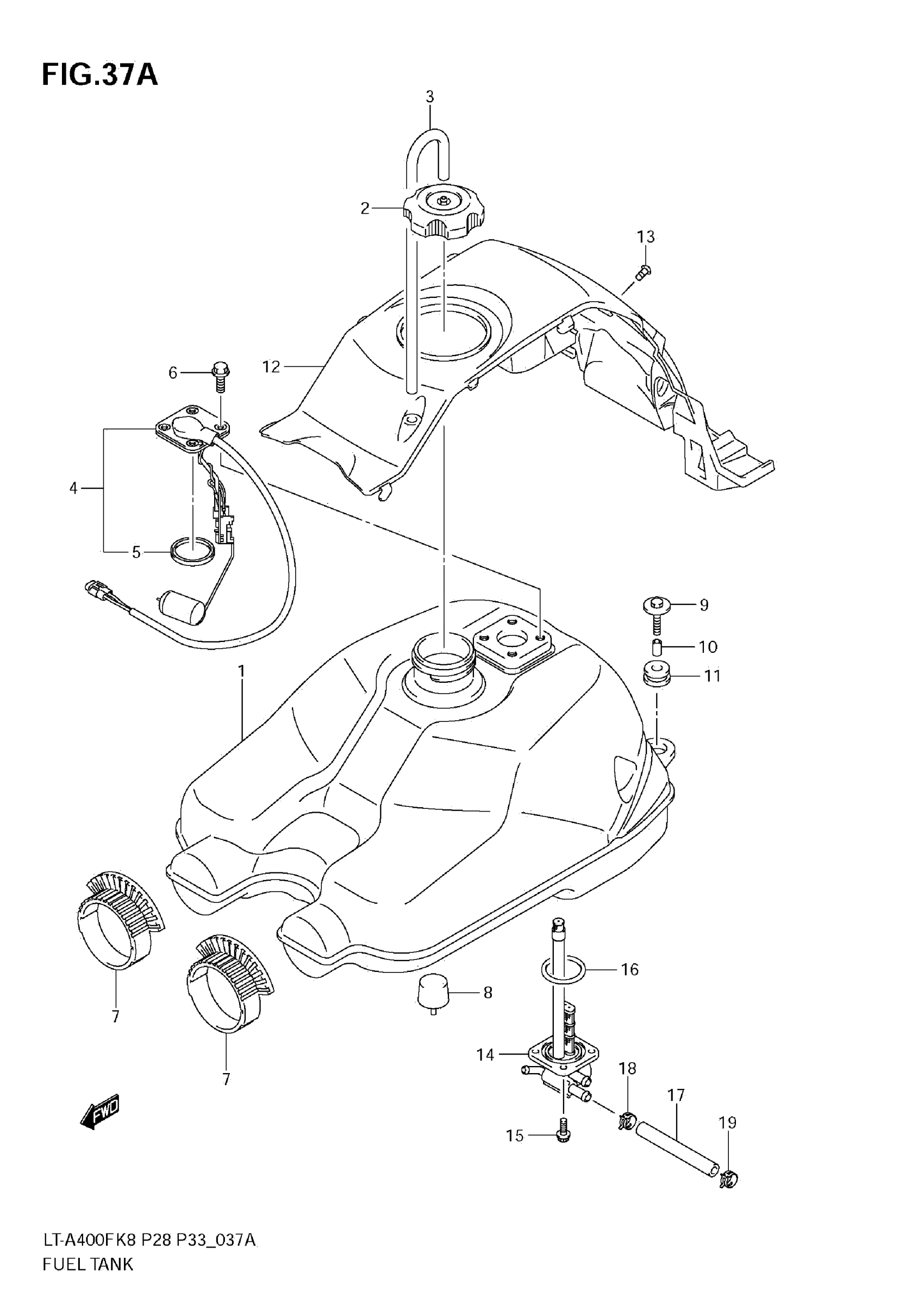

Suzuki LT-A400FK8 (2010) FUEL TANK (LT-A400FL0) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-27HA0.

44100-27HB2

$578.78

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-290.

44421-13ER0

$10.06

4

GAUGE ASSY,FUEL This part replaces 34810-27H00.

34810-27H03

$123.14

5

.PACKING,FUEL LEVEL GAUGE This part replaces 34825-03A00.

34825-03A01

$8.07

6

BOLT

01550-0612A

$1.97

7

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

$19.57

8

CUSHION,FUEL TANK LWR This part replaces 44543-38F00.

44543-38F01

$6.99

9

BOLT

09116-06050

$2.26

10

SPACER

09180-06293

$2.58

11

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

12

COVER,FUEL TANK UPPER (BLACK) This part replaces 44271-27HA0-291.

44271-27HA2-291

$36.20

13

BOLT, REAR

09139-05085

$3.50

14

COCK ASSY,FUEL This part replaces 44300-27HA0.

44300-27HA1

$200.12

15

BOLT, COCK

07120-0612A

$2.50

16

O RING, OUTLET

44348-33H00

$27.03

17

HOSE,FUEL This part replaces 44421-27HA0.

44421-27HA2

$42.12

18

CLIP

09401-12405

$2.26

19

CLIP

09401-12410

$2.31
