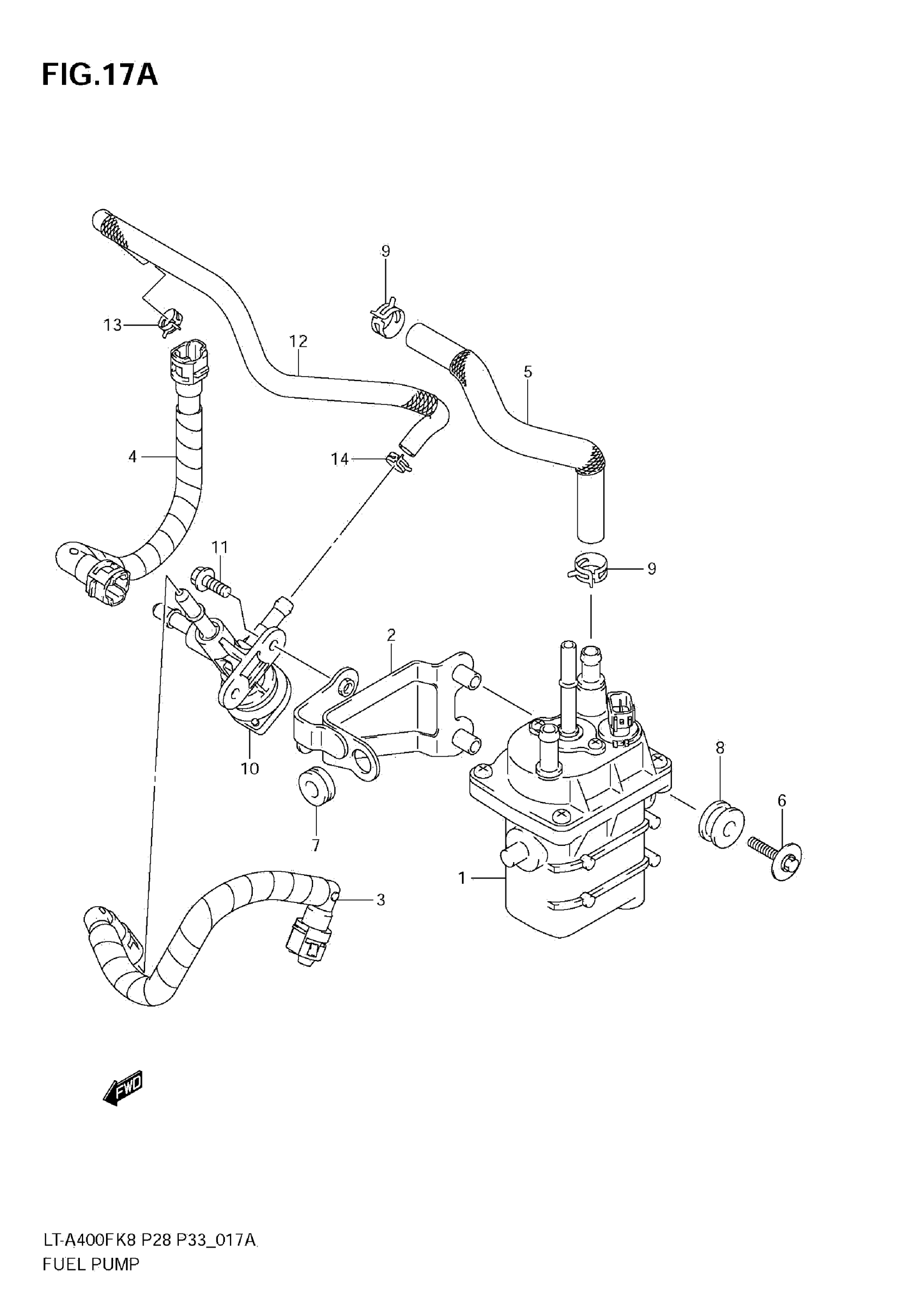

Suzuki LT-A400FK8 (2010) FUEL PUMP (LT-A400FL0) Diagram

#

Description

Price

1

PUMP ASSY,FUEL This part replaces 15100-33H00.

15100-33H03

$421.70

2

BRACKET,FUEL PUMP

15310-27H00

$38.55

3

HOSE, FUEL

15810-27H00

Unavailable

4

HOSE, FUEL NO.2

15820-27H00

Unavailable

5

HOSE,FUEL NO.3 This part replaces 15831-27H00.

15831-27H01

$31.57

6

BOLT

09116-06186

$2.61

7

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

8

CUSHION This part replaces 09320-10503.

09320-10076

$2.57

9

CLIP

09401-12410

$2.31

10

COCK ASSY,FUEL NO.2 This part replaces 44300-45G20.

44300-45G21

$236.65

11

BOLT

01547-0616A

$2.03

12

HOSE,FUEL RETURN This part replaces 15841-27H00.

15841-27H01

$38.17

13

CLIP (ID:11.1)

09401-11419

$3.08

14

CLIP

09401-13414

$2.62
