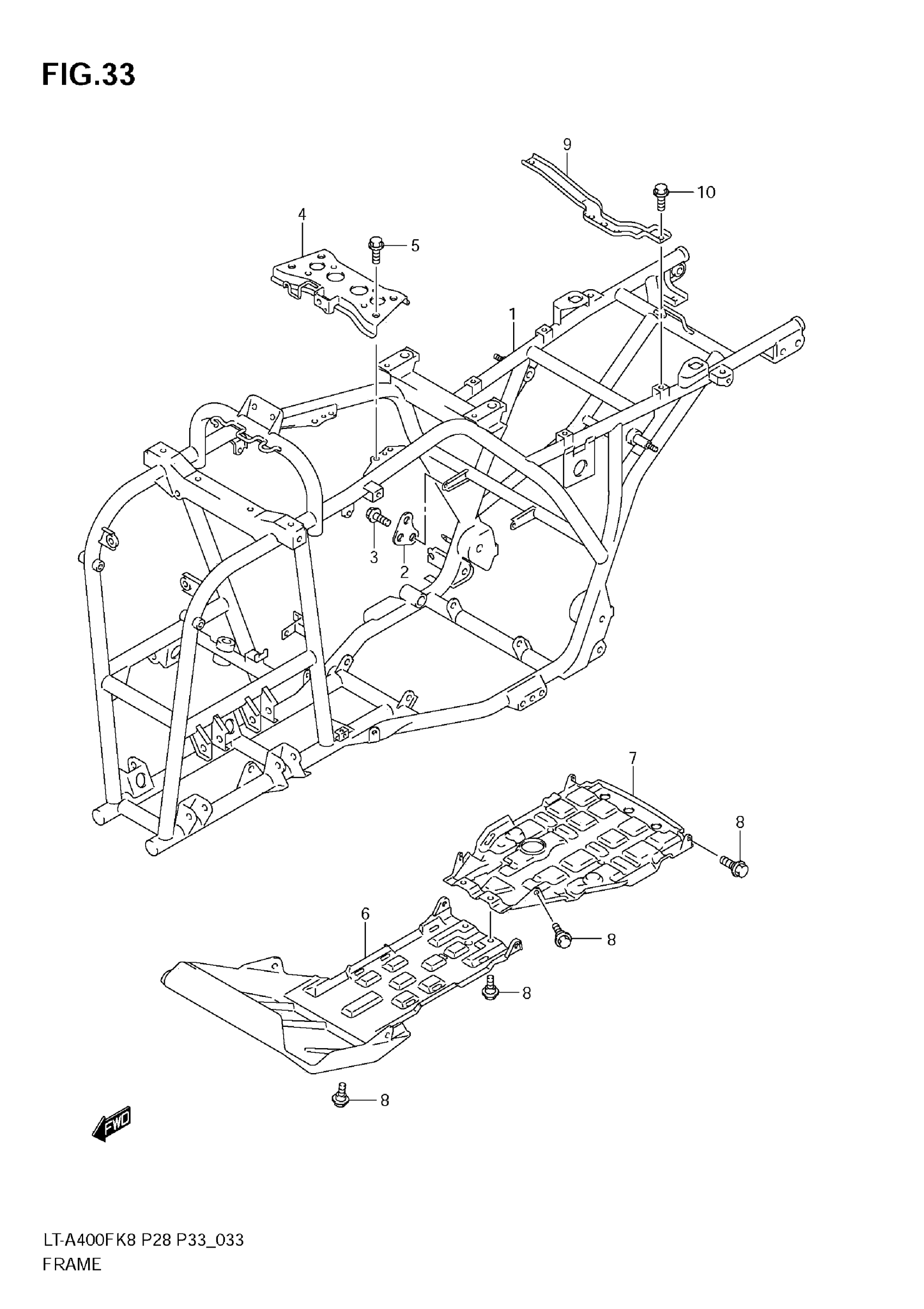

Suzuki LT-A400FK8 (2010) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | LT-A400FK8/FK9/FUL0

41100-27H00-019

Unavailable

1

FRAME (BLACK) | LT-A400FL0 This part replaces 41100-27H10-019.

41100-27H11-019

$1,381.97

2

PLATE, MOUNT REAR RH

41981-38FA0

$3.93

3

BOLT

09103-08441

$1.58

4

PLATE, MOUNT UPPER | LT-A400FK8/FK9/FUL0

41990-27H00

Unavailable

4

PLATE, MOUNT UPPER | LT-A400FL0

41990-27H10

$38.45

5

BOLT

09103-08441

$1.58

6

PROTECTOR,FRONT This part replaces 42521-27H00.

42521-27H00-291

$118.60

7

PROTECTOR,ENGINE This part replaces 42511-38F02.

42511-38F04

$28.32

8

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

9

PLATE,BATTERY

41561-27H00

$20.02

10

BOLT

01550-0616A

$1.97
