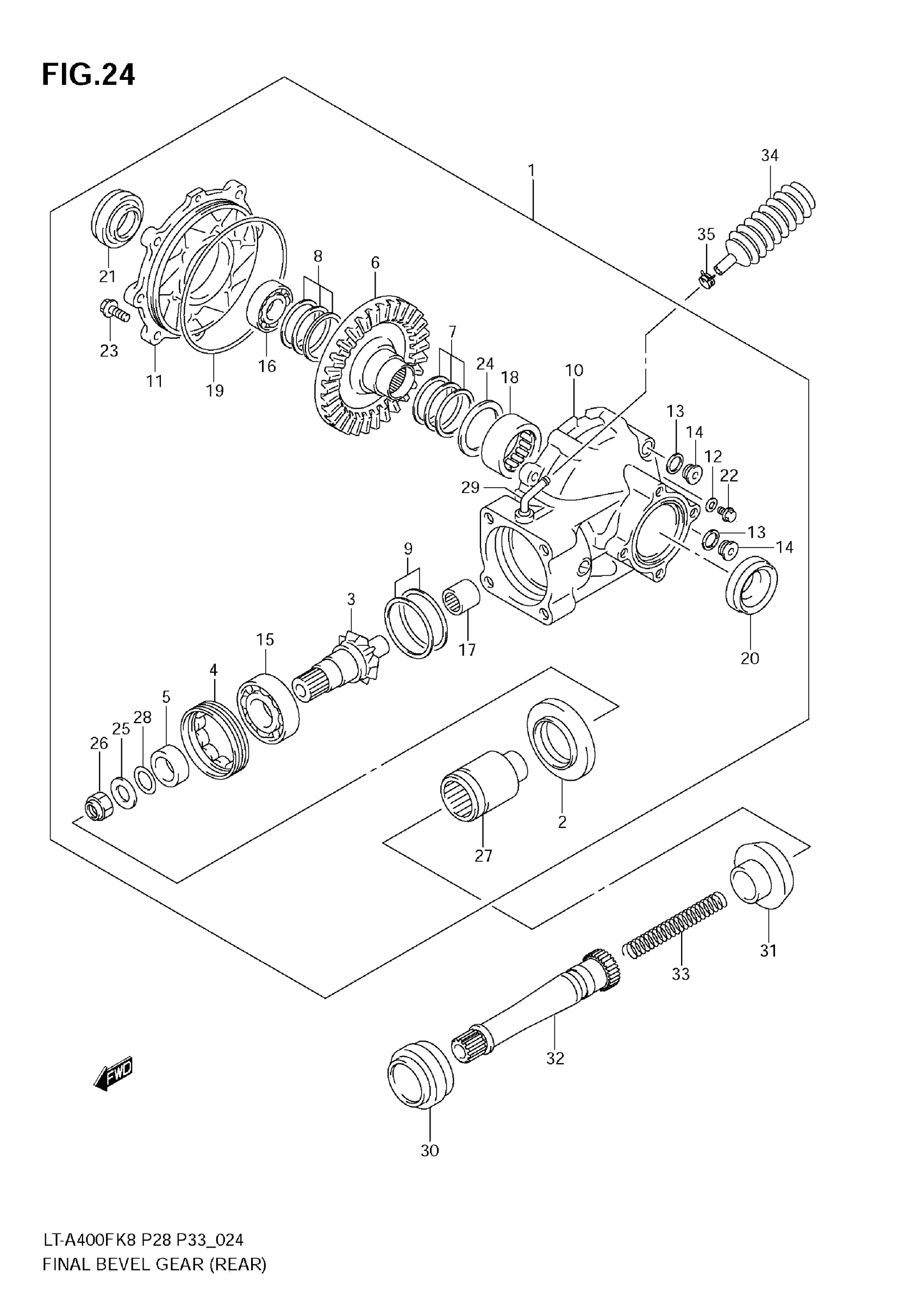

Suzuki LT-A400FK8 (2010) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL

27410-38F50

$1,706.95

2

SEAL, FINAL DR BRG

27156-27H00

$33.73

3

GEAR, FINAL DRIVEN BEVEL

27311-27HM0

$290.53

4

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

5

SPACER, RR FINAL DR GR

27316-38FM0

$27.40

6

GEAR, FINAL DRIVEN BEVEL

27321-27HM0

$348.92

7

SHIM SET, FINAL DRIVEN, LH | T:0.30/0.35/0.40 0.50/0.60

27326-09810

$15.27

8

SHIM SET, FINAL DRIVEN, RH | T:0.30/0.35/0.40 0.50/0.60

27326-18810

$15.00

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40 0.50/0.60

27445-24810

$28.18

10

CASE, RR FINAL GR

27450-27HM0

$684.15

11

CASE, RR FINAL DRIVEN, RH

27461-38FM0

Unavailable

12

GASKET, OIL CHECK BOLT | 6.2X13X1.2

09168-06018

$1.77

13

GASKET, OIL DRAIN PLUG | 16X22X2.0

09168-16002

$1.91

14

PLUG, OIL

09248-16012

$4.64

15

BEARING, FINAL DR GEAR

27405-38FN0

$86.82

16

BEARING, FINAL DRIVEN, RH

27405-38FP0

$113.25

17

BEARING, FINAL DR PILOT

27405-38FR0

$62.48

18

BEARING, FINAL DRIVEN, LH

27405-38FS0

$72.73

19

O RING, BEARING CASE, RH

27405-38FT0

$16.65

20

OIL SEAL, FINAL DRIVEN, LH

09283-38009

$17.33

21

OIL SEAL, FINAL DRIVEN, RH

09283-42011

$12.61

22

BOLT, OIL CHECK

27401-38FM0

$3.70

23

BOLT, RR FINAL GR

27401-38FN0

Unavailable

24

WASHER, FINAL DRIVEN, LH

27407-38FN0

$9.67

25

WASHER (16X30X3)

09160-16026

$5.00

26

NUT

09159-16003

$4.00

27

COUPLING, RR FINAL

27171-27HM0

$227.05

28

O RING, COUPLING

27405-27HM0

$41.63

29

UNION, BREATHER

09364-08009

$9.50

30

BOOT,RR PROP SHAFT This part replaces 27153-27H00.

27153-27H01

$4.60

31

BOOT,JOINT SHAFT This part replaces 27153-27H20.

27153-27H21

$10.73

32

SHAFT, RR PROP | MODEL K8/K9

27155-27H00

$318.28

32

SHAFT,REAR PROPELLER | MODEL L0

27155-27H10

$62.59

33

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.98

34

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

35

CLAMP

09401-08411

$1.78
