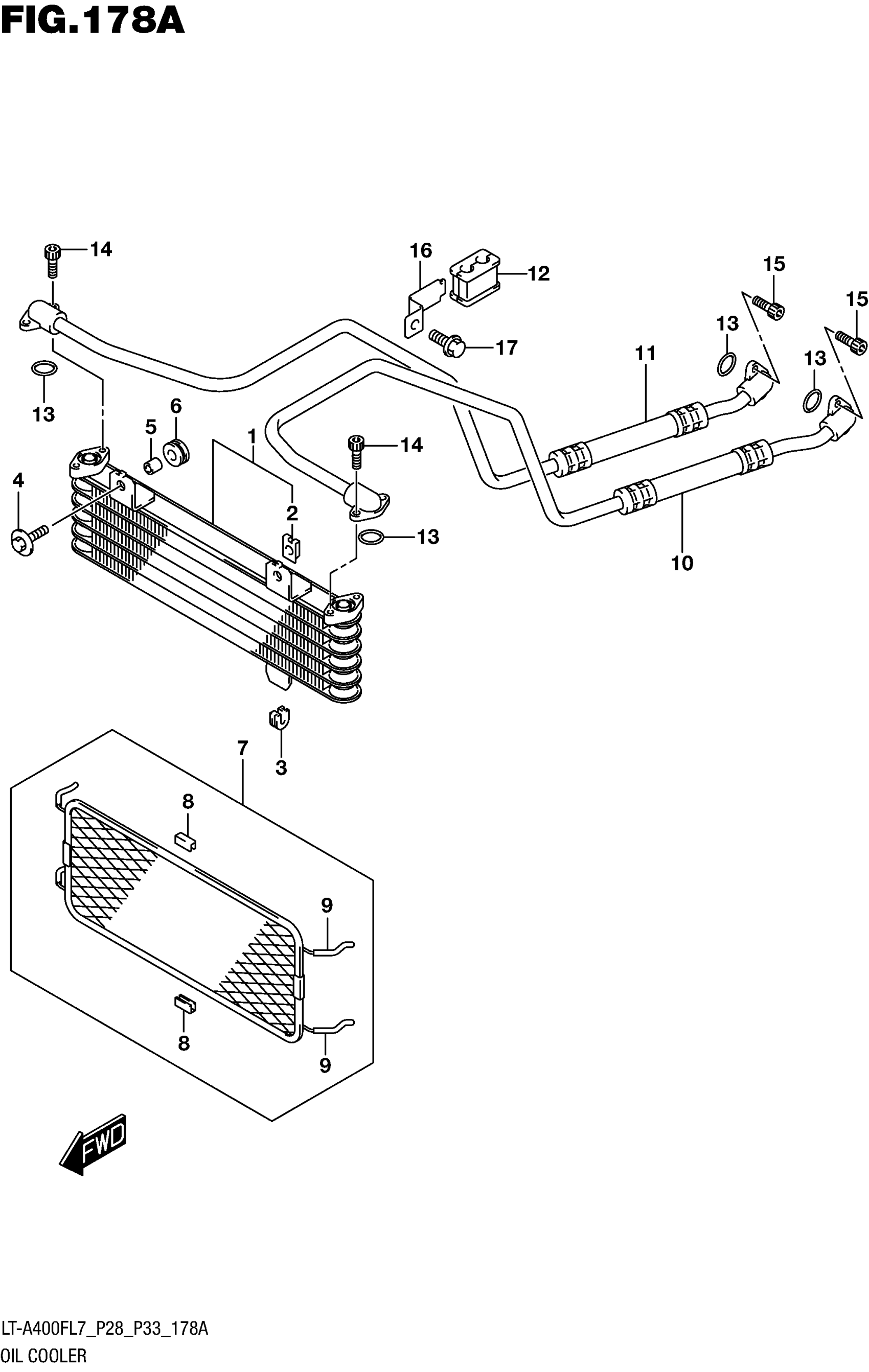

Suzuki LT-A400FCL7 ASI, (XD3 CAMO) (2017) OIL COOLER (LT-A400FL7 P28) Diagram

COOLER ASSY,OIL This part replaces 16600-38F20.

16600-38F22

$172.62

.NUT

17802-14F00

$3.38

CUSHION, OIL COOLER

16628-27A00

$2.92

BOLT (6X25)

09116-06093

$2.43

SPACER (6.5X10X10)

09180-06310

$1.91

CUSHION

09320-10015

$2.54

GURD,OIL COOLER This part replaces 16650-27H00.

16650-27H01

$83.55

.PROTECTOR, CENTER

16654-27H00

Unavailable

.HOSE (3X5X600) | L:600->40 This part replaces 09352-30503-600.

09352-30504-600

$4.91

HOSE,OIL COOLER INLET

16460-38F10

$59.93

HOSE,OIL COOLER OUTLET

16470-38F10

$60.37

GROMMET,OIL HOSE This part replaces 16468-38F00.

16468-38F01

$7.48

O RING (D:2.4,ID:12.3)

09280-12008

$2.76

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

BOLT (6X16)

09106-06073

$2.39

CLAMP,OIL HOSE

16490-38F00

Unavailable

BOLT

01550-0612A

$1.97
