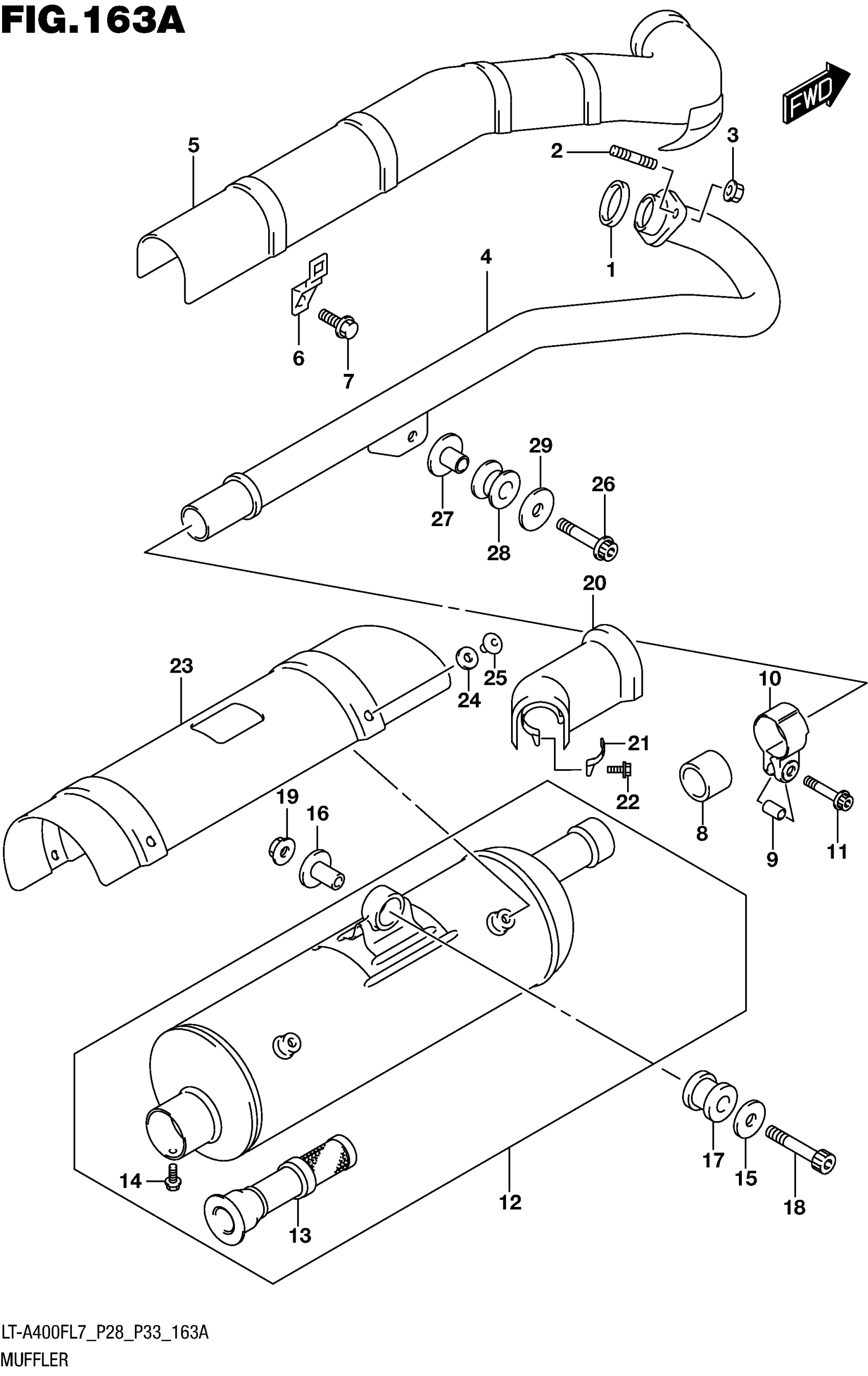

Suzuki LT-A400FCL7 ASI, (XD3 CAMO) (2017) MUFFLER (LT-A400FL7 P28) Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$7.22

2

BOLT,STUD

01421-0825A

$2.03

3

NUT

08319-3108A

$2.32

4

PIPE,EXH

14150-27H00

$187.08

5

COVER, EXHAUST PIPE FRONT

14180-38F50

$128.72

6

CLAMP,EXH PIPE COVER

14185-38F10

$5.88

7

BOLT

01550-0612A

$1.97

8

CONNECTOR, MUFFLER

14771-38F00

$23.13

9

SPACER

14458-45G01

$6.92

10

CLAMP, CONNECTOR

14459-38F10

$18.87

11

BOLT

07120-0835A

$3.55

12

BODY,MUFFLER This part replaces 14310-38F40.

14310-38F41

$742.30

13

.ARRESTER

14850-38F30

$89.92

14

.BOLT

07120-0508B

$3.05

15

WASHER (8.5X30X2.3)

09160-08503

$2.50

16

SPACER (8.6X12X24.2)

09180-08152

$5.83

17

CUSHION

09320-12082

$40.33

18

BOLT

07130-0845A

$4.32

19

NUT

08319-3108A

$2.32

20

COVER,MUF FR

14790-27H00

$44.97

21

CLAMP,EXH PIPE COVER

14185-38F10

$5.88

22

BOLT

01550-0612A

$1.97

23

COVER,MUF RR

14880-38F10

$58.65

24

GASKET (5.8X13X1.4)

09168-06120

$2.92

25

SCREW (6X10)

09139-06076

$2.42

26

BOLT (8X35)

09106-08133

$3.89

27

SPACER (8.6X12X17.5)

09180-08151

$5.18

28

CUSHION

09320-12043

$7.98

29

WASHER (8.5X28X1.6)

09160-08135

$2.35
