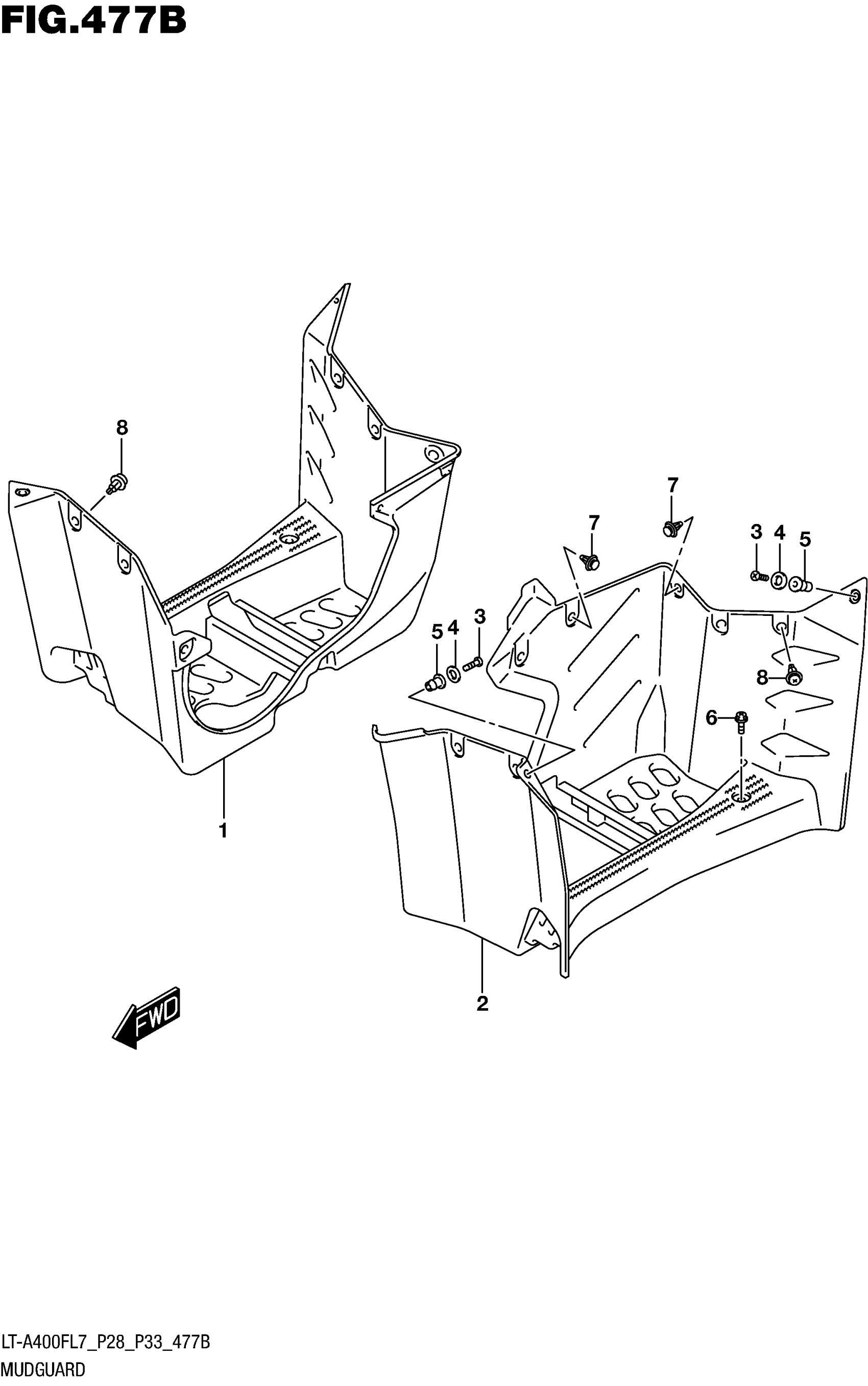

Suzuki LT-A400FCL7 ASI, (XD3 CAMO) (2017) MUDGUARD (LT-A400FL7 P33) Diagram

#

Description

Price

1

MUDGUARD,FOOTREST,R (BLACK) This part replaces 63331-27H00-291.

63331-27H02-291

$36.88

2

MUDGUARD,FOOTREST,L (BLACK) This part replaces 63341-27H00-291.

63341-27H02-291

$53.63

3

SCREW

02142-0520B

$1.77

4

WASHER (5.5X20X1.4)

09160-05046

$1.90

5

NUT

09159-05019

$6.44

6

BOLT (6X16.5)

09111-06094

$2.06

7

CLIP

09409-08335

$2.44

8

CLIP

09409-10306

$2.80
