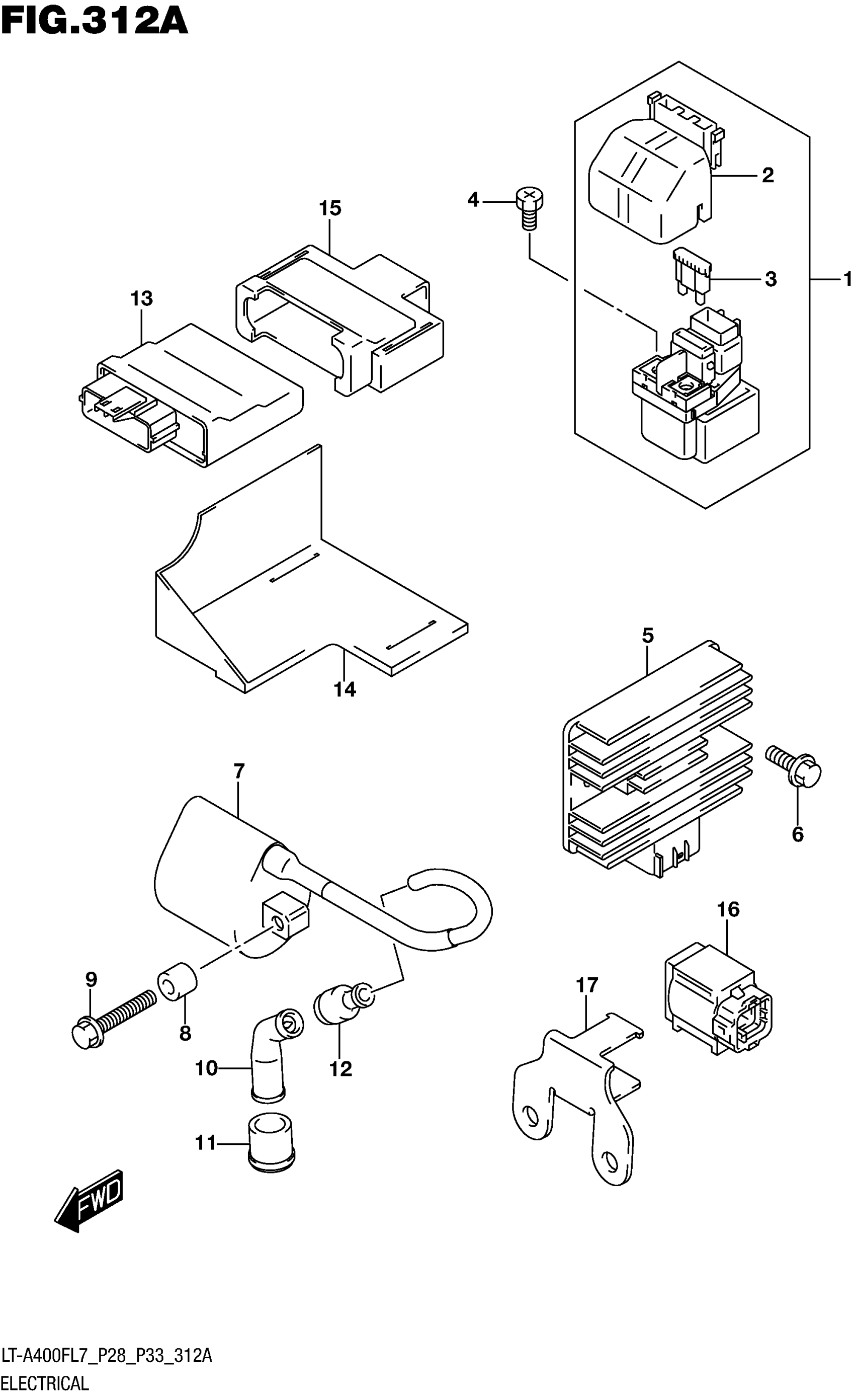

Suzuki LT-A400FCL7 ASI, (XD3 CAMO) (2017) ELECTRICAL (LT-A400FL7 P28) Diagram

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

.COVER

31861-38G00

$4.88

.FUSE (30A)

09481-30501

$2.32

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-42F10

$238.72

BOLT

01550-0620A

$1.97

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

$119.72

SPACER (6X12X10)

09180-06095

$3.93

BOLT

01547-0630B

$2.73

CAP, SPARK PLUG

33510-43010

$24.99

SEAL, SPARK PLUG

33541-44D00

$5.30

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT,FI This part replaces 32920-27HB1.

32920-27HD1

$521.92

PROTECTOR, FI CONTROL UNIT

32942-27HA0

Unavailable

HOLDER, FI CONTROL UNIT

32981-27H00

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

BRACKET,FUEL CUT SENSOR

33961-27H00

Unavailable
