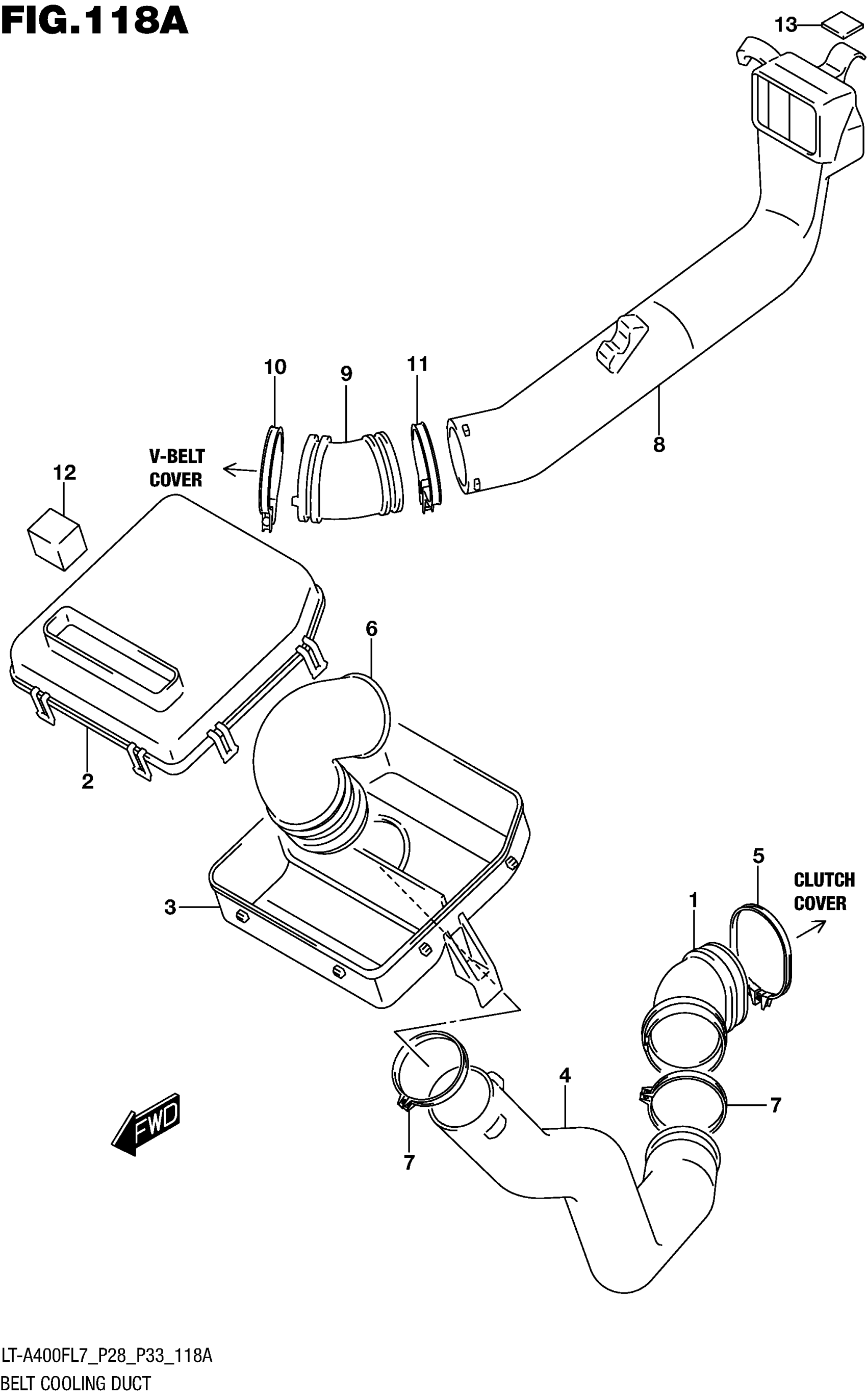

Suzuki LT-A400FCL7 ASI, (XD3 CAMO) (2017) BELT COOLING DUCT Diagram

#

Description

Price

1

CONNECTOR,CLG DUCT FR This part replaces 11386-38F00.

11386-38F01

$18.87

2

BOX,INDUCTION UPPER

11393-27H00

$37.97

3

BOX,INDUCTION LOWER

11391-38F00

$37.62

4

DUCT,BELT CLG FR NO.1

11387-38F00

$37.72

5

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

6

DUCT,BELT COOLING FR NO.2 This part replaces 11388-38F00.

11388-38F01

$25.42

7

CLAMP

09402-76208

$6.62

8

DUCT, BELT COOLING DUCT REAR

11398-27H00

$50.40

9

CONNECTOR,CLG DUCT RR This part replaces 11397-38F00.

11397-38F01

$19.20

10

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

11

CLAMP

09402-76208

$6.62

12

CUSHION,INDUCTION BOX

11394-27H00

$3.90

13

CUSHION,BELT CLG DUCT RR

11395-27H00

Unavailable
