Description

Price

1

FACE,FIXED DRIVE

21110-38F00

$152.97

2

FACE,MOVABLE DRIVE

21120-38F00

$141.40

3

SEAL, MOVABLE DRIVE

21124-14F00

$10.17

4

SPACER,MOVABLE DRIVE

21125-38F01

$44.15

5

FACE,FIXED DRIVEN

21210-38F02

$399.87

6

FACE,MOVABLE DRIVEN

21240-38F02

$382.13

7

SPRING,MOVABLE DRIVEN

21243-38F01

$51.65

8

O-RING,MOVABLE DRIVEN

21245-38F00

$6.08

9

SEAL,MOVABLE DRIVEN OIL

21247-38F00

$11.95

10

PIN,MOVABLE DRIVEN

21248-15F01

$4.76

11

SPACER,MOVABLE DRIVEN PIN

21249-15F00

$5.38

12

PLATE,MOVABLE DRIVE

21431-38F00

$49.02

13

SHEET,MOVABLE DRIVEN

21471-38F01

$19.15

14

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$7.22

15

NUT,DRIVEN PULLEY SPRING

21518-38F00

$32.67

16

HOLDER, MOVABLE DRIVEN

21519-38F00

$21.03

17

ROLLER,MOVABLE DRIVE

21650-15F20

$15.45

18

NUT

09140-16032

$6.19

19

V-BELT, DRIVE

27601-38F00

$156.22

20

HOUSING,CLUTCH

21100-38F00

$326.55

21

SPACER, FIXED DRIVE LH

21102-38F00

$47.40

22

SEAL,CLUTCH HOUSING SPACER OI This part replaces 21104-09F56.

21104-09F60

$60.79

23

OIL SEAL (12X32X5)

09283-12008

$9.01

24

CIRCLIP

08331-41329

$2.42

25

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$138.71

26

CLUTCH ASSY, SHOE

21500-38F10

$409.02

27

RETAINER, BEARING

24741-21A00

$2.81

28

SCREW (6X12)

09125-06122

$2.44

29

BEARING (40X80X18)

09262-40010

$113.50

30

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

31

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

32

NUT

09159-18023

$14.18

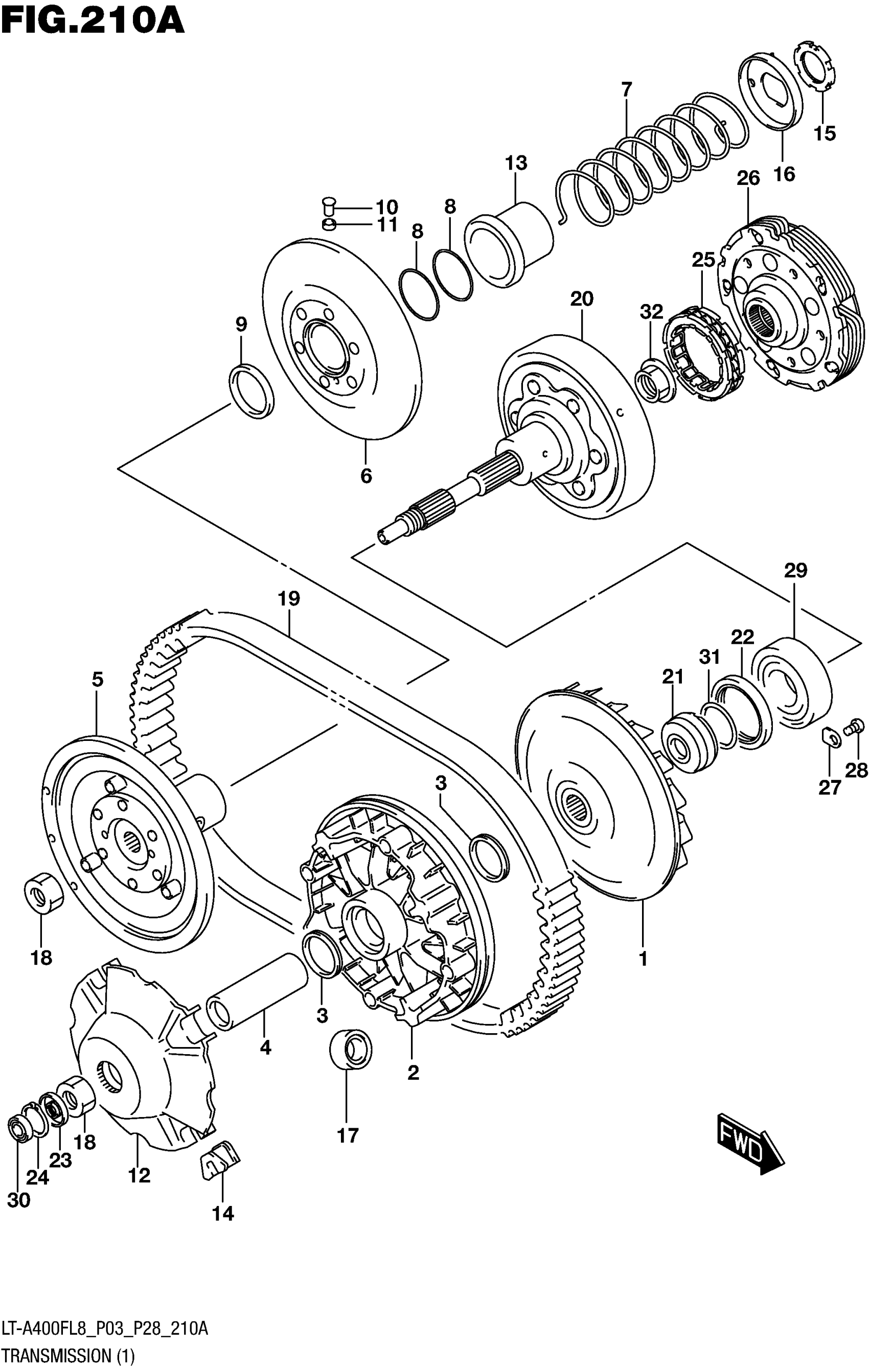

Suzuki LT-A400F (ASI, RED/GREEN) (2018) TRANSMISSION (1) Diagram
