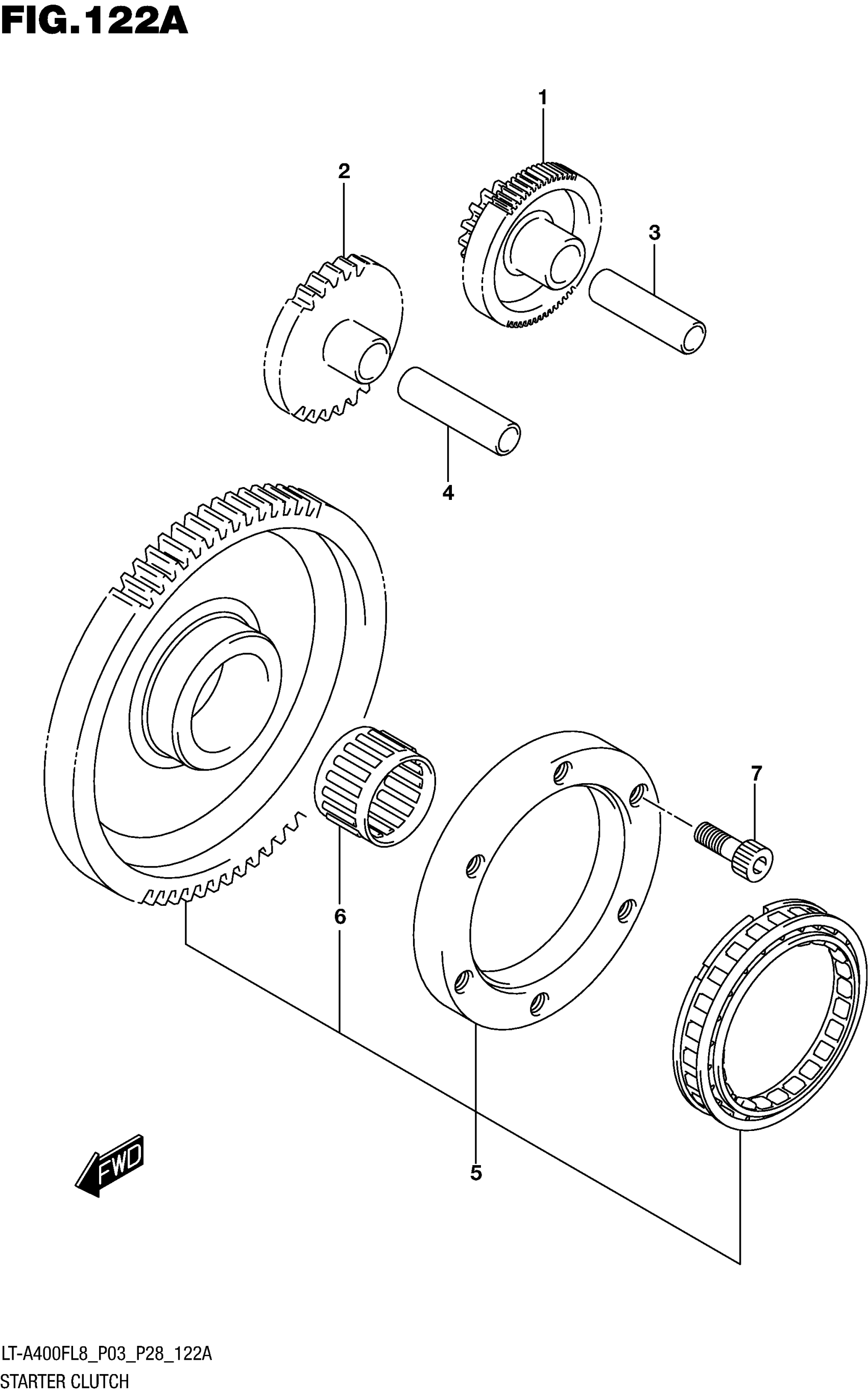

Suzuki LT-A400F (ASI, RED/GREEN) (2018) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-38F00

$88.98

1

(NT:10/56)

12611-38F00

$88.98

2

GEAR, STARTER IDLE NO.2

12612-12D01

$83.65

2

(NT:27)

12612-12D01

$83.65

3

PIN (8X12X59)

09206-12005

$15.12

4

PIN (8X12X45.5)

09206-12006

$9.43

5

CLUTCH SET, STARTER ONE WAY

12600-38851

$347.67

5

(NT:73)

12600-38851

$347.67

6

.BEARING (29X36X18)

09263-29008

$47.88

7

BOLT (8X20)

09106-08106

$2.72
