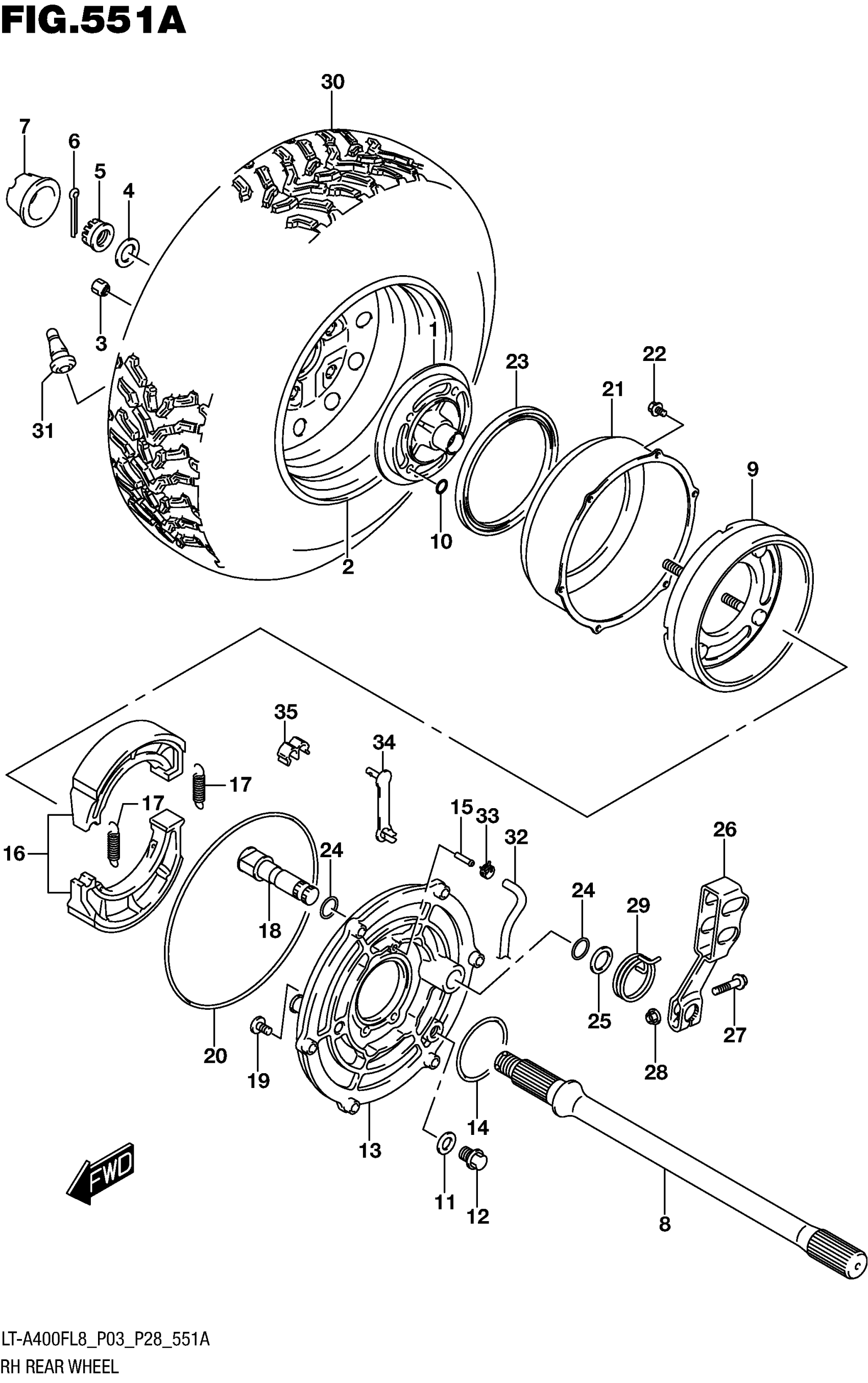

Suzuki LT-A400F (ASI, RED/GREEN) (2018) RH REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR,R

64111-38F32

$137.89

2

RIM, REAR WHEEL (12X7.5AT)

65310-38F40-291

$202.98

2

(BLACK)

65310-38F40-291

$202.98

3

NUT

09140-10021

$2.01

4

WASHER,HUB

64723-38F00

$8.60

5

NUT

09141-20008

$17.00

6

COTTER PIN

04111-4035A

$1.37

7

CAP,WHEEL CENTER

54725-09F01

$9.11

8

AXLE,REAR,R

64711-38F20

$146.80

9

DRUM, REAR BRAKE

64120-38F00

$326.57

10

O RING (D:1.9,ID:9.8)

09280-10016

$3.04

11

WASHER (10X17X2)

09161-10007

$1.55

12

PLUG (10X12)

09247-10008

$1.97

13

PANEL, REAR BRAKE ANCHOR

64210-38F10

Unavailable

14

O-RING This part replaces 09280-63001.

09280-63005

$2.19

15

UNION

09364-04004

$13.58

16

SHOE SET, REAR BRAKE

64400-38830

$45.36

17

SPRING, SHOE

55420-30000

$4.22

18

CAM,REAR BRAKE

64440-09F00

$22.30

19

BOLT (8X20)

09106-08161

$4.85

20

O RING (D:3.7,ID:186)

09280-00038

$14.23

21

COVER, REAR BRAKE DRUM

64123-38F00

$133.27

22

BOLT

01547-0612A

$2.01

23

SEAL, REAR BRAKE DRUM COVER

64124-38F00

$127.54

24

O RING, REAR BRAKE CAM DUST

64443-18A00

$1.87

25

WASHER (16X26X1)

09160-16033

$2.80

26

LEVER, REAR BRAKE CAM

64451-09F00

$38.08

27

BOLT

01550-0635A

$2.31

28

NUT

08316-1006A

$2.19

29

SPRING, REAR BRAKE CAM LEVER

64484-38F00

$8.33

30

TIRE,REAR (AT25X10-12) | AT489 CARLISLE

65110-31G30

$326.70

31

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

32

HOSE, REAR BRAKE BREATHER

64275-27H00

$7.17

33

CLIP

09401-06405

$2.67

34

CLAMP (L:33)

09407-03401

$2.81

35

CLIP

09408-00200

$2.98
