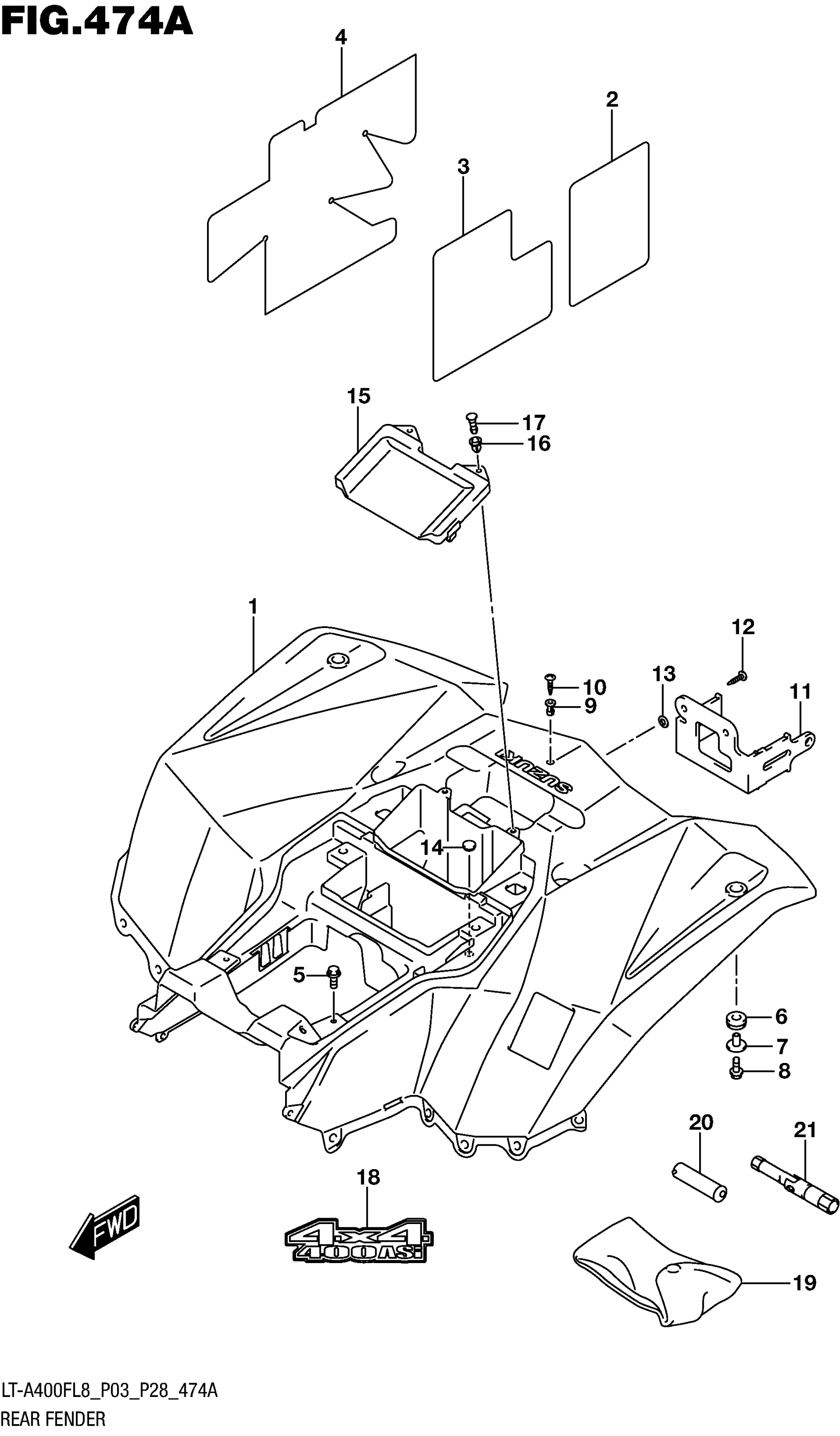

Suzuki LT-A400F (ASI, RED/GREEN) (2018) REAR FENDER Diagram

#

Description
Price

1-1

FENDER,REAR (RED) This part replaces 63111-27H02-YT9.

63111-27H03-YT9

$367.93

1-2

FENDER,REAR (GREEN) This part replaces 63111-27H02-YLG.

63111-27H03-YLG

$355.02

1-3

FENDER, REAR (CAMOUFLAGE)

63111-27H12-PHW

$725.83

1-4

FENDER, REAR (BLACK)

63111-27H30-QFA

$369.00

2

SHIELD, REAR FENDER This part replaces 63122-27H20.

63122-27H10

$16.32

3

SHIELD, REAR FENDER

63123-27H20

$17.87

4

SHIELD, REAR FENDER This part replaces 63124-27H20.

63124-27H10

$16.05

5

BOLT (6X16)

09116-06006

$1.88

6

CUSHION (11.5X32X12.2)

09320-11021

$3.77

7

WASHER

09169-06074

$7.49

8

BOLT

01550-0625A

$1.97

9

NUT

09159-05019

$6.44

10

SCREW

02142-0520B

$1.77

11

PLATE,CDI UNIT

47413-27H00

$8.01

12

RIVET

09229-04020

$2.56

13

WASHER

08322-0104A

$1.92

14

CAP (OD:16)

09250-08018

$3.74

15

COVER,REAR FENDER

63112-27H00

$40.40

16

GROMMET

09409-08329

$2.54

17

PLUNGER

09409-08330

$2.56

18

EMBLEM,RR FENDE This part replaces 68171-27HE0-JLJ.

68171-27HE1-JLJ

$14.15

19

TOOL ASSY

09800-21057

$12.57

20

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

21

SPANNER,BOX (16)

09816-00168

$16.42
