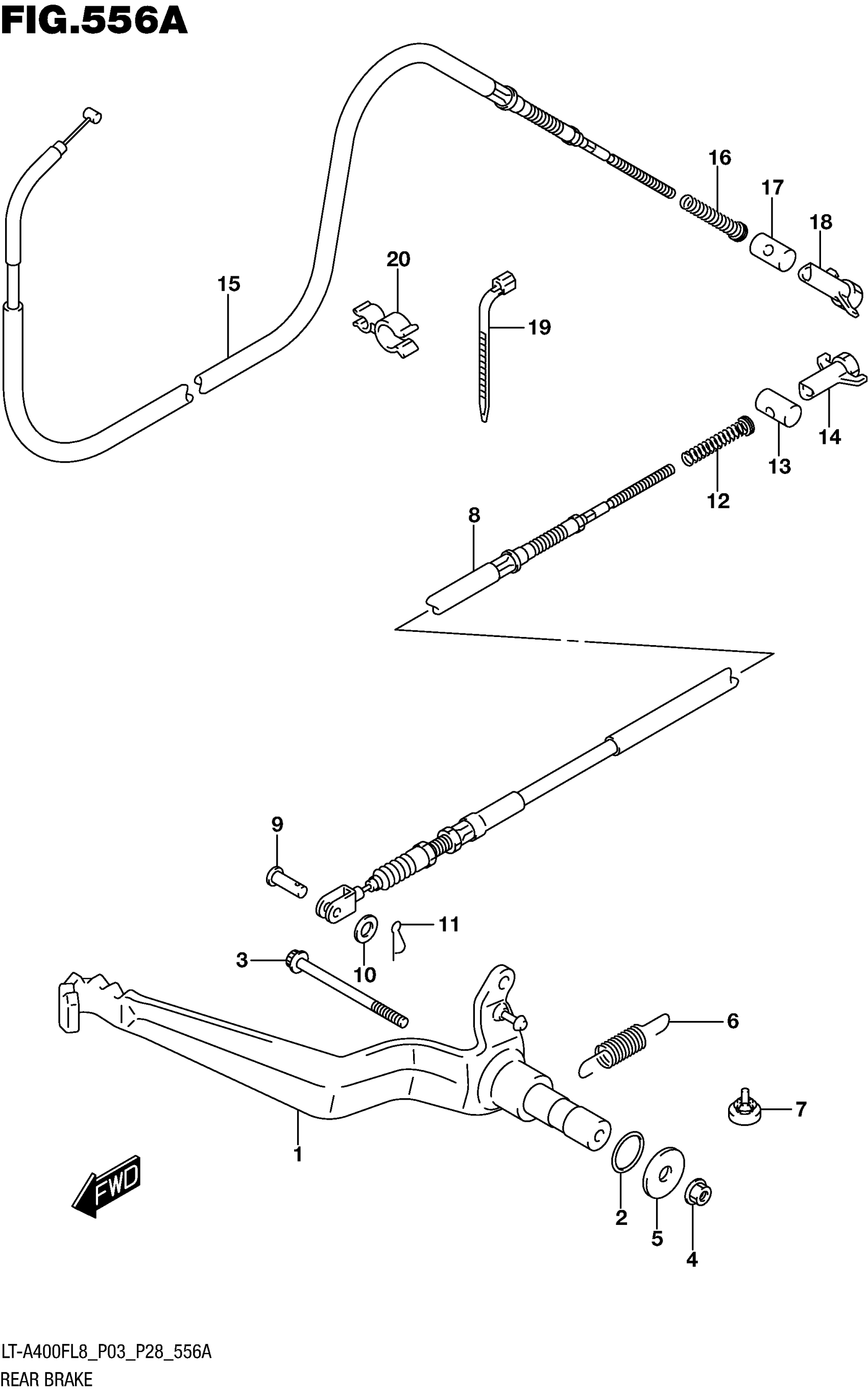

Suzuki LT-A400F (ASI, RED/GREEN) (2018) REAR BRAKE Diagram

#

Description
Price

1

PEDAL,BRAKE

43110-27H00

$65.80

2

O RING (D:2.4,ID:16.8)

09280-17002

$4.62

3

BOLT

01550-0685A

Unavailable

4

NUT

08319-3106A

$2.01

5

WASHER (6.5X28X1.6)

09160-06136

$1.83

6

SPRING

09443-12019

$4.07

7

CUSHION This part replaces 09321-08022.

09321-08026

$0.74

8

CABLE,REAR BRAKE

58510-27H10

$44.84

9

PIN (5.8X17.5)

09200-05001

$1.52

10

WASHER

08322-0106B

$2.24

11

CLIP

09385-06012

$1.89

12

SPRING

09440-08042

$2.80

13

PIN

09209-13006

$4.73

14

NUT

09150-06015

$3.26

15

CABLE,PARKING BRAKE This part replaces 58810-27H10.

58810-27H11

$65.23

16

SPRING

09440-08042

$2.80

17

PIN

09209-13006

$4.73

18

NUT

09150-06015

$3.26

19

CLAMP (L:125)

09407-14403

$2.24

20

CLIP

09408-00056

$3.37
