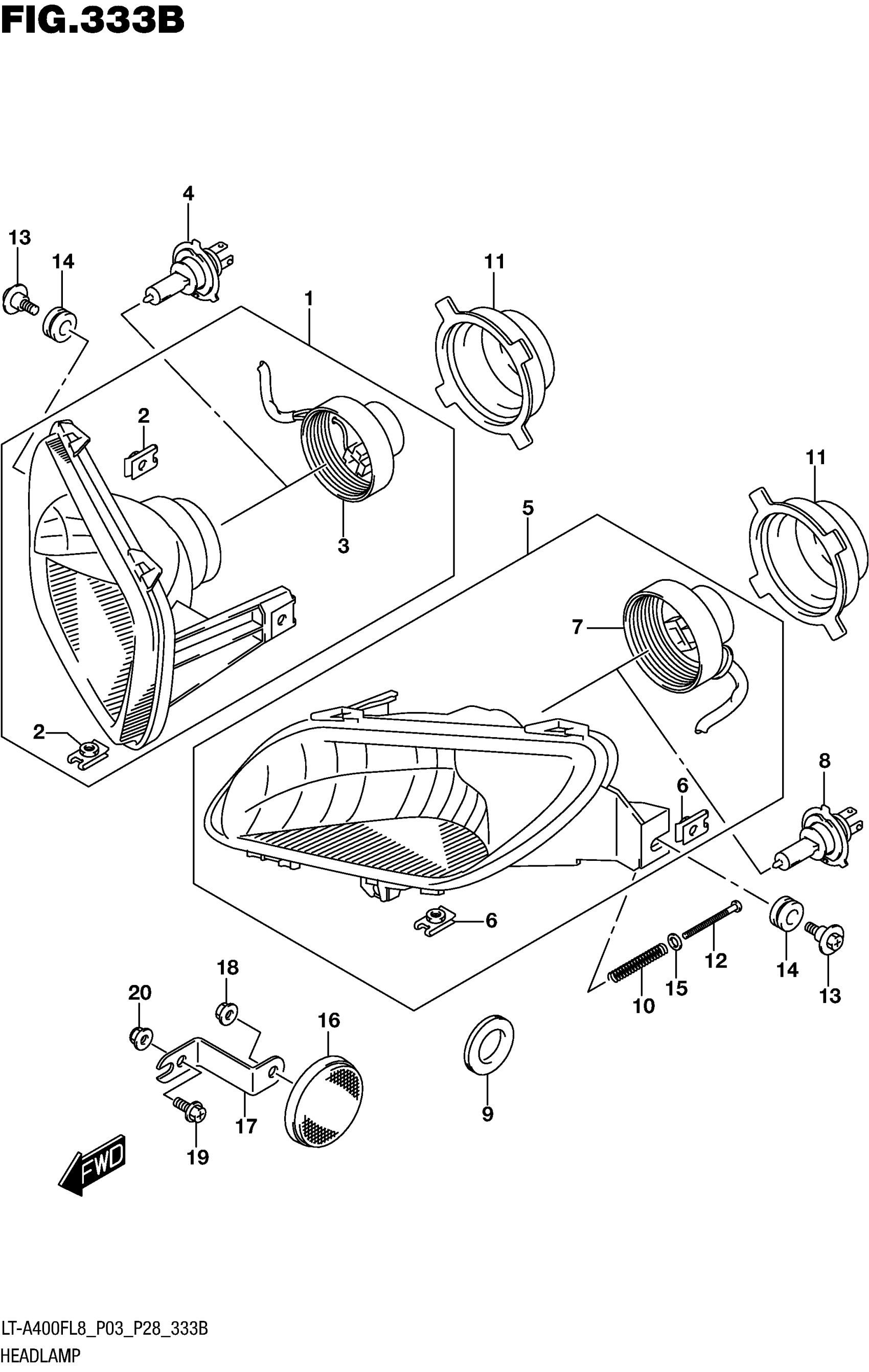

Suzuki LT-A400F (ASI, RED/GREEN) (2018) HEADLAMP (LT-A400FL8 P28) Diagram

Description

Price

HEADLAMP ASSY, RH

35100-31G92-999

$102.70

.NUT (M6)

35157-31G90

$5.30

.CORD ASSY, RH

35171-31GM1

$30.10

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

HEADLAMP ASSY, LH

35300-31G92-999

$102.70

.NUT (M6)

35157-31G90

$5.30

.CORD ASSY, LH

35171-31GH1

$38.48

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

GROMMET

09308-07011

$2.62

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

SCREW (4X50)

09125-04031

$2.28

SCREW (6X22.5)

09139-06118

$3.25

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

WASHER

08322-0104A

$1.91

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

BRACKET,FRONT SIDE RR

35956-27H00

$9.12

NUT

08316-1005B

$2.50

SCREW

02162-0516B

$2.53

NUT

08319-3105B

$3.55
