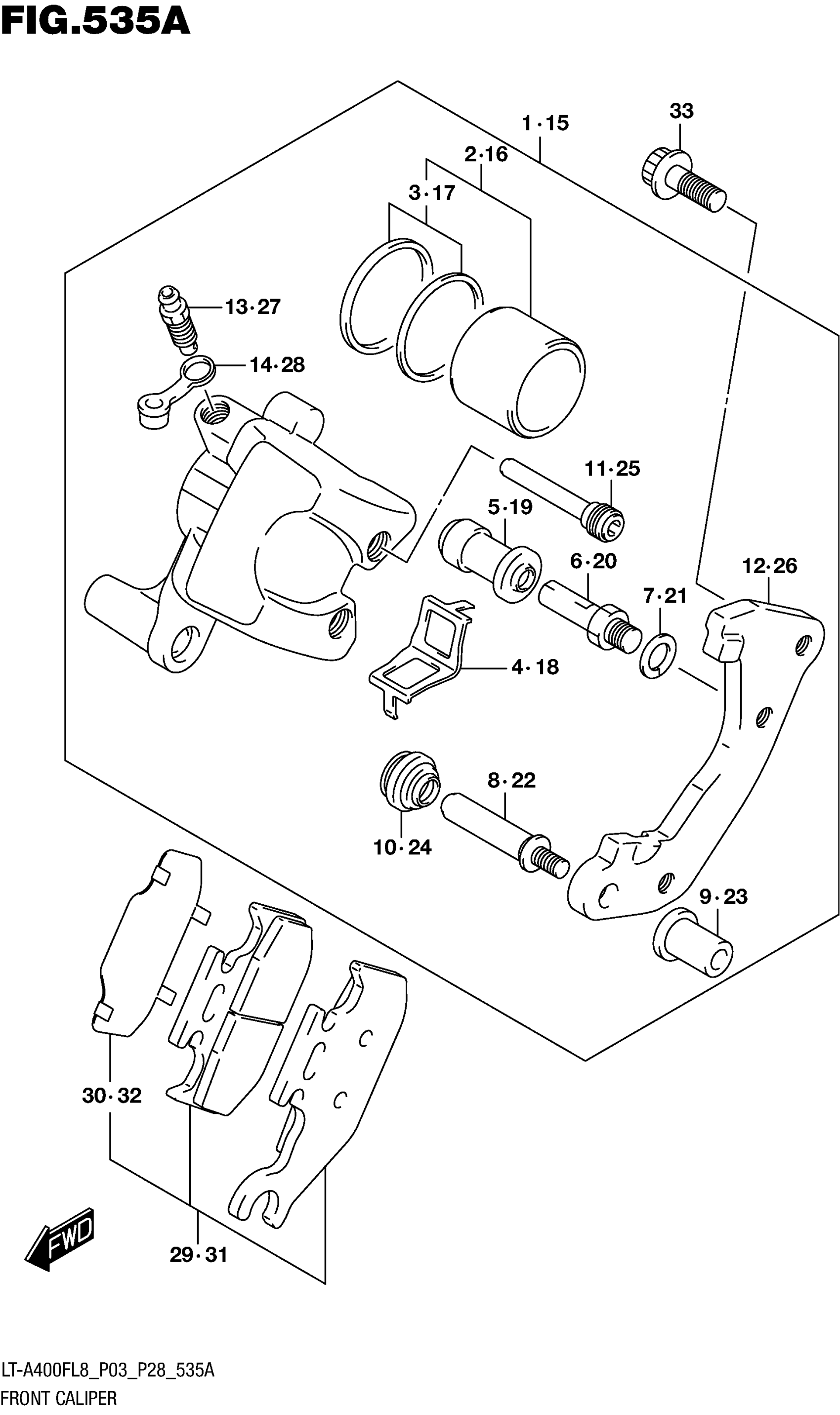

Suzuki LT-A400F (ASI, RED/GREEN) (2018) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-31G00-999

$363.38

2

.PISTON SET

59300-13810

$42.57

3

..SEAL SET,PISTON

69100-13820

$8.02

4

.SPRING, PAD

59315-27C00

$15.83

5

.BOOT

59386-13A00

$7.28

6

.PIN

59382-13A00

$7.24

7

.WASHER

59314-13A00

$2.28

8

.PIN

59387-00B20

$17.46

9

.NUT

59388-00B20

$20.13

10

.BOOT

59303-14500

$5.06

11

.PIN,HANGER

59145-39D00

$24.33

12

.BRACKET, RH

59151-31G00

$60.38

13

.BLEEDER

59121-01A00

$7.99

14

.CAP

59122-46H00

$4.17

15

CALIPER ASSY,FRONT,L

59300-31G01-999

$363.38

16

.PISTON SET

59300-13810

$42.57

17

..SEAL SET,PISTON

69100-13820

$8.02

18

.SPRING, PAD

59315-27C00

$15.83

19

.BOOT

59386-13A00

$7.28

20

.PIN

59382-13A00

$7.24

21

.WASHER

59314-13A00

$2.28

22

.PIN

59387-00B20

$17.46

23

.NUT

59388-00B20

$20.13

24

.BOOT

59303-14500

$5.06

25

.PIN,HANGER

59145-39D00

$24.33

26

.BRACKET, LH

59351-31G00

$60.38

27

.BLEEDER

59121-01A00

$7.99

28

.CAP

59122-46H00

$4.17

29

PAD & SHIM SET,R

59100-31870

$61.52

30

.SHIM

69132-28C00

$10.68

31

PAD & SHIM SET,L

59100-31880

$61.52

32

.SHIM

69132-28C00

$10.68

33

BOLT (8X16)

09106-08174

$3.08
