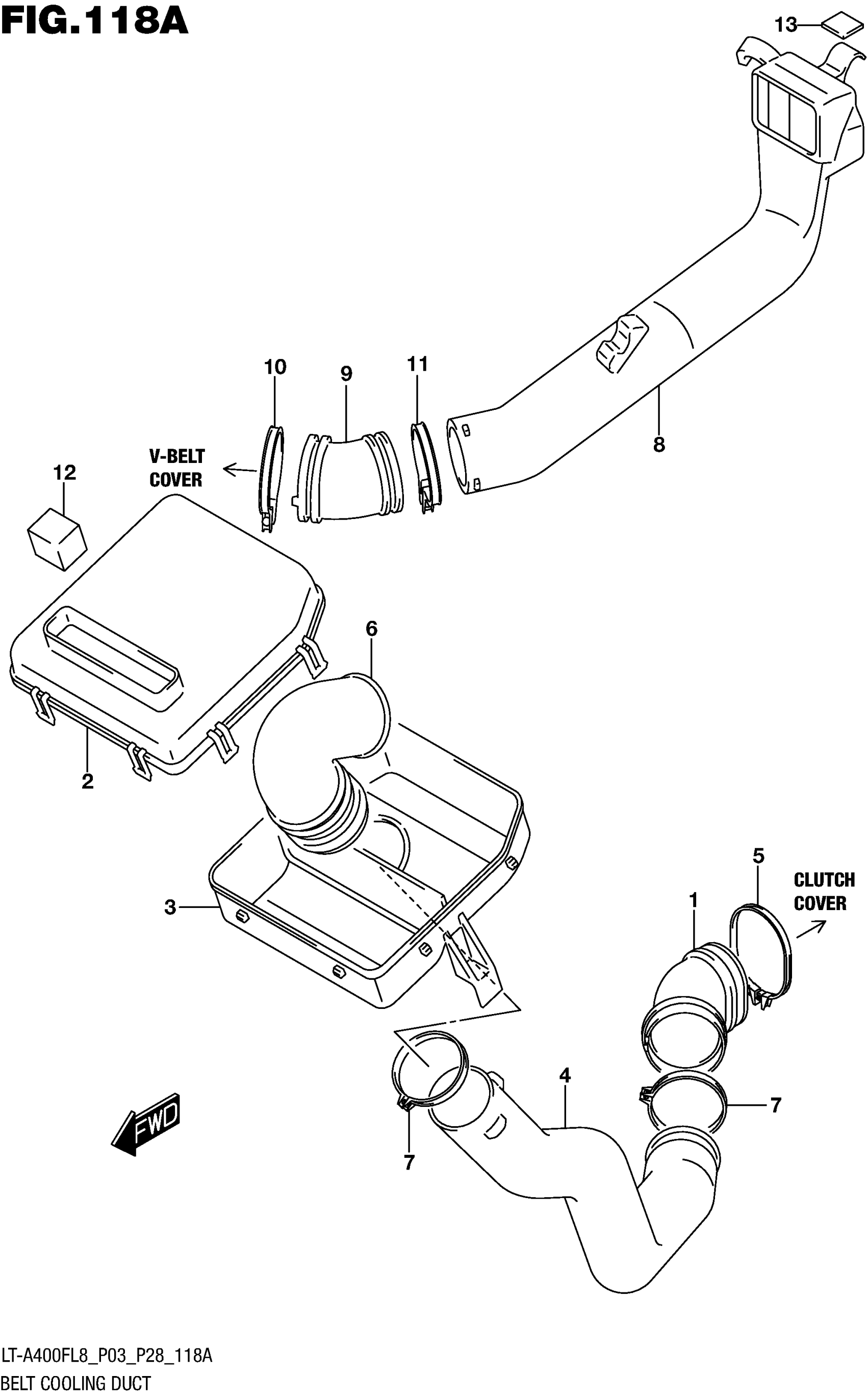

Suzuki LT-A400F (ASI, RED/GREEN) (2018) BELT COOLING DUCT Diagram

#

Description

Price

1

CONNECTOR,CLG DUCT FR This part replaces 11386-38F00.

11386-38F01

$21.28

2

BOX,INDUCTION UPPER

11393-27H00

$42.85

3

BOX,INDUCTION LOWER

11391-38F00

$41.86

4

DUCT,BELT CLG FR NO.1

11387-38F00

$42.57

5

CLAMP,BELT CLG DUCT FR

11389-09F50

$7.73

6

DUCT,BELT COOLING FR NO.2 This part replaces 11388-38F00.

11388-38F01

$28.68

7

CLAMP

09402-76208

$6.06

8

DUCT, BELT COOLING DUCT REAR

11398-27H00

$56.88

9

CONNECTOR,CLG DUCT RR This part replaces 11397-38F00.

11397-38F01

$21.67

10

CLAMP,BELT CLG DUCT FR

11389-09F50

$7.73

11

CLAMP

09402-76208

$6.06

12

CUSHION,INDUCTION BOX

11394-27H00

$2.85

13

CUSHION,BELT CLG DUCT RR

11395-27H00

Unavailable
