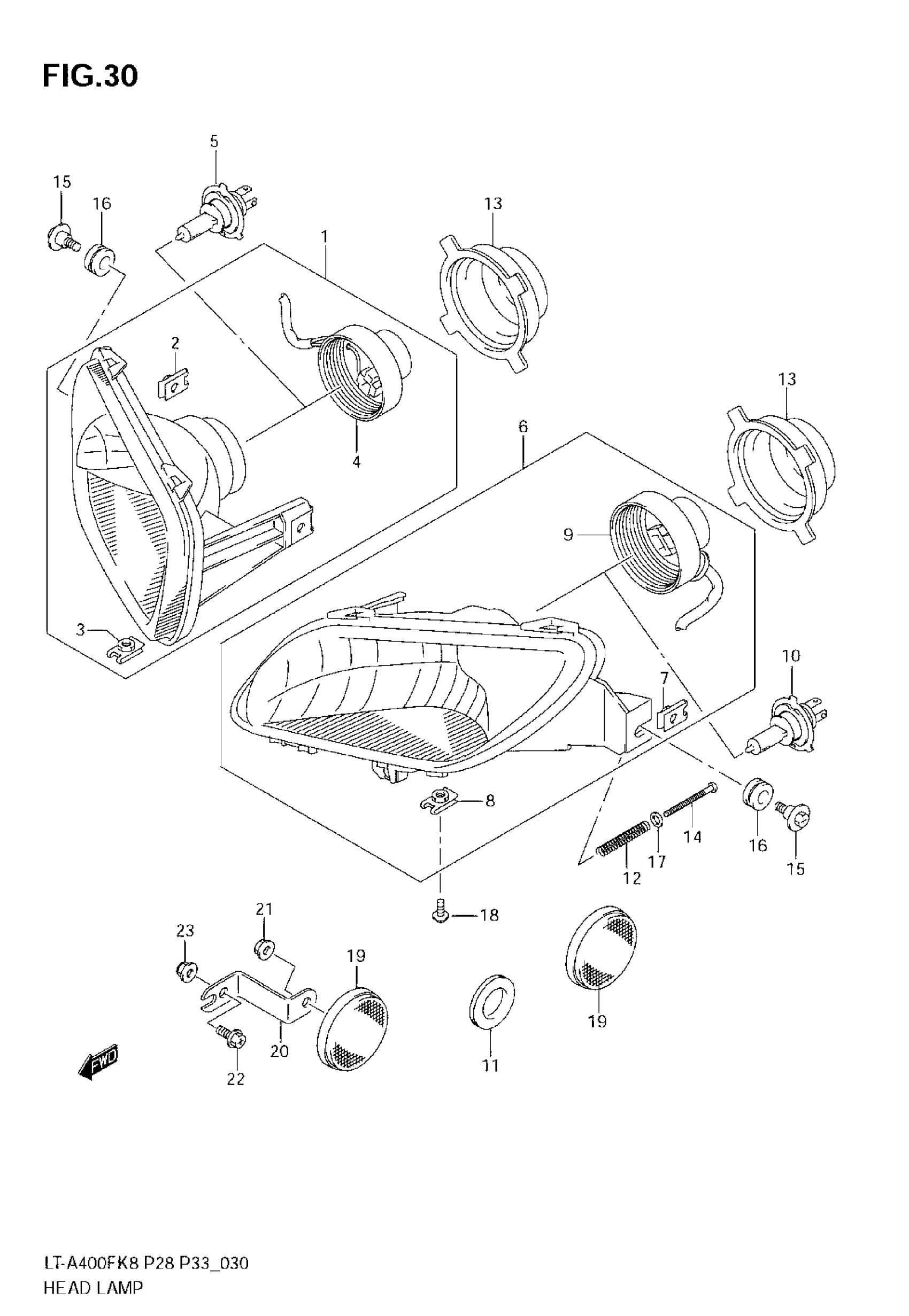

Suzuki LT-A400F (2009) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY, R | Includes Item(s) 2 - 4

35100-31G90-999

Unavailable

2

NUT (M6)

35157-31G90

$5.30

3

NUT (M5)

35157-05G50

$5.98

4

CORD ASSY RH This part replaces 35171-31GM0.

35171-31GM1

$30.10

5

BULB (12V35/35W,HS1)

09471-12101

$64.80

6

HEADLAMP ASSY LH | Includes Item(s) 7 - 9 This part replaces 35300-31G90-999.

35300-31G92-999

$102.70

7

NUT (M6)

35157-31G90

$5.30

8

NUT (M5)

35157-05G50

$5.98

9

CORD ASSY LH This part replaces 35171-31GH0.

35171-31GH1

$38.48

10

BULB (12V35/35W,HS1)

09471-12101

$64.80

11

GROMMET

09308-07011

$2.62

12

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

13

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

14

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

$2.28

15

SCREW, HEADLAMP

09139-06118

$3.25

16

CUSHION

09320-10501

$6.23

17

WASHER, HEADLAMP

08322-0104A

$1.91

18

SCREW (5X16)

09136-05046

$2.45

19

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

$15.23

20

BRACKET,FRONT SIDE RR | E28

35956-27H00

$9.12

21

NUT, FR SIDE RR | E28

08316-1005B

$2.50

22

SCREW, FR SIDE RR BRKT | E28

02162-0516B

$2.53

23

NUT, FR SIDE RR BRKT | E28

08319-3105B

$3.55
