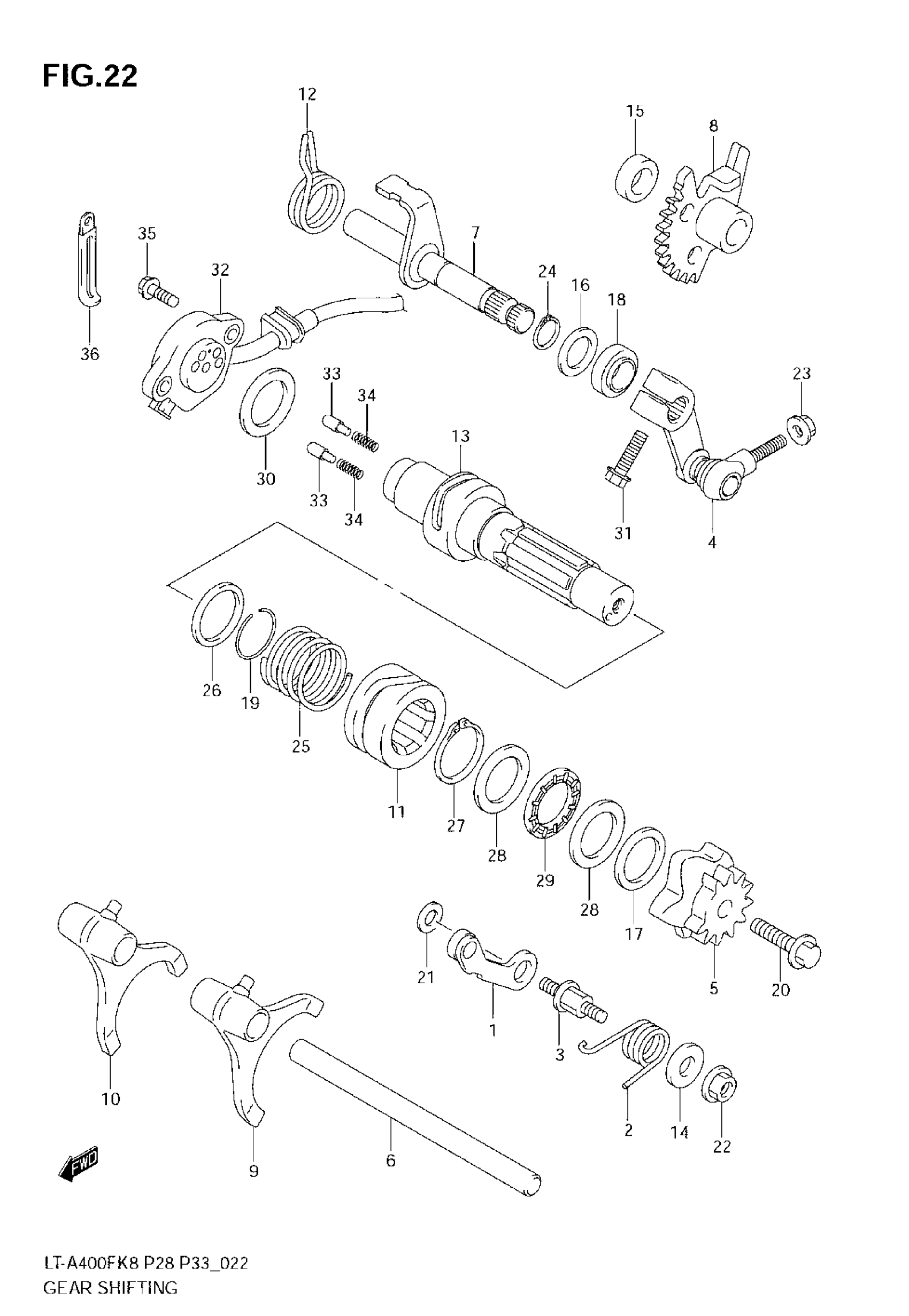

Suzuki LT-A400F (2009) GEAR SHIFTING Diagram

#

Description
Price

1

STOPPER, SHIFT CAM

25350-26D01

$16.22

2

SPRING, GEAR SHIFT CAM

25355-38F00

$4.88

3

SUPPORT, CAM STOPPER

25356-12C00

$17.37

4

ARM, SELECT

25360-11H10

$80.02

5

PLATE, GEAR SHIFT CAM

25381-38F10

Unavailable

6

SHAFT, GEAR SHIFT FORK

25411-18900

$23.07

7

SHAFT,T/M GEAR SHIFT This part replaces 25510-27H00.

25510-27H01

$41.13

8

GEAR, SUB T/M SHAFT

25540-27H00

Unavailable

9

FORK, GEAR SHIFT

29511-44D00

$90.23

10

FORK, SHIFT REVERSE

29511-44D00

$90.23

11

CAM, GEAR SHIFT

29611-27H00

Unavailable

12

SPRING, SHIFT ARM RETURN

29613-31G00

$7.05

13

SHAFT,SUB T/M GEAR SHIFT

29620-27H01

Unavailable

14

WASHER, SPRING STOPPER | 6.5X16X2.30

09160-06022

Unavailable

15

SPACER, SUB T/M GEAR

09180-12100

$5.35

16

WASHER, GEAR SHIFT SHAFT | 12X20X1.0

09181-12167

$2.26

17

WASHER, SHIFT CAM PLATE | 20X28X0.5

09181-20158

$3.03

18

OIL SEAL (12X22X9) | 12X22X9.0

09285-12006

$6.32

19

C RING, T/M CAM STOP

09380-25012

$2.47

20

BOLT, GEAR CAM PLATE

01550-0625B

$2.42

21

WASHER, CAM STOPPER

08211-06141

$1.59

22

NUT, SPRING STOPPER

08316-1006B

$2.50

23

NUT GEAR SHIFT LINK ROD

08310-0006B

$2.34

24

CIRCLIP, GEAR SHIFT SHAFT

08331-3112A

$1.78

25

SPRING, SUB T/M SHIFT CAM

29612-38F00

Unavailable

26

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

$3.32

27

CIRCLIP, SHIFT CAM SPRING

08331-3125A

Unavailable

28

WASHER, SHIFT SHAFT | 20X34X1.0

09181-20251

$2.79

29

BEARING, SUB T/M | 20X35X2

09263-20014

Unavailable

30

WASHER, SHIFT SHAFT

09181-25167

$3.12

31

BOLT, SHIFT LEVER

01550-0620B

$2.39

32

BASE ASSY,GEAR SHIFT TERM

37720-27H00

$142.35

33

CONTACT

09209-05011

$2.20

34

SPRING

09440-04010

$1.54

35

BOLT

07120-0516A

$2.28

36

CLAMP (L:45)

09404-06429

$1.83
