2009 Suzuki LT-A400F Footrest Mudguard Diagram

← All diagrams

Find the part on the Footrest Mudguard diagram for your 2009 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

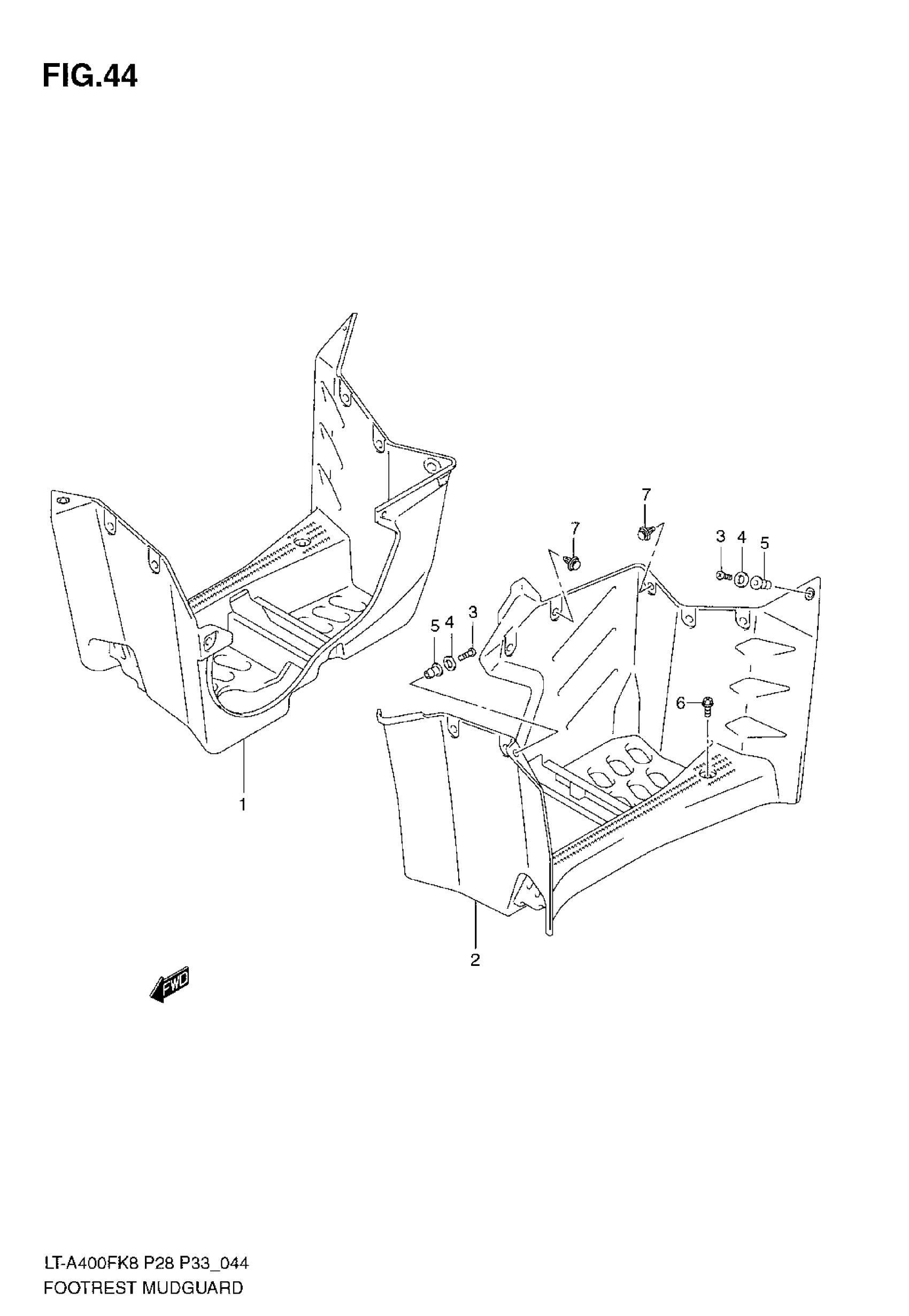

2009 Suzuki LT-A400F Footrest Mudguard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUDGUARD,FOOTREST,R (BLACK) This part replaces 63331-27H00-291.

63331-27H02-291

1
Out of stock

2

MUDGUARD,FOOTREST,L (BLACK) This part replaces 63341-27H00-291.

63341-27H02-291

1
Out of stock

3

SCREW

02142-0520B

12
Out of stock

4

WASHER

09160-05046

12
Out of stock

5

NUT

09159-05019

12
Out of stock

6

BOLT

09111-06095

6
Out of stock

7

CLIP

09409-08335

6
Out of stock
