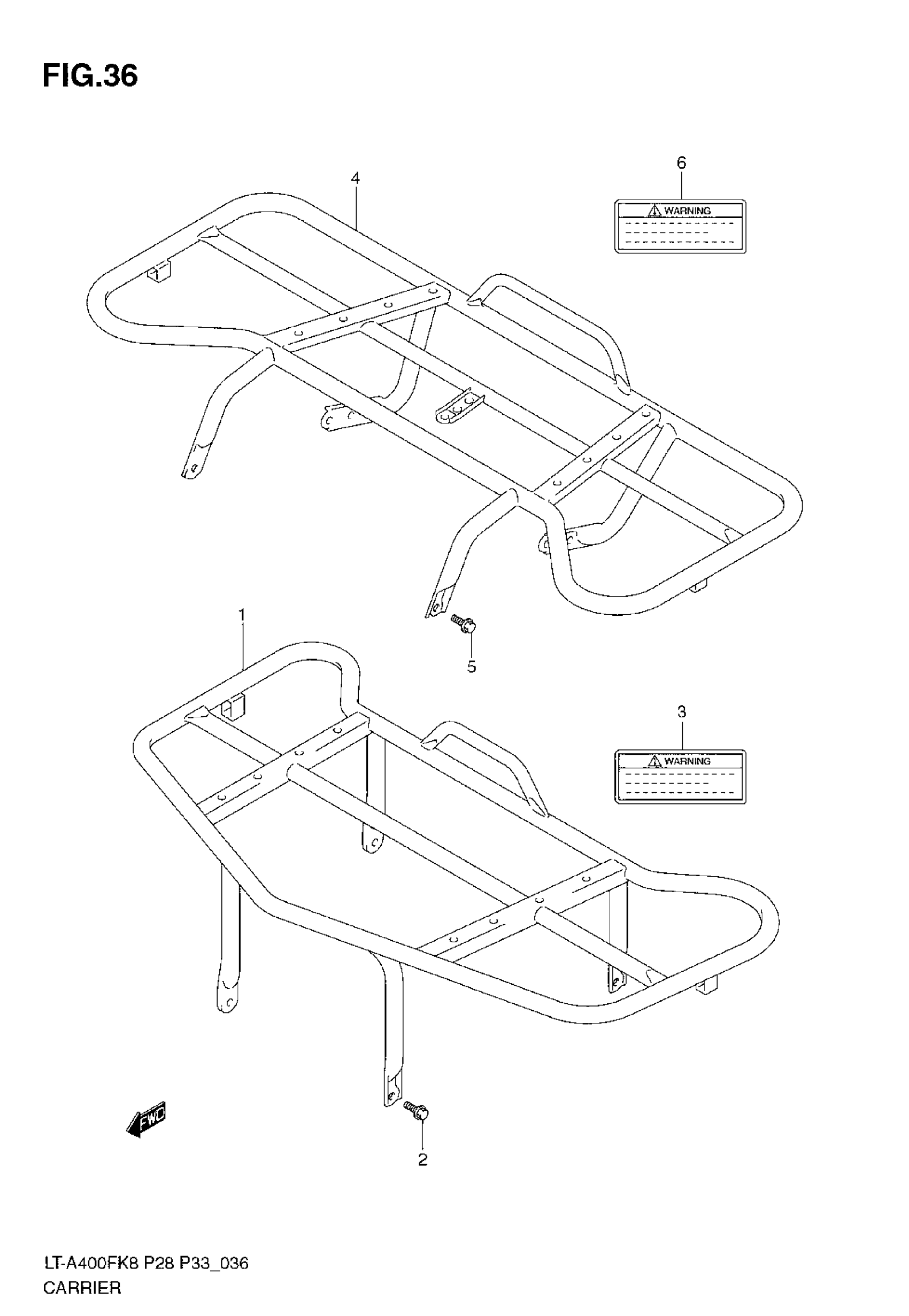

Suzuki LT-A400F (2009) CARRIER Diagram

#

Description
Price

1

CARRIER,FRONT(B This part replaces 46410-27H00-019.

46410-27H01-019

$321.88

2

BOLT (8X16)

01550-0816A

$2.38

3

LABEL,FRONT CAR | MODEL K8 This part replaces 68381-19B00.

68381-19B01

$6.12

3

LABEL, FRONT | MODEL K9

68381-31G00

$10.48

3

LABEL,WARNING F | MODEL K8 E28 This part replaces 68381-19B20.

68381-19B21

Unavailable

3

LABEL, FRONT | MODEL K9 E28

68381-31G10

$5.88

4

CARRIER,REAR This part replaces 46310-27H00-019.

46310-27H01-019

$410.18

5

BOLT

09103-08441

$1.77

6

LABEL,REAR CARR | MODEL K8 This part replaces 68391-19B00.

68391-19B01

$6.32

6

LABEL, REAR | MODEL K9

68385-31G00

Unavailable

6

LABEL, REAR | MODEL K8 E28

68391-19B20

Unavailable

6

LABEL, REAR | MODEL K9 E28

68385-31G10

Unavailable
