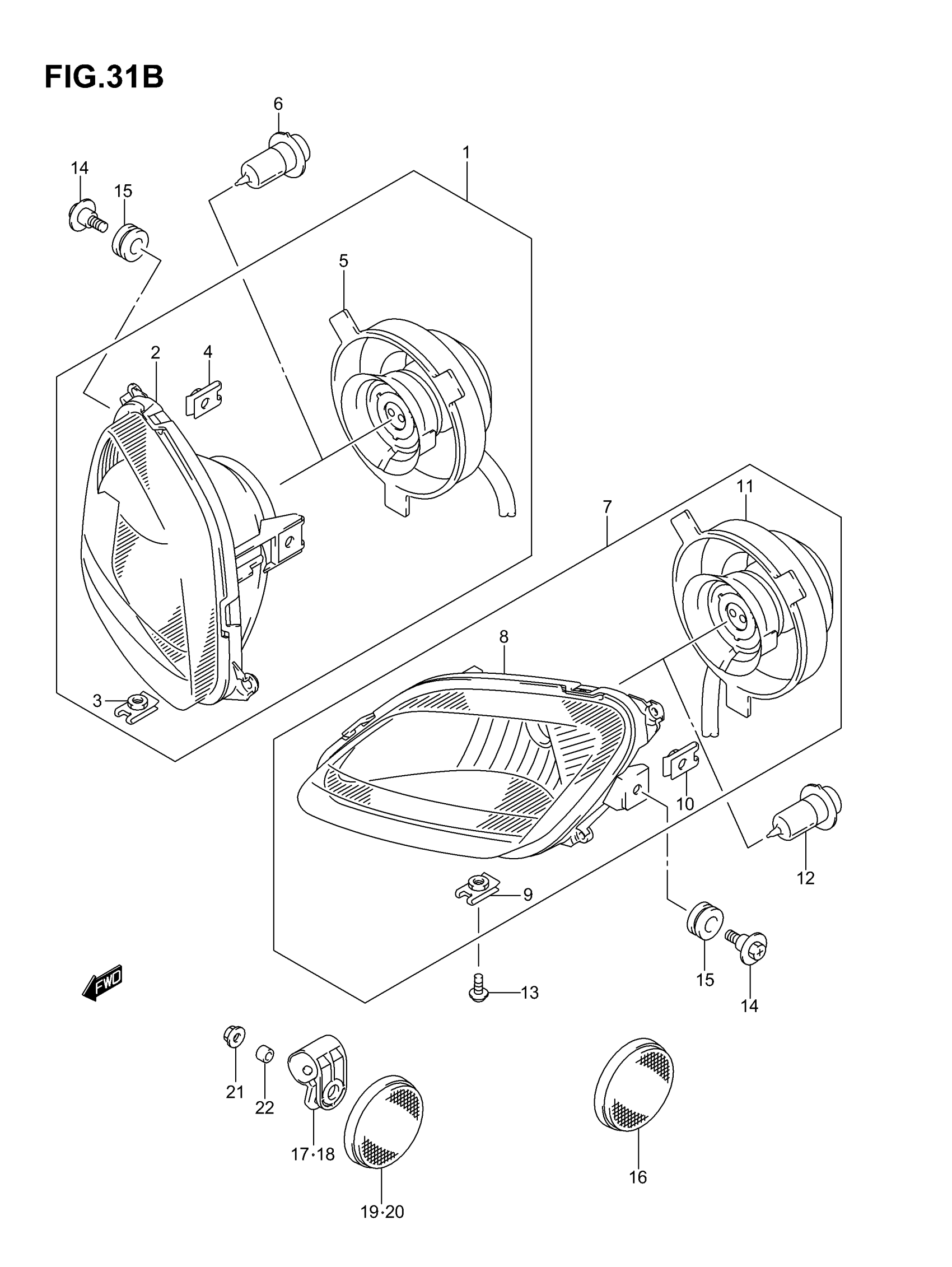

Find the part on the Headlamp diagram for your 2007 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A400F Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY, LH | FOR 019,YT9,YLG,YKL,YDH,YLZ; Includes Item(s) 2 - 5

35100-05G60-999

1
Out of stock

2

UNIT, RH

35121-03G00

1
Out of stock

3

NUT (M5)

35157-05G50

1
Out of stock

4

NUT (M6)

35157-05G90

2
Out of stock

5

CORD ASSY

35171-05GR0

1
Out of stock

6

BULB (12V,30/30W)

09471-12093

1
Out of stock

7

HEADLAMP ASSY, LH | FOR 019,YT9,YLG,YKL,YDH,YLZ; Includes Item(s) 8 - 11

35300-05G60-999

1
Out of stock

8

UNIT, LH

35321-03G00

1
Out of stock

9

NUT (M5)

35157-05G50

2
Out of stock

10

NUT (M6)

35157-05G90

2
Out of stock

11

CORD ASSY

35171-05GL0

1
Out of stock

12

BULB (12V,30/30W)

09471-12093

1
Out of stock

13

SCREW, ADJUST (5X16)

09136-05046

2
Out of stock

14

SCREW, HEADLAMP

09139-06118

4
Out of stock

15

CUSHION

09320-10501

4
Out of stock

16

REFLEX-REFLECTOR ASSY, FR | MODEL K6 E28

35950-14A00

2
Out of stock

17

BRACKET, RR SIDE, R | MODEL K7 E28

35656-03G00

—
Out of stock

18

BRACKET, RR SIDE, L | MODEL K7 E28

35656-03G00

—
Out of stock

19

REFLEX REFLECTOR, FR, R | MODEL K7 E28

35950-14A20

1
Out of stock

20

REFLEX REFLECTOR, FR, L | MODEL K7 E28

35950-14A20

1
Out of stock

21

NUT | MODEL K7 E28 This part replaces 09159-05044.

09159-05049

2
Out of stock

22

SPACER (5.5X9.5X6.5) | MODEL K7 E28

09180-05053

2
Out of stock
