2007 Suzuki LT-A400F Headlamp Diagram

← All diagrams

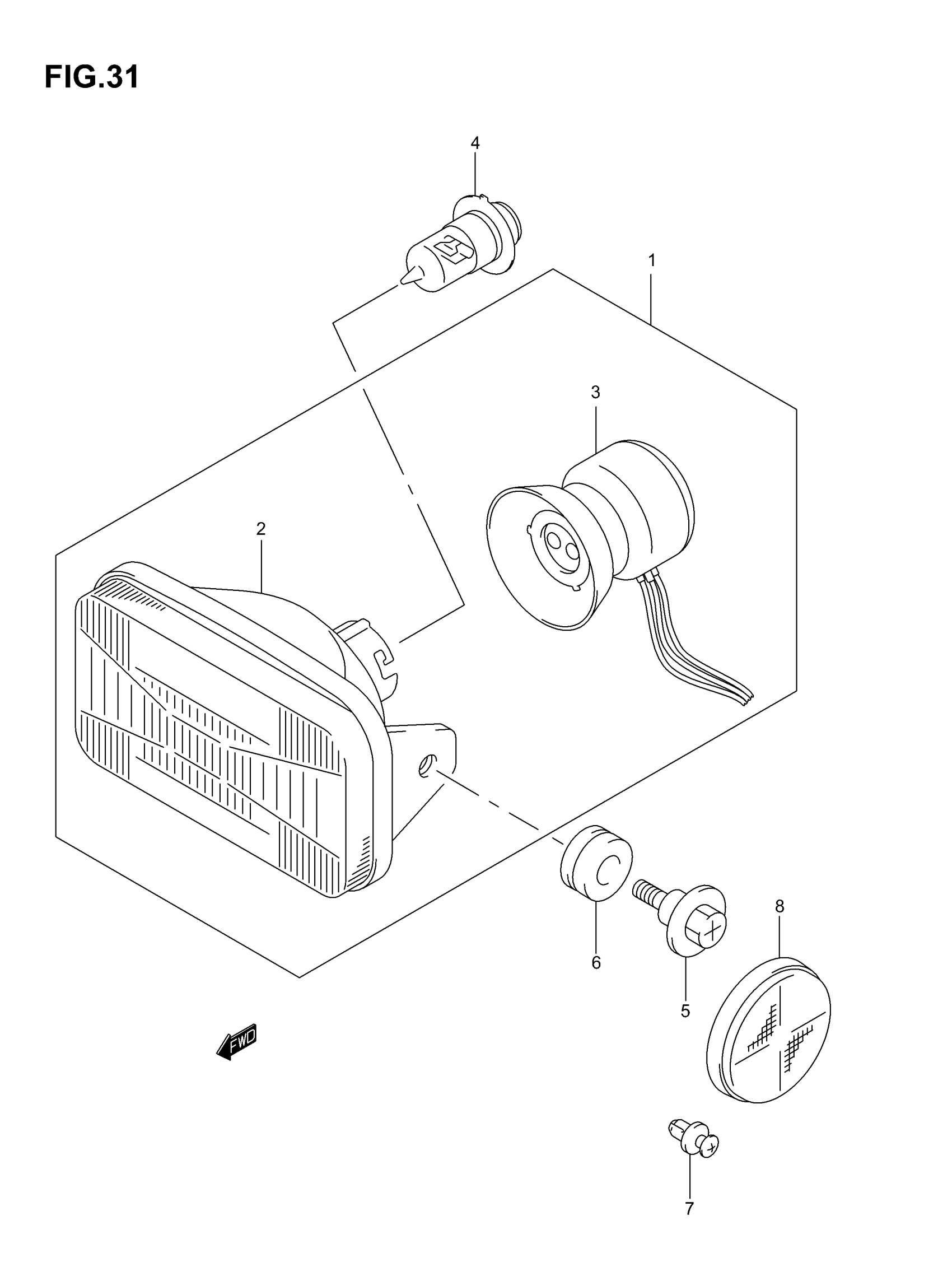

Find the part on the Headlamp diagram for your 2007 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A400F Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 3

35100-38F30-999

2
Out of stock

2

UNIT ASSY

35121-38F30

2
Out of stock

3

SOCKET, HEADLAMP

35171-38F30

2
Out of stock

4

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

2
Out of stock

5

SCREW

09139-06118

4
Out of stock

6

CUSHION

09320-10501

4
Out of stock

7

CLIP (BLACK)

09409-06322-5PK

4
Out of stock

8

REFLEX-REFLECTOR ASSY, FR SIDE | E28

35950-14A00

2
Out of stock
