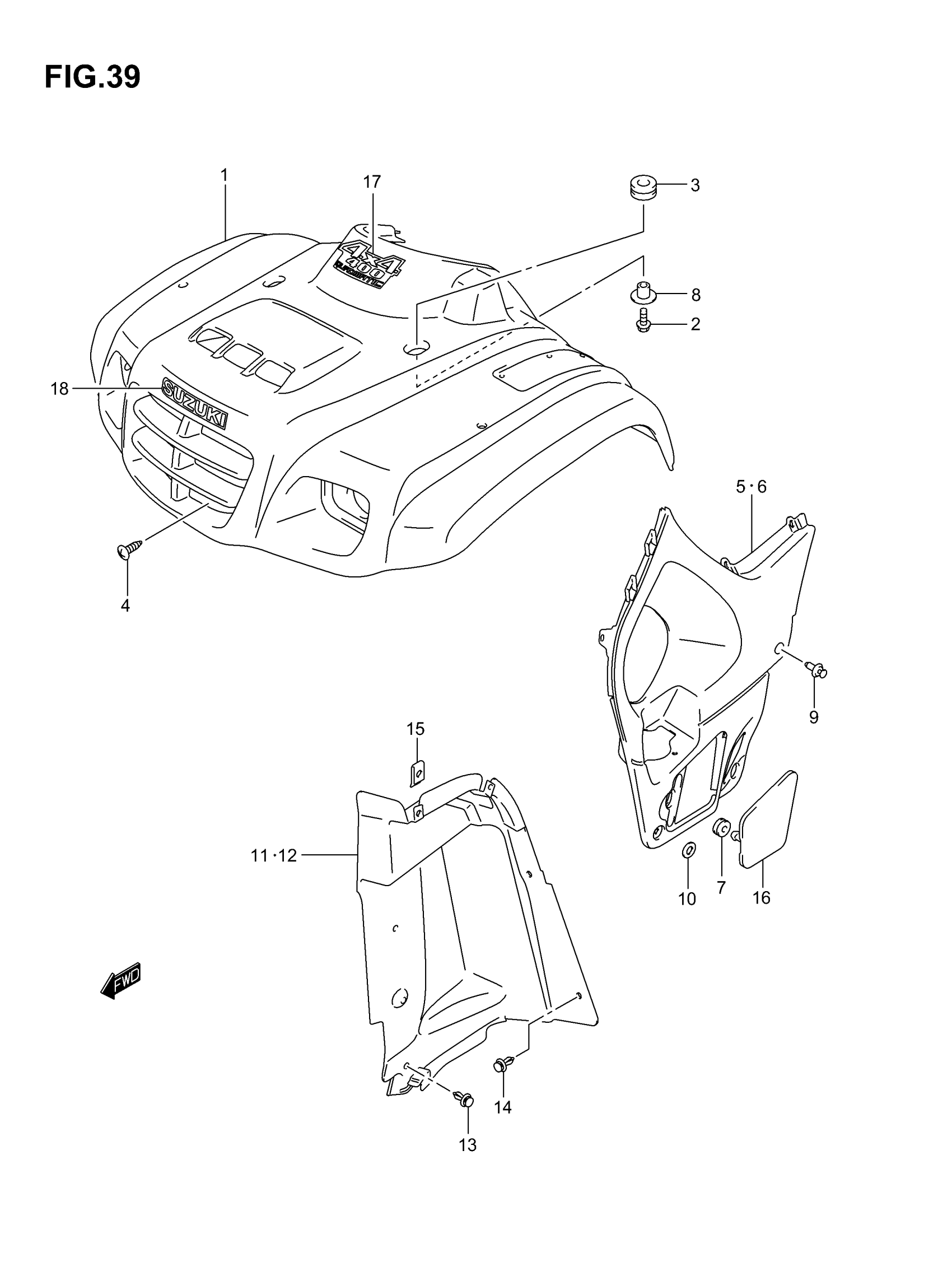

Suzuki LT-A400F (2007) FRONT FENDER (MODEL K3) Diagram

#

Description
Price

1

FENDER,FRONT | %F.NO.5SAAK46K3X102000 This part replaces 53111-38F00-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT | F.NO.5SAAK46K3X102001% This part replaces 53111-38F20-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT | %F.NO.5SAAK46K3X102000 This part replaces 53111-38F00-YT9.

53111-38F32-YT9

Unavailable

1

FENDER,FRONT | F.NO.5SAAK46K3X102001% This part replaces 53111-38F20-YT9.

53111-38F32-YT9

Unavailable

2

BOLT | %F.NO.5SAAK46K3X102000 This part replaces 01550-06303.

01550-0630A

$2.32

2

BOLT | F.NO.5SAAK46K3X102001% This part replaces 01550-06253.

01550-0625A

$1.97

3

CUSHION | %F.NO.5SAAK46K3X102000

53145-38F00

$7.56

3

CUSHION (11.5X32X12.2) | F.NO.5SAAK46K3X102001% This part replaces 09320-11019.

09320-11021

$4.17

4

SCREW, CENTER

09139-06083

$2.26

5

COVER, SIDE RH (BLACK)

53112-38F00-291

$53.39

6

COVER, SIDE LH (BLACK)

53122-38F00-291

$62.57

7

CUSHION, LH

09320-08018

$3.04

8

SPACER | %F.NO.5SAAK46K3X102000 This part replaces 53275-38F00.

53275-38F0V

$12.82

8

WASHER | F.NO.5SAAK46K3X102001%

09169-06074

$7.95

9

CLIP, INNER

09409-07333

$2.31

10

WASHER, FOOTREST SIDE This part replaces 53341-38F00.

53341-38F01

$3.26

11

MUD FLAP,FENDER This part replaces 53411-38F00.

53411-38F02

$45.68

12

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

$104.63

13

CLIP, SIDE FRONT

09409-08335

$2.47

14

CLIP, SIDE

09409-07333

$2.31

15

NUT, INNER

09148-05038

$1.97

16

LID (BLACK)

53123-38F00-291

Unavailable

17

EMBLEM, FRONT

68151-38F30-JY5

Unavailable

18

EMBLEM, FRONT LOWER | FOR YT8

68174-35B00-HV6

$12.97

18

EMBLEM, FRONT LOWER | FOR YT9

68174-35B00-HV5

Unavailable
