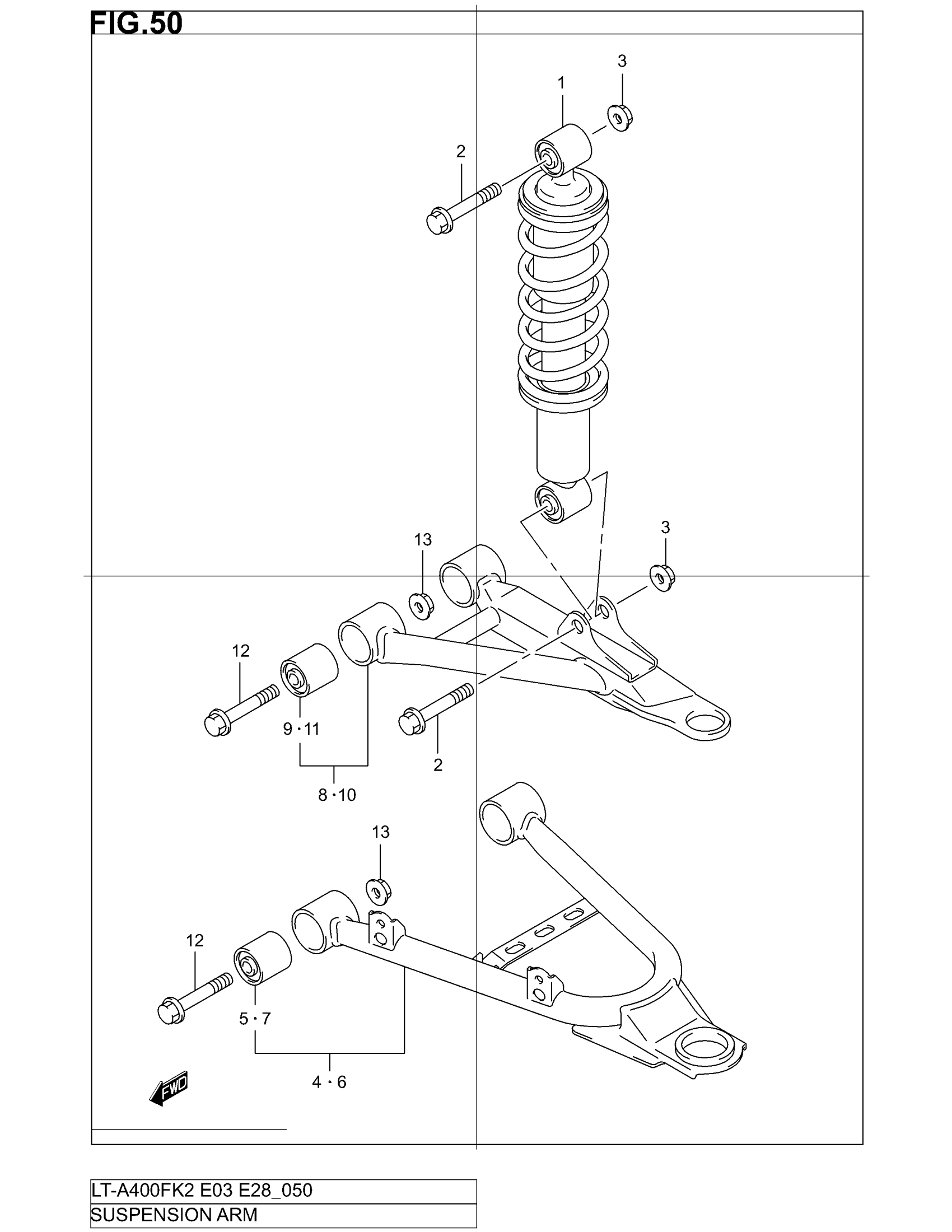

Suzuki LT-A400F (2002) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-38F10-019

Unavailable

2

BOLT (10X48)

09103-10126

$4.50

3

NUT This part replaces 08319-31103.

08319-3110A

$2.73

4

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 5 This part replaces 52410-38820.

52410-38840

Unavailable

5

BUSH (10X35.1X38)

09319-10055

$21.02

6

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 7 This part replaces 52420-38820.

52420-38840

$356.48

7

BUSH (10X35.1X38)

09319-10055

$21.02

8

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 9 This part replaces 52430-38820.

52430-38830

$322.60

9

BUSH (10X35.1X38)

09319-10055

$21.02

10

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 11 This part replaces 52440-38820.

52440-38830

$322.60

11

BUSH (10X35.1X38)

09319-10055

$21.02

12

BOLT (10X60)

09103-10301

$5.98

13

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
