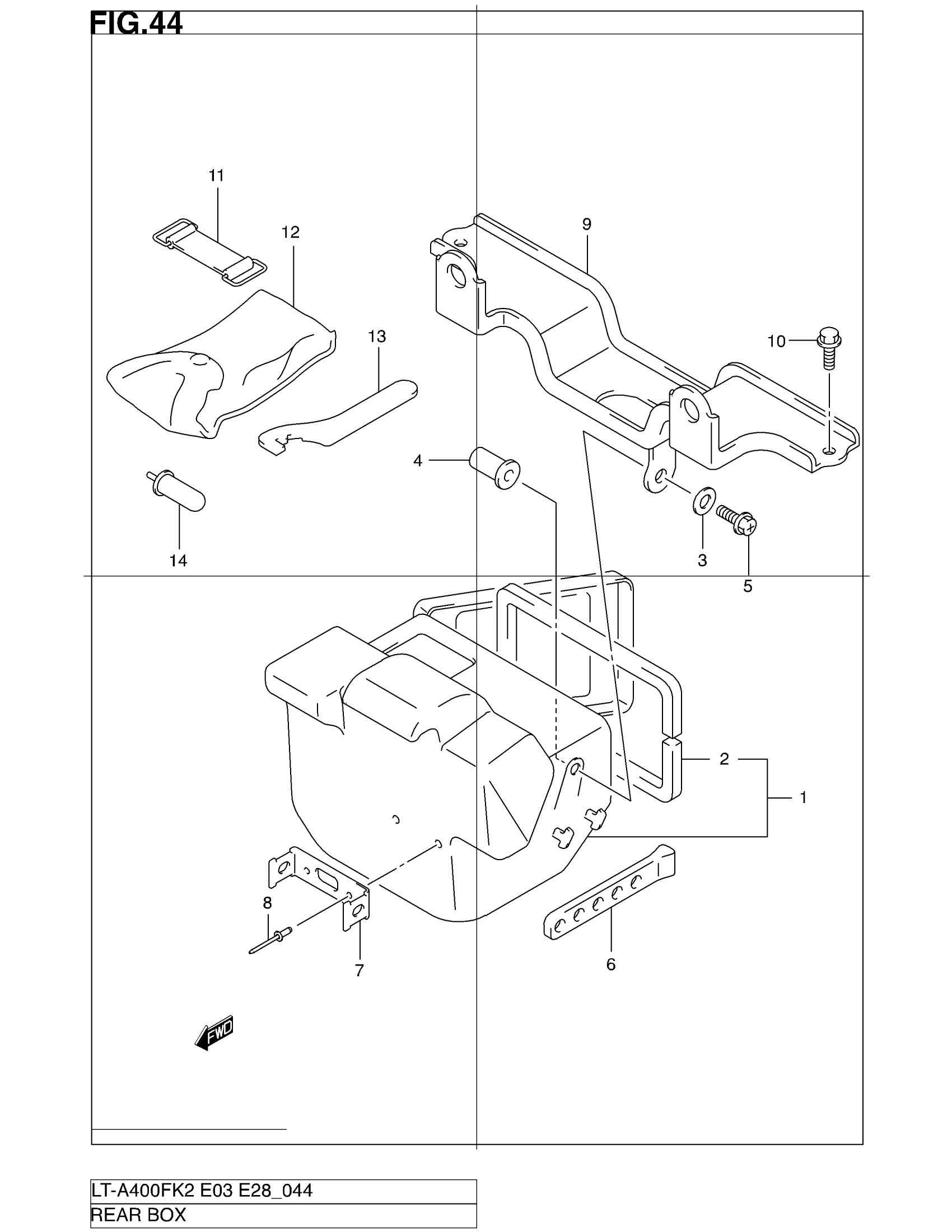

Suzuki LT-A400F (2002) REAR BOX Diagram

#

Description
Price

1

BOX REAR | Includes Item(s) 2 This part replaces 93110-38FA0.

93110-38FA1

Unavailable

2

MOLDING

93114-38FA0

Unavailable

3

WASHER

09160-05043

$2.30

4

NUT

09159-05019

$7.14

5

SCREW This part replaces 02162-05203.

02162-0520B

$2.62

6

BAND, BOX This part replaces 93191-09F10.

93191-09F11

$12.17

7

PLATE, CDI UNIT This part replaces 47413-38F00.

47413-38F01

Unavailable

8

RIVET

09229-04025

$2.81

9

HOLDER, BOX This part replaces 93140-38F00.

93140-38F02

$45.35

10

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

11

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

12

TOOL ASSY This part replaces 09800-01006.

09800-01017

$31.50

13

CLAMP, WRENCH

09822-00004

$14.43

14

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
