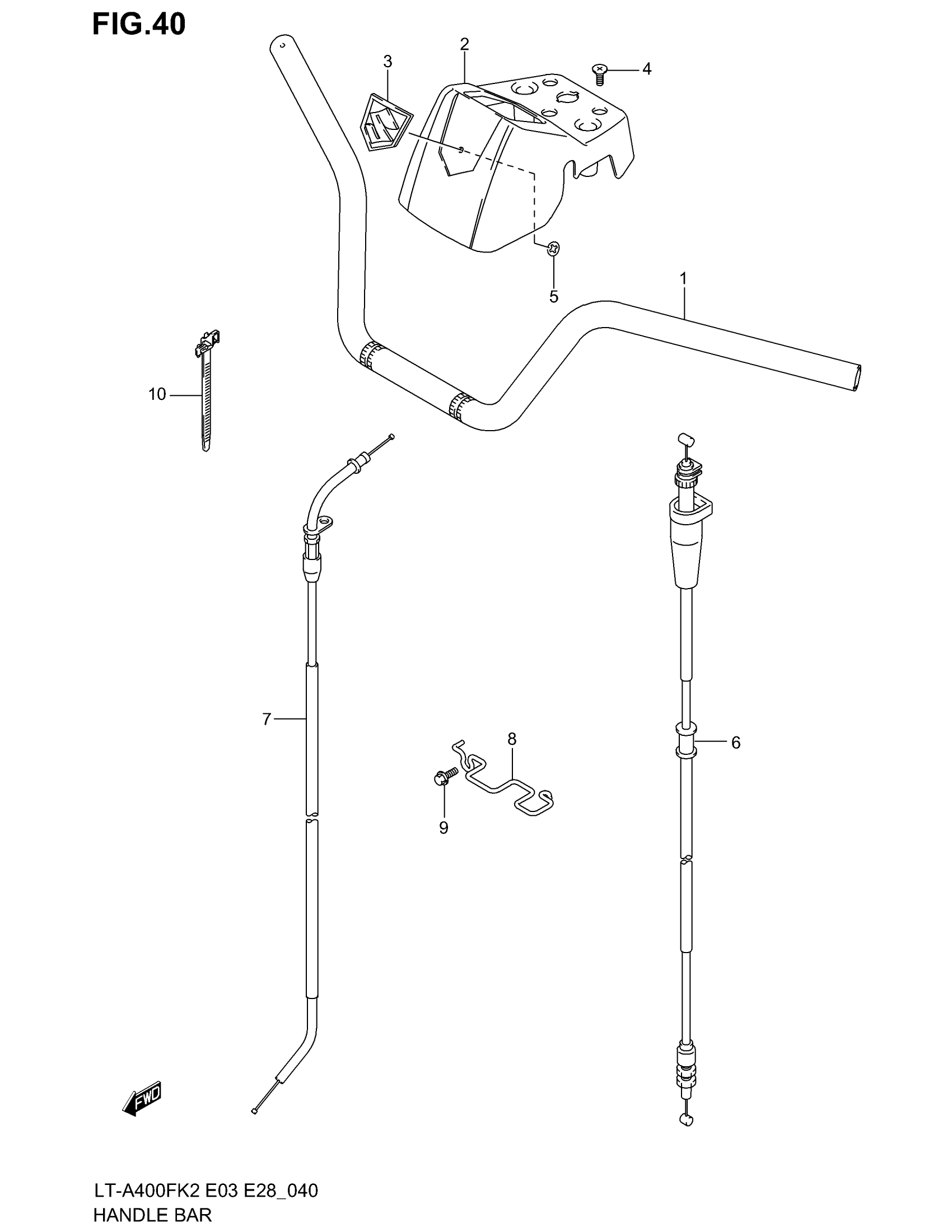

Suzuki LT-A400F (2002) HANDLE BAR Diagram

HANDLE BAR

56111-38F00

Unavailable

COVER, STEERING This part replaces 56171-38F00.

56171-38FB0

$15.78

EMBLEM

68151-38F00

$35.72

SCREW, COVER

09139-06072

$2.70

NUT This part replaces 09148-05006.

09148-05012

$1.75

CABLE ASSY, THROTTLE

58300-38F00

$43.97

CABLE, STARTER

58410-38F00

$49.02

GUIDE, CABLE

58641-38F00

Unavailable

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

CABLE, REAR FINAL LOCK

58670-38F00

Unavailable

CLAMP

09407-12407

Unavailable
